Description

Product Overview

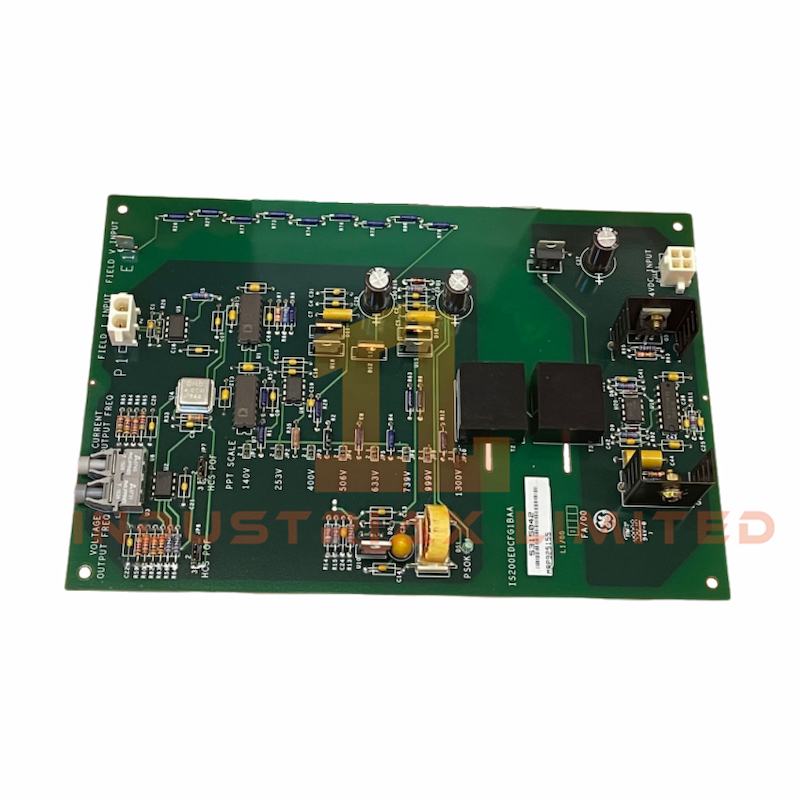

The IS200EDCFG1BAA Exciter DC Feedback Board from GE’s EX2100 series provides precise measurement of field current and voltage at the SCR bridge. It connects to the EISB control panel board using a high-speed fiber-optic link, ensuring strong isolation and noise immunity.

This board uses two fiber channels—one for each signal. You can choose plastic fiber for distances up to 10 meters or hard clad silica fiber for up to 90 meters. The IS200EDCFG1BAA supports 24 Vdc operation and includes a functional revision B for enhanced reliability.

Its compact design and rugged build make it ideal for field-mounted excitation systems in demanding industrial environments.

Technical Specifications

Specification	Details
Manufacturer	GE
Model Number	IS200EDCFG1BAA
Product Series	EX2100
Voltage Input	24 Vdc
Functional Revision	B
Dimensions	18 cm × 12 cm × 12 cm
Weight	1 kg
Fiber Type Options	Plastic (≤10 m), Silica (≤90 m)
Signal Channels	2 (field current and voltage)
Interface	Fiber-optic to EISB board

Application & Compatibility

The IS200EDCFG1BAA board is designed for use in GE’s EX2100 Excitation Control systems. It supports high-speed feedback for generator field regulation and integrates seamlessly with the EISB control board.

Specifications

• Dimensions: 18 cm × 12 cm × 12 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
