Description

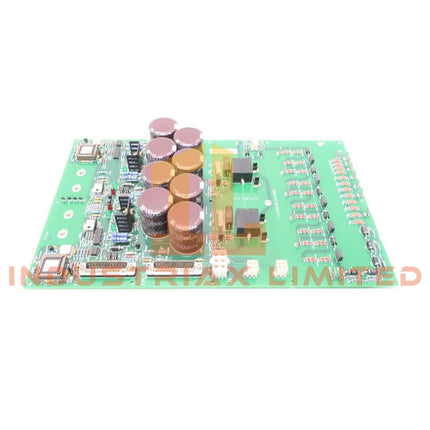

GE IS200EDCFG1AED EX2100 De-Excitation Field Control Board

The GE IS200EDCFG1AED, also cataloged as the IS200EDCFG1AED De-Excitation Field Control Board, operates as a dedicated hardware component for generator field energy discharge control within GE EX2100 excitation control systems. It manages trip inputs, crowbar firing signals, and discharge resistor control circuits.

Hardware Specifications

Parameter	Specification
Model	IS200EDCFG1AED
Brand	GE (General Electric)
Origin	United States
Operating Temp	-30 deg C to +65 deg C
Series	EX2100 Excitation Control System
Product Type	De-Excitation Field Control Boards
Board Type	Exciter De-Excitation Field Control Board
Mounting	VME rack slot, interfaces with EXTB and EDEX boards
Input Signals	Field voltage/current feedback, trip commands
Output Control	Crowbar firing signals, discharge resistor control
Protection Functions	Overvoltage suppression and rapid field energy discharge
Indicators	LED status for trip and discharge circuits
Humidity Range	5%-95% non-condensing
PCB Protection	Conformal coating for dust, moisture, and chemical resistance
Energy Discharge Time	Residual energy discharge within 2 seconds after trip command

Firmware Flash Compatibility and System Integration

The IS200EDCFG1AED provides excitation field discharge control within GE EX2100 architectures. The board receives trip commands and field feedback signals, then controls crowbar activation and discharge resistor circuits to reduce stored generator field energy during shutdown or fault events.

The module interfaces with EXTB and EDEX boards through the excitation control rack structure. Its control logic supports coordinated operation with excitation modules by managing de-excitation sequences and protection responses.

The AED revision includes updated environmental protection characteristics through conformal-coated PCB construction. The board hardware is designed for integration with EX2100 excitation configurations requiring controlled field energy dissipation.

Frequently Asked Questions

Q: What function does the IS200EDCFG1AED perform during a generator trip event?
A: The board controls de-excitation actions by activating field discharge paths and crowbar-related protection circuits to reduce stored field energy.

Q: Which boards interface with the IS200EDCFG1AED?
A: The module interfaces with EXTB and EDEX boards within the GE EX2100 excitation control system.

Q: What protection functions are implemented by this board?
A: The board supports overvoltage suppression, crowbar firing control, and rapid field energy discharge functions.

Field Installation Guidelines

Install the IS200EDCFG1AED in the designated GE EX2100 VME rack slot and verify mechanical alignment before applying system power.

Inspect the rack connector, PCB surface, and terminal interfaces for contamination or physical damage before installation. Maintain cabinet grounding according to excitation system installation requirements.

Route field power conductors separately from low-level control wiring to reduce electromagnetic interference. Connect signal cable shields according to the cabinet grounding design and maintain correct polarity for field feedback and trip command wiring.

Before operation, verify EXTB and EDEX interface connections, LED status indications, and de-excitation circuit response during system commissioning tests.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
