Description

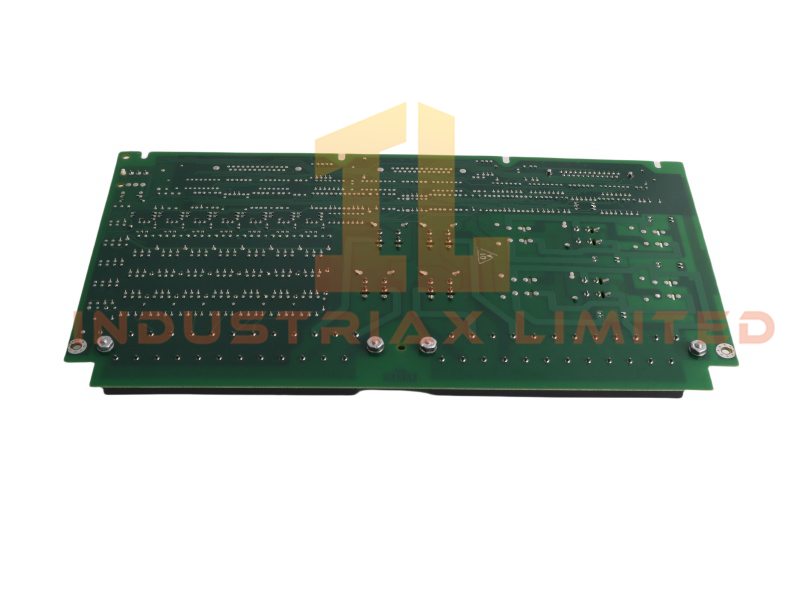

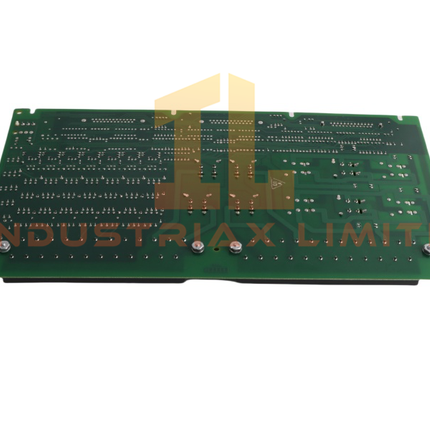

Product Overview

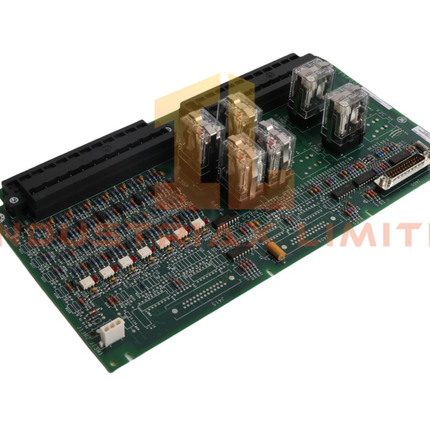

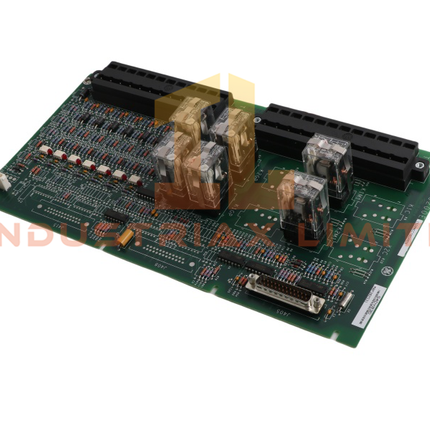

The GE IS200ECTBG2ADE HVAC Control System Board belongs to the EX2100 Excitation Control System, engineered for precise turbine monitoring and control. Its compact 33x17.7x5.5cm dimensions and 0.66kg weight make installation efficient. Unlike the IS200ECTBG1A, which supports redundant mode, the IS200ECTBG2ADE operates exclusively in Simplex Mode, ensuring streamlined functionality.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS200ECTBG2ADE |
| Module Type |
Exciter Direct Current Feedback Board |
| Manufacturer |
GE |
| Product Range |
EX2100 |
| Condition |
Brand New |
| Dimensions |
33 × 17.7 × 5.5 cm |
| Weight |
0.66 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |

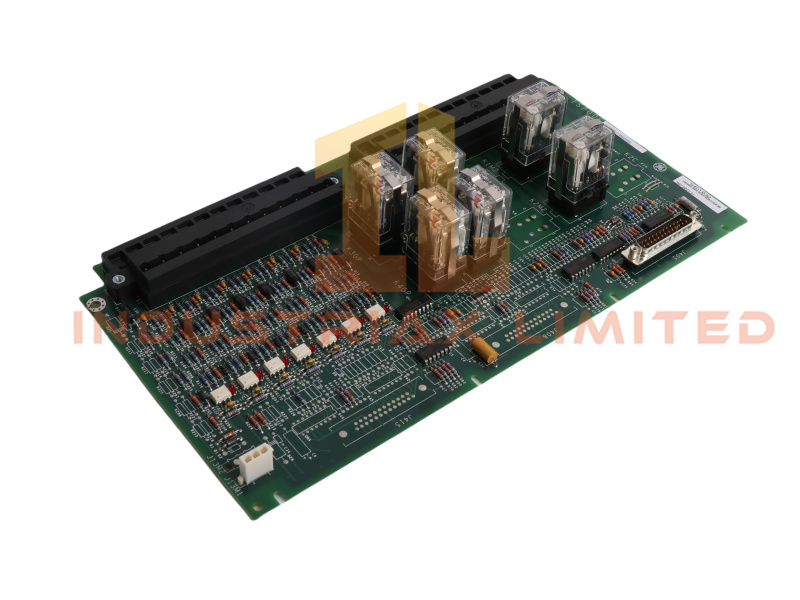

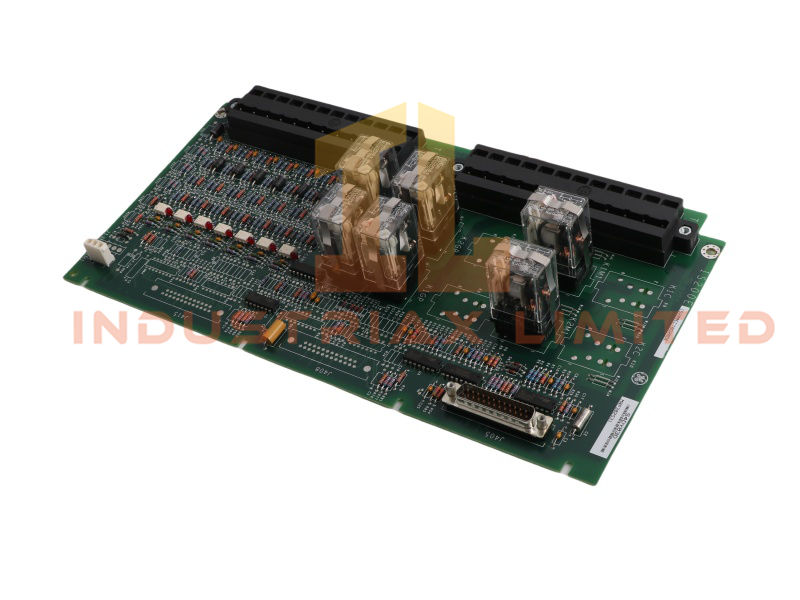

Functional Description
The IS200ECTBG2ADE provides six auxiliary contact inputs, two trip contact outputs, and four Form-C relay outputs. It includes an isolated +70V DC supply for contact wetting, sourced from the EPSM module. The EMIO board manages input and output signals, transmitting them as logic-level gate pulses to the ESEL board.
Compatible I/O boards include EXTB, EACF, and EPCT, which work together to optimize system performance. Monitoring functions track two critical inputs: 52G, indicating generator online status, and 86G, serving as a lockout mechanism for operational safety.
Applications and Compatibility
The GE IS200ECTBG2ADE integrates seamlessly into EX2100 turbine excitation systems. Engineers deploy it in gas and steam turbine plants requiring stable excitation control. Its Simplex Mode operation distinguishes it from the IS200ECTBG1A, offering a streamlined solution for specific configurations.
The IS200ECTBG2ADE enhances turbine stability, efficiency, and safety, making it a vital component for modern power generation infrastructures.
