Description

Overview

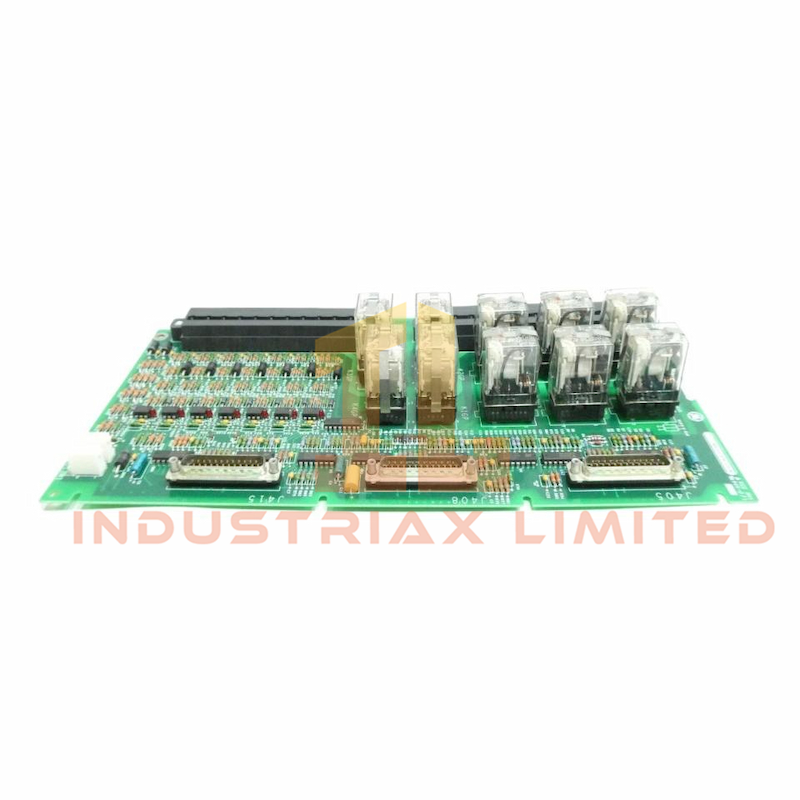

The IS200ECTBG1A Exciter Contact Terminal Board from GE’s EX2100 Excitation Control system provides reliable contact input and output interfacing for redundant control configurations. It includes two trip outputs and four Form-C general-purpose contact outputs, all controlled by the EMIO board.

Technical Specifications

Specification	Detail
Manufacturer	GE
Model Number	IS200ECTBG1A
Product Series	EX2100 Excitation Control System
Function	Excitation contact I/O interface
Voltage	28 Vdc
Current	2 A
Dimensions	330 mm × 178 mm × 30 mm
Weight	0.5 kg
Contact Outputs	2 trip + 4 Form-C
Contact Inputs	6 auxiliary + 52G + 86G
Input Voltage (Wetted)	70 Vdc
Control Integration	EMIO, M1, M2
System Mode	Redundant only

Specifications

• Dimensions: 330 mm × 178 mm × 30 mm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
