Description

Overview

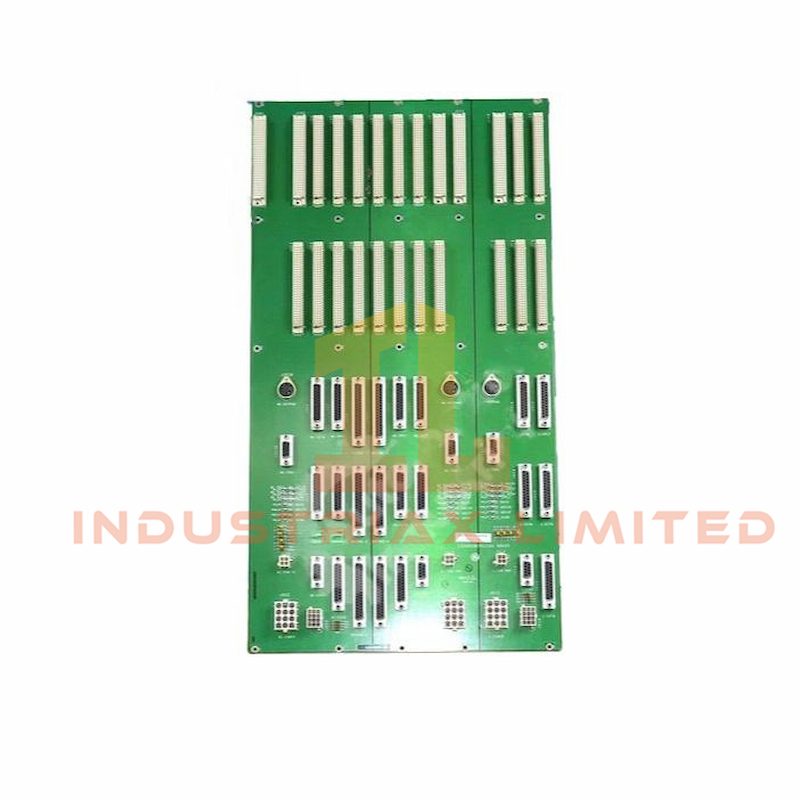

The IS200EBKPG1C Exciter Backplane Control Board from GE’s EX2100 Excitation Control system serves as the central interface for control and I/O boards. It organizes and powers three controller sections—M1, M2, and C—each with independent power supplies and dedicated board slots.

Technical Specifications

Specification	Detail
Manufacturer	GE
Model Number	IS200EBKPG1C
Product Series	EX2100 Excitation Control System
Function	Control board backplane interface
Voltage	24 Vdc
Current	1 A
Dimensions	330 mm × 178 mm × 30 mm
Weight	0.3 kg
Controller Sections	M1, M2, C
DIN Connectors	24 (upper section)
D-SUB Connectors	27 (lower section)
Circular DIN Ports	3
Power Supply Plugs	Three 12-pin connectors
Fan Power Plugs	3
Testpoints	30 integrated
Cooling	Dual top-mounted fans

Specifications

• Dimensions: 330 mm × 178 mm × 30 mm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
