Description
Product Overview

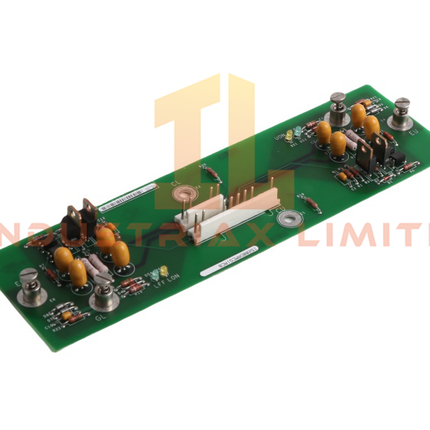

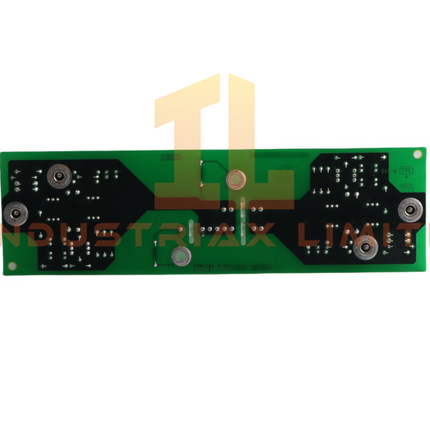

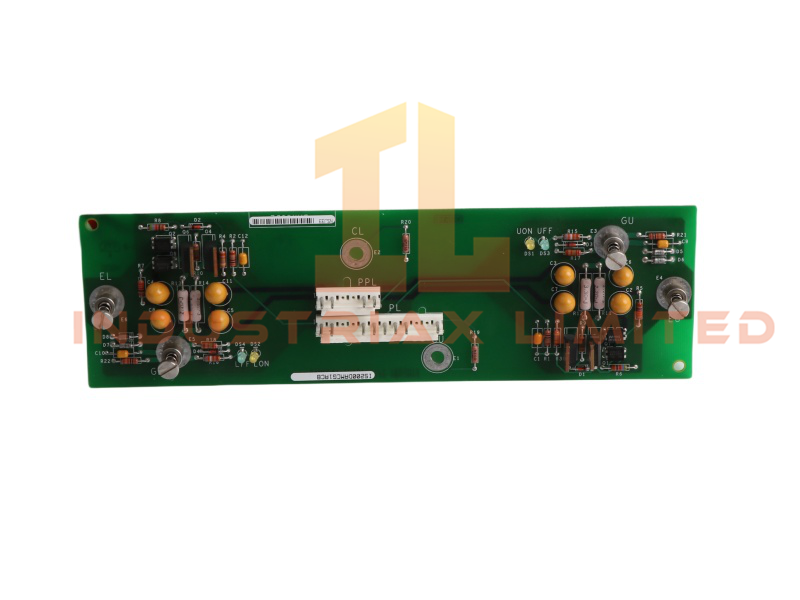

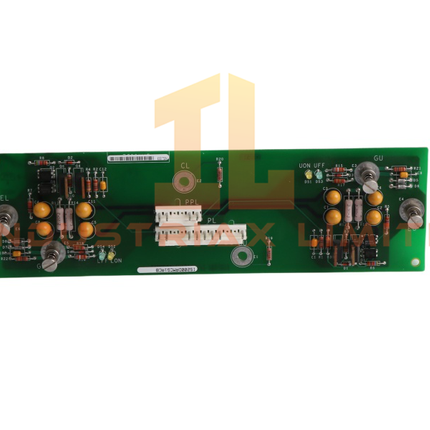

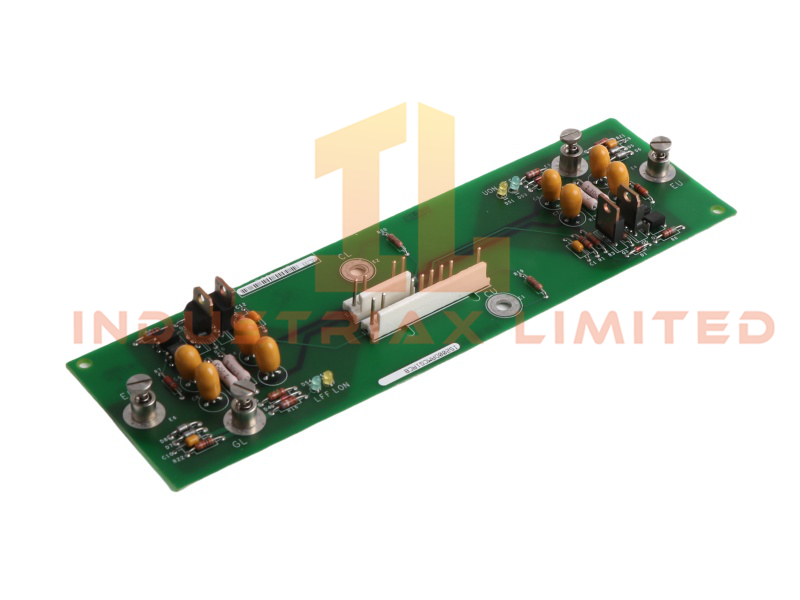

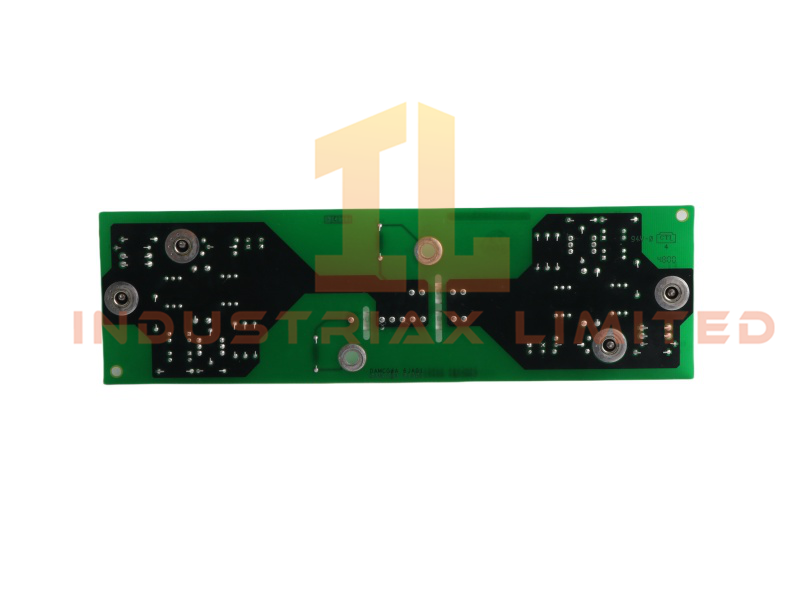

The GE IS200DAMCG1ACB Gate Drive Amplifier and Interface Board belongs to the EX2100 series and supports DCS systems. Engineers use this compact 22.8x6.6x2.2cm board, weighing only 0.08kg, to amplify current and manage IGBT connections in turbine automation. Its straightforward design ensures reliable performance without unnecessary fuses or configurable components.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS200DAMCG1ACB |
| Module Type |
Gate Drive Amplifier and Interface |
| Manufacturer |
GE |
| Product Range |
EX2100 |
| Condition |
Brand New |
| Dimensions |
22.8 × 6.6 × 2.2 cm |
| Weight |
0.08 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System Compatibility |
DCS |
| Communication Service |
Ethernet Router |
| Status |
Active |
Functional Description
The IS200DAMCG1ACB provides the final gate drive stages for the power bridge’s phase leg. It operates with a +15/-7.5V supply input and connects directly to IGBT gate, emitter, and collector terminals. Integration with the IS200BPIA Bridge Personality Interface board ensures seamless communication with the control rack.
Four LED indicators—two green (UON, LON) and two yellow (UFF, LFF)—deliver clear operational feedback. Twelve IGBT connector pins and six gate drive supply pins simplify installation and enhance connectivity. The IS200DAMCG1ACB supports efficient turbine automation by combining compact design with robust functionality.
Applications and Compatibility
The GE IS200DAMCG1ACB Gate Drive Amplifier and Interface Board fits EX2100 and Mark VI turbine control systems. Engineers deploy it in gas and steam turbine plants requiring precise power switching and reliable gate drive amplification.
Its lightweight construction and efficient design make the IS200DAMCG1ACB ideal for industries seeking dependable turbine automation solutions. Compatibility with DCS infrastructures ensures smooth integration into GE industrial control systems.
