Description
Product Overview

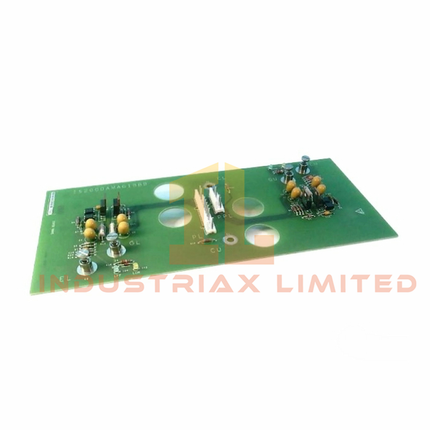

The GE IS200DAMAG1BBB Gate Drive Amplifier/Interface Board is part of the Mark VI Series used in GE Distributed Turbine Control Systems. It connects the control rack to low-voltage IGBT modules, providing final-stage current amplification and status indication.
This board interfaces with both upper and lower legs of the IGBT, typically CM1000HA-28 H Powerrex, and includes connectors for gate, common, and collector signals. Four onboard LEDs—two yellow and two green—indicate the on/off status of the IGBT modules, enhancing visual diagnostics.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200DAMAG1BBB |
| Ordering Code |
IS200DAMAG1B |
| Product Series |
Mark VI |
| Description |
Gate Drive Amplifier/Interface Board |
| Power Rating |
620 frame |
| Dimensions |
18 cm × 12 cm × 3 cm |
| Weight |
0.5 kg |
| LED Indicators |
4 (2 yellow, 2 green) |
| Signal Connectors |
Gate, Common, Collector |
| Origin |
USA |
Key Features
-
Amplifies current in the final stage of gate drive circuits
-
Interfaces directly with upper and lower IGBT phase legs
-
Includes four LEDs to indicate IGBT on/off status clearly
-
Connects to control rack and power switching devices seamlessly
-
Compact 18×12×3 cm size fits standard drive enclosures
-
Lightweight 0.5 kg board simplifies installation and replacement
-
Designed for 620 frame low-voltage drive applications
Applications & Compatibility
The IS200DAMAG1BBB board is ideal for industrial drive systems requiring precise gate control and visual status feedback. It supports Mark VI platforms and integrates with IGBT modules and control racks.
Compatible with:
-
GE Mark VI low-voltage drive systems
-
620 frame drives for gas and steam turbines
-
IGBT modules like CM1000HA-28 H Powerrex
-
Systems needing gate drive amplification and LED diagnostics
