Description
Product Overview

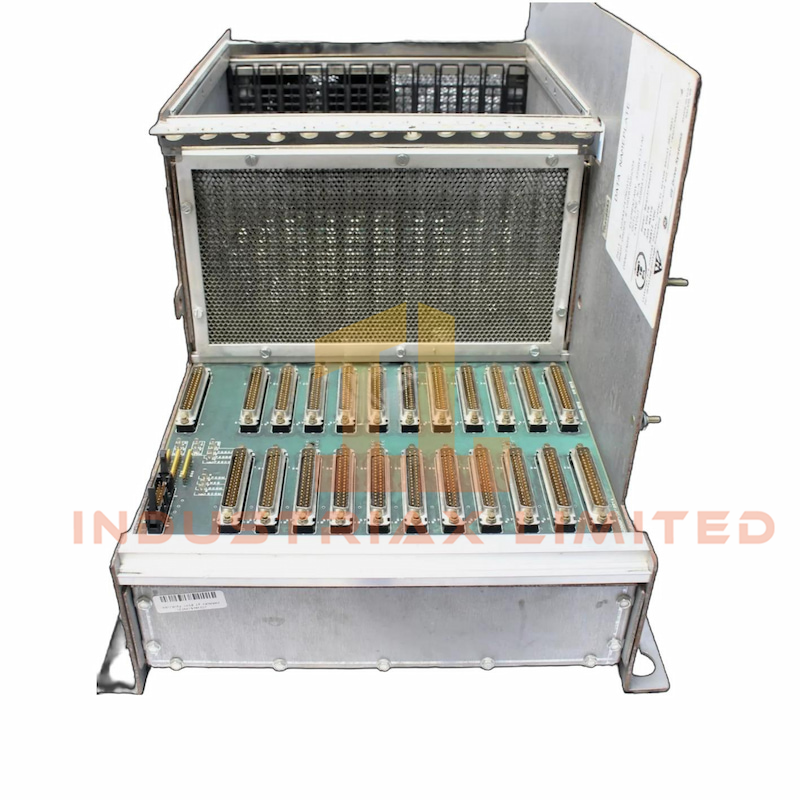

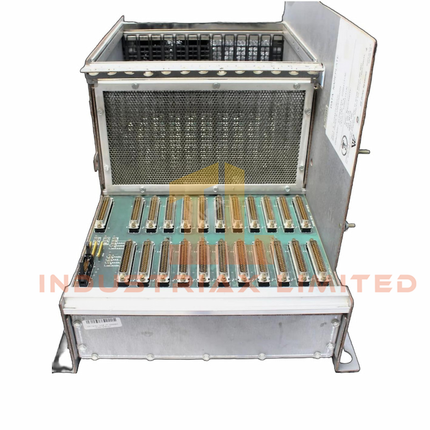

The GE IS200BPVDG1BR1A is a robust control rack engineered for the Mark VI Series used in GE Distributed Turbine Control Systems. It serves as the structural and electrical backbone for simplex or triple modular redundant (TMR) configurations in steam and gas turbine applications.
This rack supports direct I/O interfacing with turbine sensors and actuators, eliminating the need for interposing instrumentation. It ensures reliable speed control, generator synchronization, load regulation, and overspeed protection during turbine operation.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200BPVDG1BR1A |
| Ordering Code |
IS200BPVDG1BR1A |
| Product Series |
Mark VI |
| Description |
Turbine Control Rack |
| Voltage |
24 Vdc |
| Dimensions |
60 cm × 42 cm × 42 cm |
| Weight |
4 kg |
| Control Configuration |
Simplex or TMR |
| I/O Type |
Direct sensor/actuator interface |
| Origin |
USA |
Key Features
-
Supports both simplex and TMR control architectures
-
Interfaces directly with turbine sensors and actuators
-
Eliminates interposing instrumentation for improved reliability
-
Enables speed control, synchronization, and load regulation
-
Provides overspeed protection during load loss conditions
-
Compact 60×42×42 cm rack fits standard industrial enclosures
-
Lightweight 4 kg design simplifies installation and transport
-
Operates at 24 Vdc for consistent power delivery
Applications & Compatibility
The IS200BPVDG1BR1A rack is ideal for turbine control systems requiring modular scalability and high reliability. It integrates seamlessly with Mark VI controllers and supports both local and remote I/O configurations.
Compatible with:
-
GE Mark VI steam and gas turbine platforms
-
Simplex and TMR control systems
-
Electrical generation and process plant applications
-
Systems requiring direct I/O interfacing and rack-mounted control
