Description
Product Overview

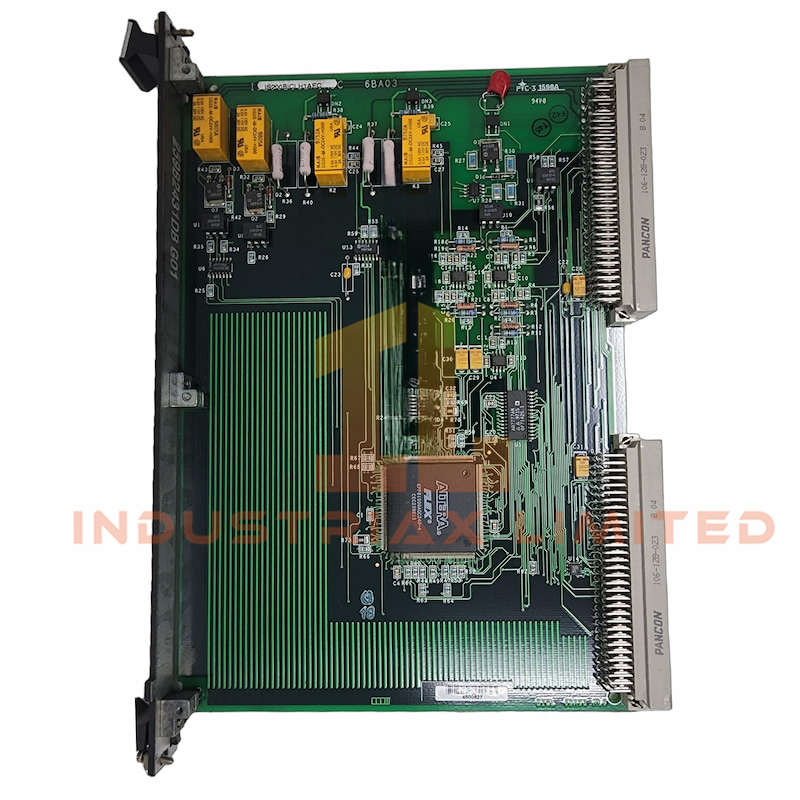

The IS200BICIH1ACA from GE is a Bridge Interface Controller Board designed for Mark VI systems. It controls bridges using IGCT switching devices and mounts in an Innovation Series rack. This board interfaces with the IS200CABP Control Assembly Backplane via P1 and P2 connectors and receives power from the DS200RAPA Rack Power Supply Board.
It does not distribute power to other components but manages gate control and feedback signals from the IS200BPII Bridge Power Interface Board. The front panel includes three connectors—PFBK1, PFBK2, and PSRC—for signal routing and diagnostics.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200BICIH1ACA |
| Ordering Code |
IS200BICIH1A |
| Series |
Mark VI |
| Origin |
USA |
| HS Code |
85389091 |
| Dimensions |
18 cm × 12 cm × 3 cm |
| Weight |
0.8 kg |
| Mounting |
Innovation Series board rack |
| Power Source |
Supplied via CABP from DS200RAPA
|
| Front Panel Ports |
PFBK1, PFBK2, PSRC
|
| Feedback Interface |
44-pin high-density twisted pair via GGXI
|
Installation & Configuration
Install the IS200BICIH1ACA in the designated rack slot and connect it to CABP using P1 and P2 backplane connectors. Ensure power flows from DS200RAPA through the CABP interface. Use PFBK1 to receive feedback from the first bridge or half-cell series via the IS200GGXI board.
This board does not supply power externally and focuses solely on gate control and signal conditioning for bridge operations.
Applications & Compatibility
The IS200BICIH1ACA is ideal for high-power industrial systems using IGCT-based bridge configurations. It integrates with Mark VI architecture and supports components like IS200CABP, DS200RAPA, IS200BPII, and IS200GGXI.
Use this board in environments requiring precise gate control, signal feedback conditioning, and modular rack-based integration.
