Description
Product Overview

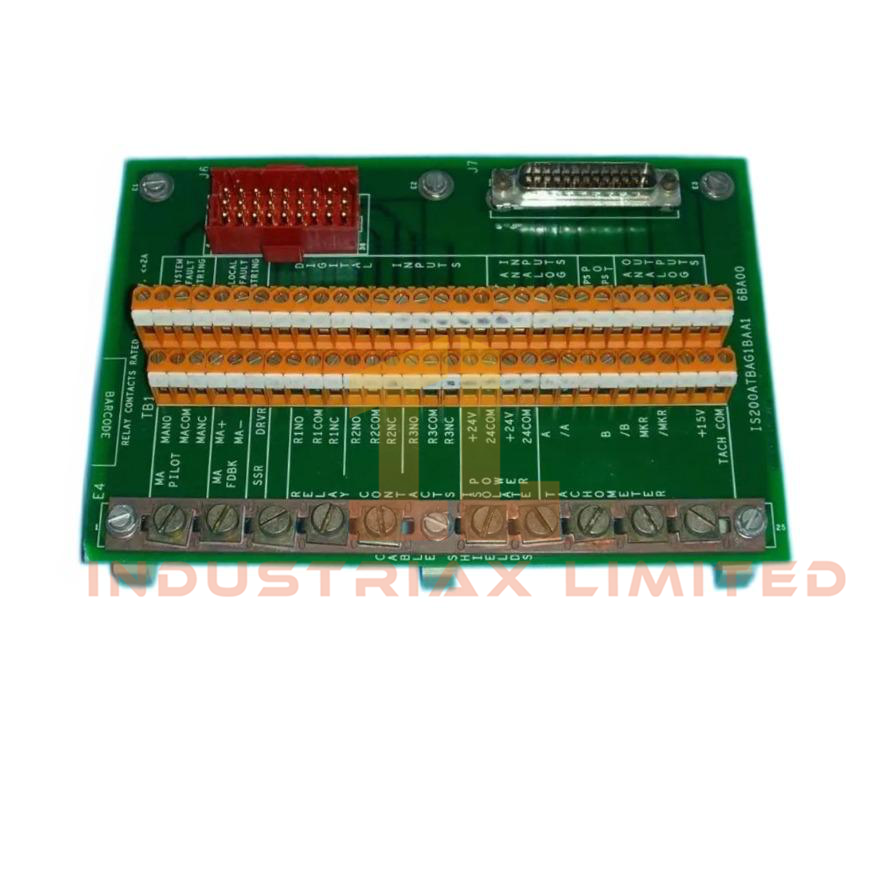

The GE IS200ATBAG1BAA1 Application I/O Terminal Board is part of the Mark VI Series, designed for turbine control systems within the Speedtronic family. This board connects directly to the Control Assembly Backplane Board (CABP) using J6 and J7 connectors, offering structured access to system signals.
It features one 60-position terminal block and two 30-connector lines for fault strings, analog/digital I/O, relay contacts, and tachometer signals. The board mounts securely using nine screws and washers, ensuring stable installation in industrial environments.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200ATBAG1BAA1 |
| Ordering Code |
IS200ATBAG1B |
| Product Series |
Mark VI |
| Description |
Application I/O Terminal Board |
| Origin |
USA |
| HS Code |
85389091 |
| Dimensions |
26 cm × 18 cm × 3 cm |
| Weight |
0.8 kg |
| Terminal Block Positions |
60 |
| Connector Types |
J6 (36-pin), J7 (25-pin) |
| Mounting Hardware |
9 screws with washers |
Key Features
-
Connects to CABP board via J6 and J7 vertical male pin connectors
-
Offers 60 terminal block positions for structured signal routing
-
Includes labeled blocks for fault strings, analog/digital I/O, and SSRs
-
Provides cable shielding and isolated power sections for signal integrity
-
Installs securely with nine screws and washers into designated standoffs
-
Compact 26×18×3 cm size fits standard Mark VI control racks
-
Lightweight 0.8 kg design ensures easy handling and integration
Applications & Compatibility
The IS200ATBAG1BAA1 board supports turbine management systems requiring organized signal interfacing. It is ideal for Mark VI platforms used in gas and steam turbine control.
Compatible with:
-
Mark VI Speedtronic control systems
-
CABP backplane boards with J6/J7 signal routing
-
Industrial setups needing analog and digital I/O terminal access
-
Systems requiring fault string and tachometer signal integration
