Description
Overview
The IS200AEPCH1ABC gas turbine card from General Electric is a compact PCB component built for EX2100 and Speedtronic Mark VI control systems. It manages timing, signal processing, and communication tasks essential for turbine automation.

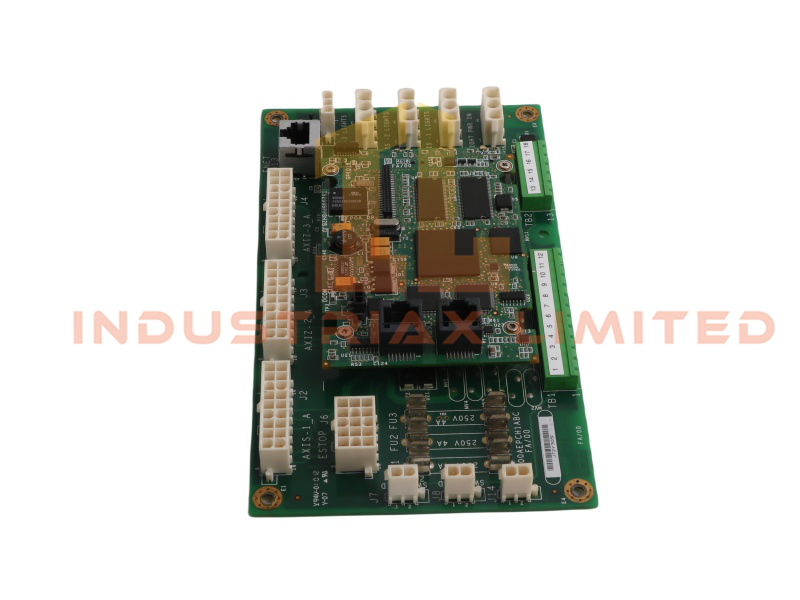

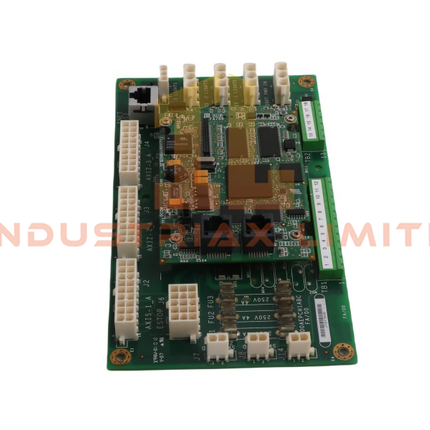

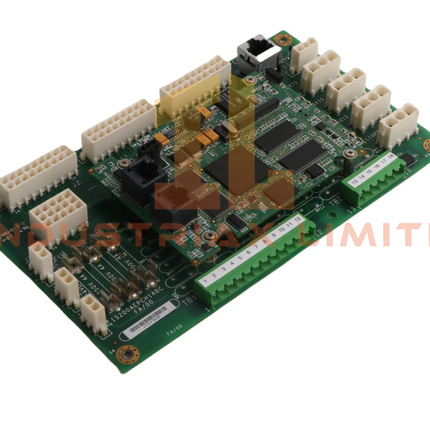

This 20.2×11.7×3 cm board weighs 0.22 kg and features a central auxiliary card mounted with standoffs. The IS200AEPCH1ABC includes a field-programmable gate array (FPGA), female connectors, and multiple integrated circuits for high-speed control and system coordination.
Technical Specifications
| Specification |
Details |
| Model Number |
IS200AEPCH1ABC |
| Module Type |
Gas Turbine Card |
| Manufacturer |
General Electric (GE) |
| Series |
EX2100 / Mark VI |
| System |
DCS |
| Dimensions |
20.2 × 11.7 × 3 cm |
| Weight |
0.22 kg |
| Auxiliary Board |
Mounted with standoffs |
| Key Components |
FPGA, ICs, capacitors, diodes |
| Connectors |
Female headers, terminal strips |
| Identification |
Barcodes, DCOM, FA/00 markings |
| Fuses |
3 integrated |
| Mounting |
Drilled holes with conductive rings |
| Communication |
Ethernet Router |
| HS Code |
8537101190 |
| Lead Time |
In Stock |
| Minimum Order |
1 Unit |
| Origin |
USA |
| Status |
Active |
Features & Performance
-
The IS200AEPCH1ABC supports real-time turbine control through high-speed FPGA processing.
-
Its auxiliary board includes essential logic components for signal conditioning and system timing.
-
Conductive mounting holes improve electrical grounding and mechanical stability.
-
Barcodes and reference designations simplify maintenance and part identification.
Applications & Compatibility
The IS200AEPCH1ABC integrates into GE EX2100 and Mark VI turbine control systems. It supports steam and gas turbine automation, ensuring reliable performance in power generation and industrial energy environments.
Compatible with Speedtronic architecture, the IS200AEPCH1ABC enhances system responsiveness, diagnostics, and long-term reliability.
