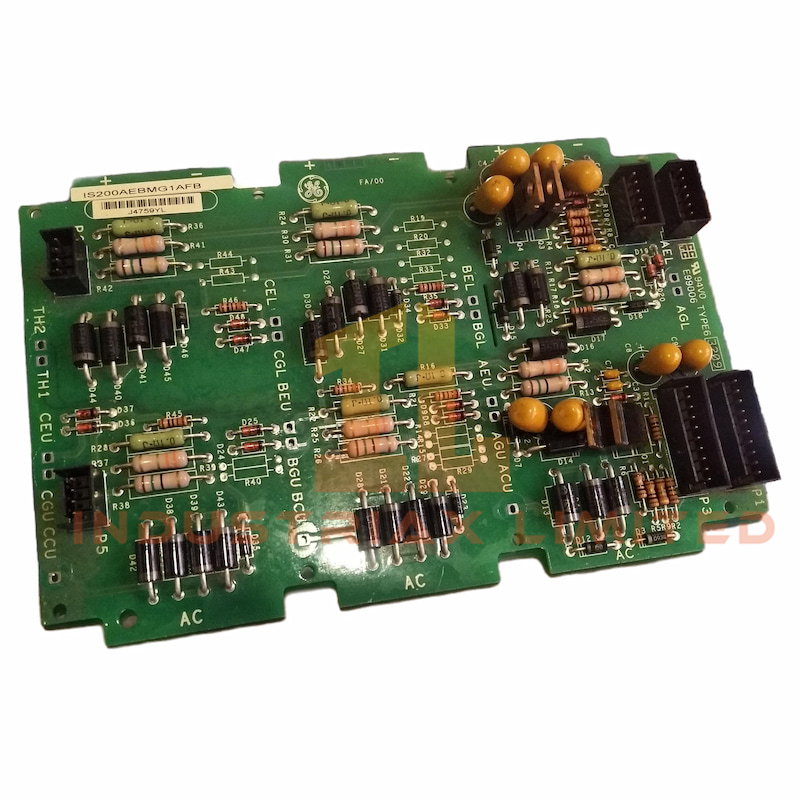

The GE IS200AEBMG1AFB is a high-density circuit board from the Mark VI Series, designed for automatic drive assemblies. Mounted on a carrier frame labeled 1151x122OBQ01, this board integrates advanced components for precise current control and signal routing.
It includes six vertical plug connectors (P1–P6), four transistors, 42 labeled diodes, and over 40 resistors using metal film and other materials. Twelve capacitors provide energy storage across the board. The frame extends beyond the board edges, offering multiple screw mounts and cutouts for secure installation.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200AEBMG1AFB |
| Ordering Code |
IS200AEBMG1AFB |
| Product Series |
Mark VI |
| Description |
Circuit Board |
| Female Ports |
P1 to P6 |
| Diodes |
42 (labeled D1–D42) |
| Capacitors |
12 total |
| Transistors |
4 |
| Resistors |
40+ (metal film and others) |
| Dimensions |
26 cm × 18 cm × 3 cm |
| Weight |
0.8 kg |
| Mounting Frame |
1151x122OBQ01 |
Key Features
-
Offers six plug connectors for flexible signal interfacing
-
Includes 42 directional diodes for current flow control
-
Provides twelve capacitors for onboard energy storage
-
Uses a carrier frame with screw mounts for rack integration
-
Features labeled reference points including +, –, and AC indicators
-
Compact 26×18×3 cm size fits standard Mark VI enclosures
-
Lightweight 0.8 kg board simplifies handling and installation
Applications & Compatibility
The IS200AEBMG1AFB board supports high-performance drive systems requiring precise current direction and signal management. It is ideal for Mark VI turbine control platforms and industrial automation systems.
Compatible with:
-
GE Mark VI automatic drive assemblies
-
Rack-mounted control systems using carrier frame 1151x122OBQ01
-
Applications needing multi-port signal routing and energy buffering
-
Systems requiring diode-based current direction control
