Product Overview

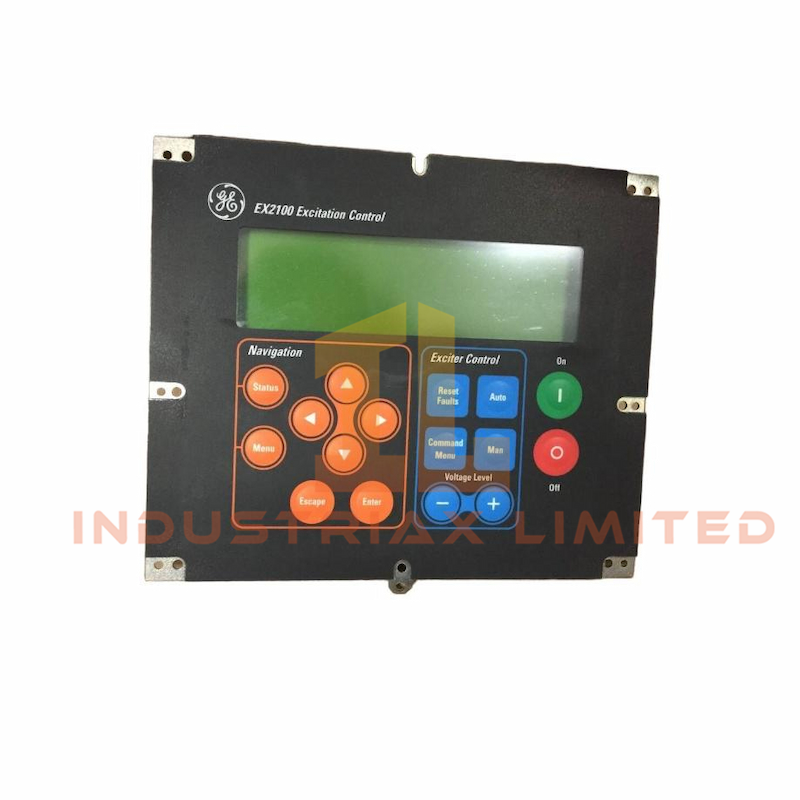

The IC752SPL013 Diagnostic Interface Keypad from GE is a precision operator interface designed for EX2100 excitation control systems. This unit mounts directly to the control cabinet door and provides real-time access to exciter performance metrics and configuration settings.

Operators use membrane-style pushbuttons to navigate menus, control the exciter, and reset faults. The display combines animated graphics with text to deliver intuitive feedback on system status and health.

Key Features

• Real-time monitoring of frequency, voltage, current, and power

• Direct control of exciter start/stop functions

• Menu-driven configuration and fault diagnostics

• Adjustable display contrast and unit settings

• Continuous health and state indicators for exciter status

Technical Specifications

Specification	Details
Manufacturer	GE
Series	EX2100 Excitation Control
Model Number	IC752SPL013
Description	Diagnostic Interface Keypad
Voltage	24 Vdc
Current	10 mA
Dimensions	40 cm × 30 cm × 20 cm
Weight	2 kg
Interface Type	Membrane pushbuttons
Display	Text and animated graphics

Specifications

• Dimensions: 40 cm × 30 cm × 20 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
