Description

Product Description

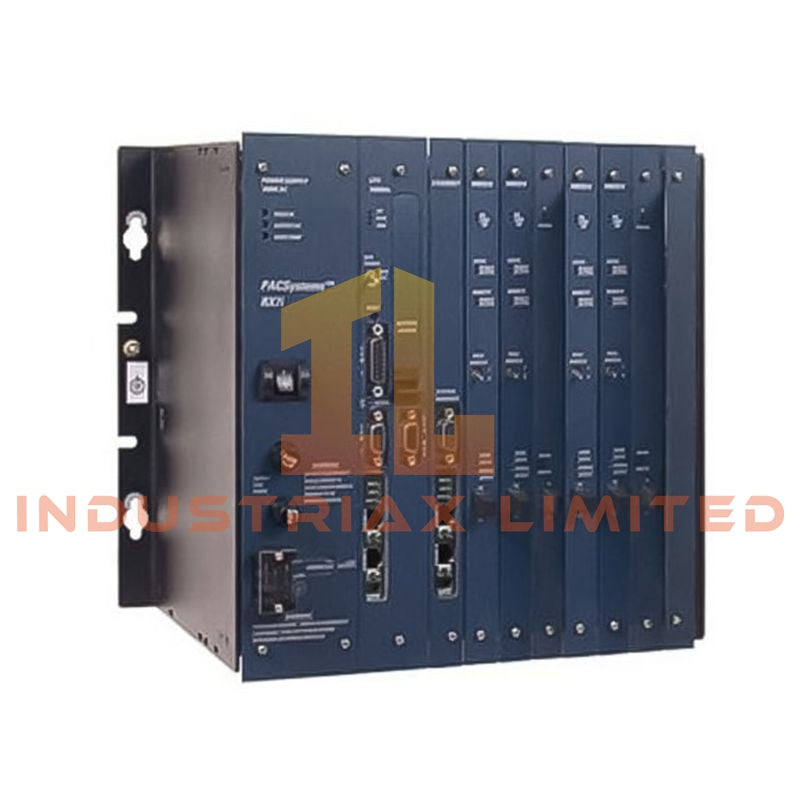

The IC698PSD300 by GE is a high-capacity industrial power supply module engineered for PACSystems RX7i and selected VersaMax racks. Designed to provide stable, regulated DC power, this module supports CPUs, communication modules, and I/O assemblies in demanding industrial applications.

Technical Specifications

Electrical Input Options

• AC Input Version (VersaMax)

• Voltage: 85–264 VAC, 50/60 Hz

• Power Factor: ≥0.95

• Efficiency: Up to 92%

• DC Input Version (RX7i)

• Voltage: 125 VDC nominal (range 100–150 VDC)

• Maximum Current: 4 A at full load

• Low-Voltage DC Input (RX7i)

• Voltage: 18–30 VDC

Output Capabilities

• Single-Output VersaMax Version

• Voltage: 24 VDC

• Current: 10 A (240 W)

• Multi-Output RX7i Version

• +5 VDC: 10 A

• +12 VDC: 2 A

• –12 VDC: 1 A

• Total Output Power: 300 W

• RX7i 125 VDC Input Version

• Outputs: +5 VDC, +24 VDC, +12 VDC auxiliary

• Total Output Power: 300 W

Protection Features

• Overcurrent, overvoltage, and short-circuit protection

• Overtemperature shutdown

• Reverse-polarity protection (DC versions)

• Industrial-grade reliability

Mechanical & Environmental

• Operating Temperature: 0°C to +50°C (AC), 0°C to +60°C (RX7i)

• Storage Temperature: –40°C to +85°C

• Relative Humidity: 5–95% non-condensing

• Cooling: Internal fan or forced-air depending on version

• Hot-Swap Capable: Yes

• Mounting: RX7i or VersaMax racks

Physical Dimensions

• Dimensions: 101.6 × 152.4 × 76.2 mm

• Weight: 4.87 lbs

Applications

• Oil & Gas automation

• Power generation control systems

• Manufacturing process automation

• Mission-critical industrial control networks

FAQ

Q: Can the IC698PSD300 be hot-swapped without shutting down the rack?
A: Yes, all variants support hot-swap operation for uninterrupted system maintenance.

Q: Which output configuration is suitable for high-density I/O systems?
A: The multi-output RX7i version is recommended for racks requiring +5 VDC, +12 VDC, and –12 VDC simultaneously.

Q: Is this module compatible with VersaMax AC and RX7i DC racks?
A: Yes, specific versions are designed for each platform. Ensure correct input type selection.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
