Product Description

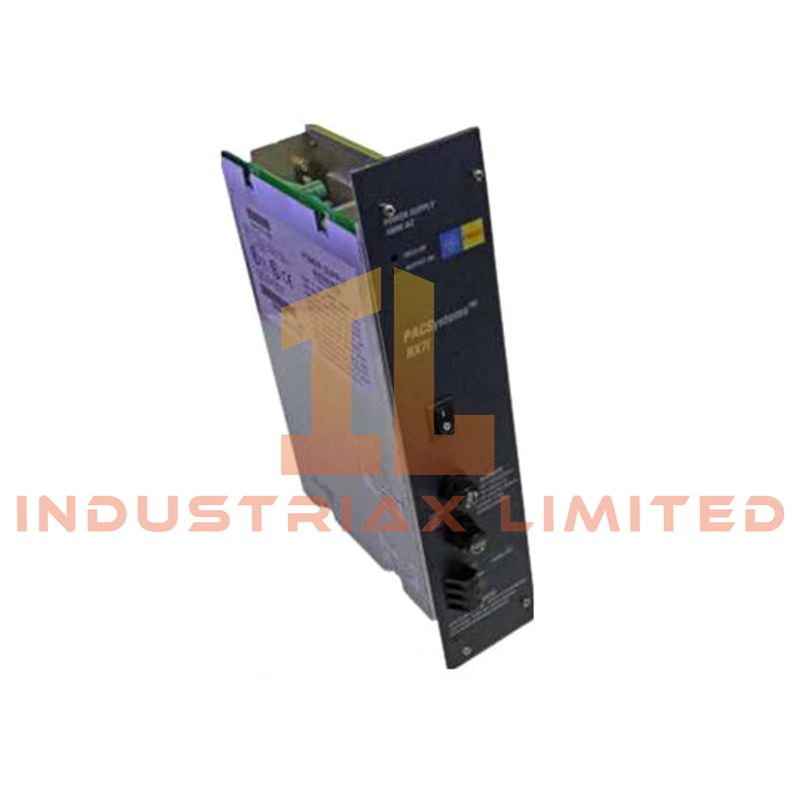

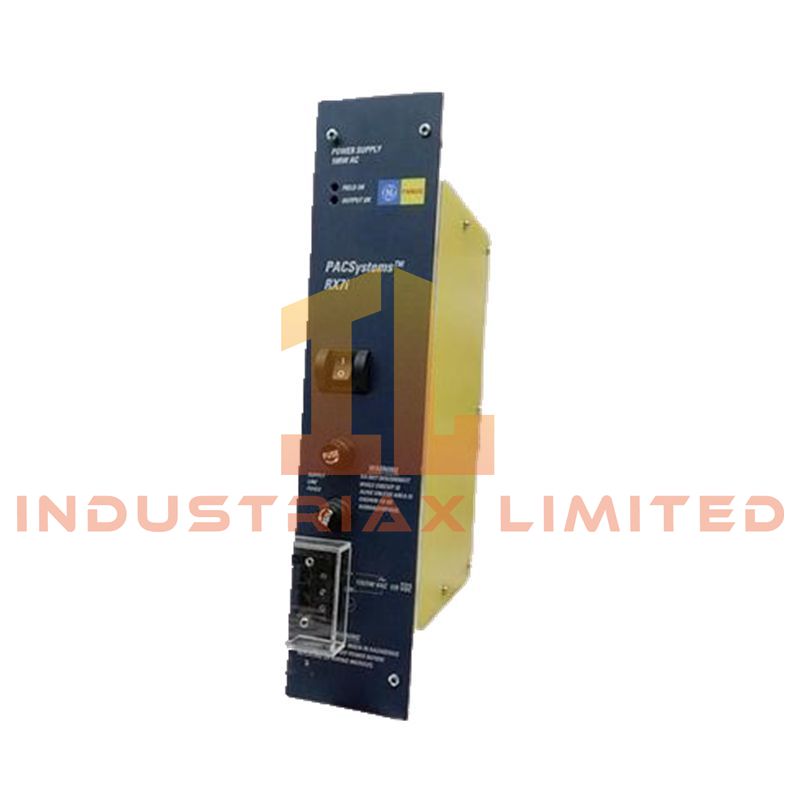

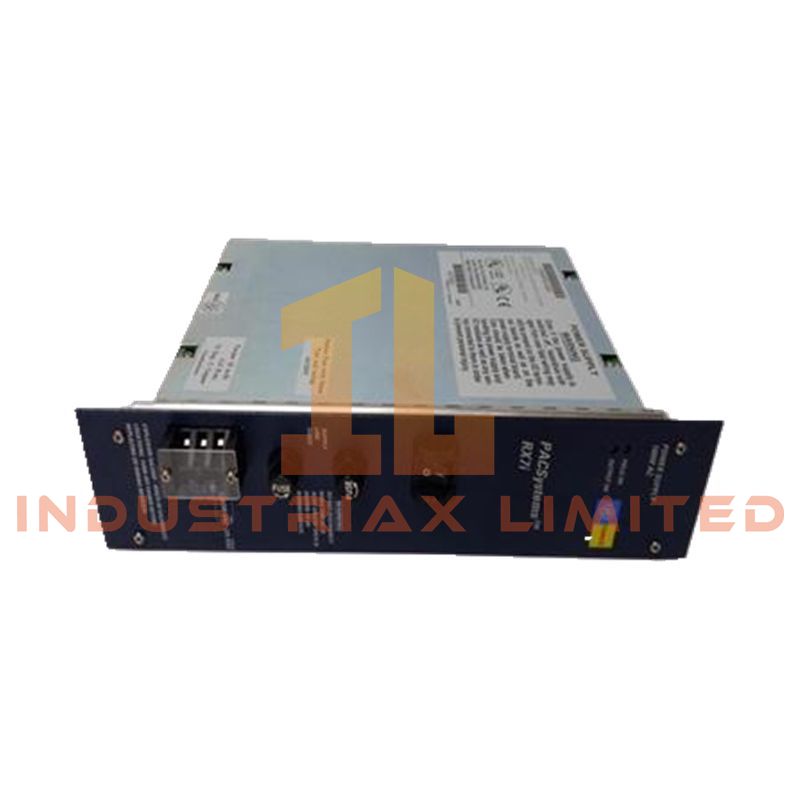

The GE IC698PSA100 is a high-performance power supply module designed for the PACSystems™ RX7i PLC platform. It delivers regulated DC power to the RX7i CPU and I/O modules, ensuring reliable and stable operation across industrial control systems. The module supports multiple output voltages, provides robust protection features, and integrates seamlessly into the RX7i rack architecture. Its built-in LEDs allow quick visual verification of operational status and fault conditions, while the internal fan provides efficient cooling for high-load applications.
Technical Specifications
| Feature |
Specification |
| Model |
IC698PSA100 |
| Module Type |
Power Supply Module |
| System Compatibility |
PACSystems RX7i PLC systems |
| Input Voltage |
120–240 VAC (auto-ranging) |
| Input Frequency |
47–63 Hz |
| Output Voltages |
+5 VDC, +12 VDC, -12 VDC |
| Output Current |
+5 VDC @ 50 A, +12 VDC @ 15 A, -12 VDC @ 3 A |
| Cooling |
Internal forced-air fan |
| Protection |
Overvoltage, overcurrent, thermal shutdown |
| Indicators |
Power and fault status LEDs |
| Mounting |
RX7i rack-mounted |
| Lifecycle Status |
Legacy product, still available from industrial suppliers |
Key Features
-
High current capacity for large RX7i system configurations
-
Multiple DC outputs to support CPU and diverse I/O module requirements
-
Built-in overvoltage, overcurrent, and thermal protection
-
Status LEDs for fast diagnostics and operational monitoring
-
Designed for seamless integration into PACSystems RX7i racks
-
Efficient cooling via internal forced-air fan
Applications
-
Supplying reliable DC power to RX7i CPUs and I/O modules
-
High-load industrial automation systems in manufacturing and process control
-
Energy management, factory automation, and large-scale PLC installations
-
Ensuring stable operation in critical industrial control networks
FAQ
Q: What input voltages does the IC698PSA100 support?
A: 120–240 VAC auto-ranging with a frequency of 47–63 Hz.
Q: What are the output capacities?
A: +5 VDC @ 50 A, +12 VDC @ 15 A, -12 VDC @ 3 A.
Q: Can it protect against electrical faults?
A: Yes, it includes overvoltage, overcurrent, and thermal shutdown protection.
Q: Is it compatible with all RX7i rack modules?
A: Yes, it integrates seamlessly with CPUs and I/O modules in RX7i racks.
