Product Description

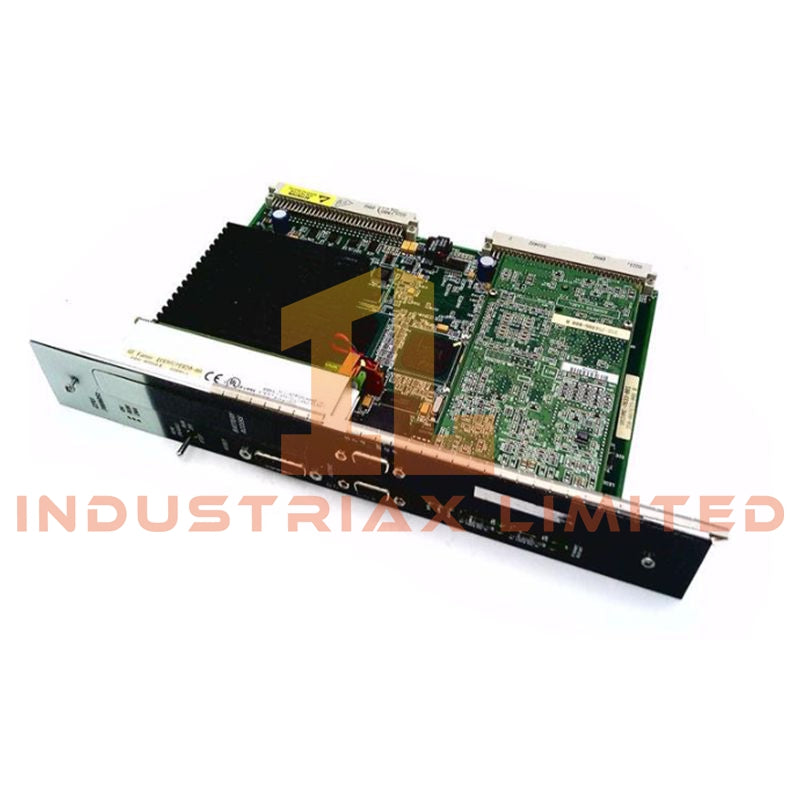

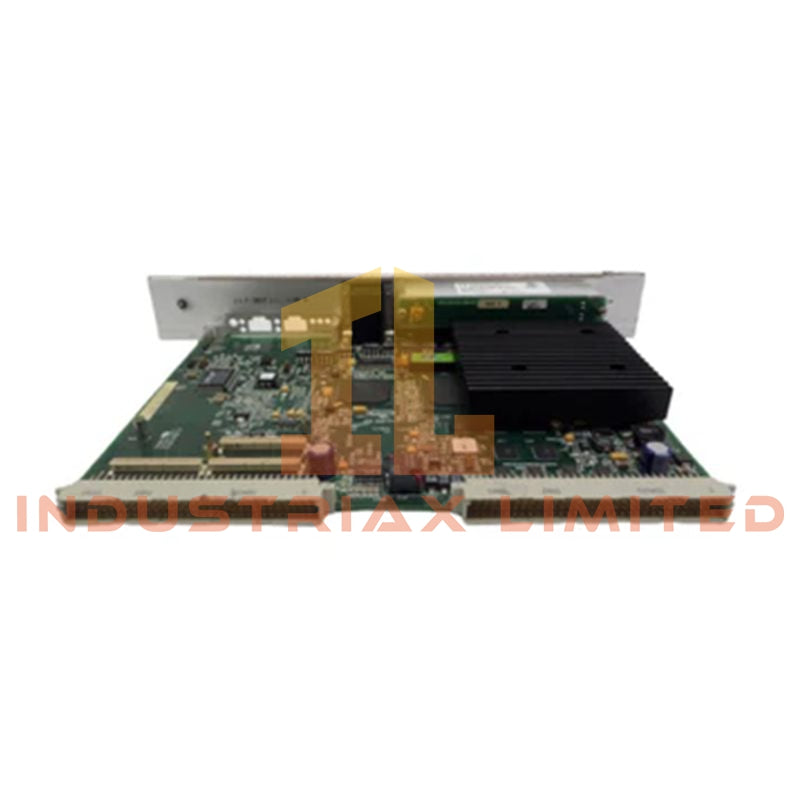

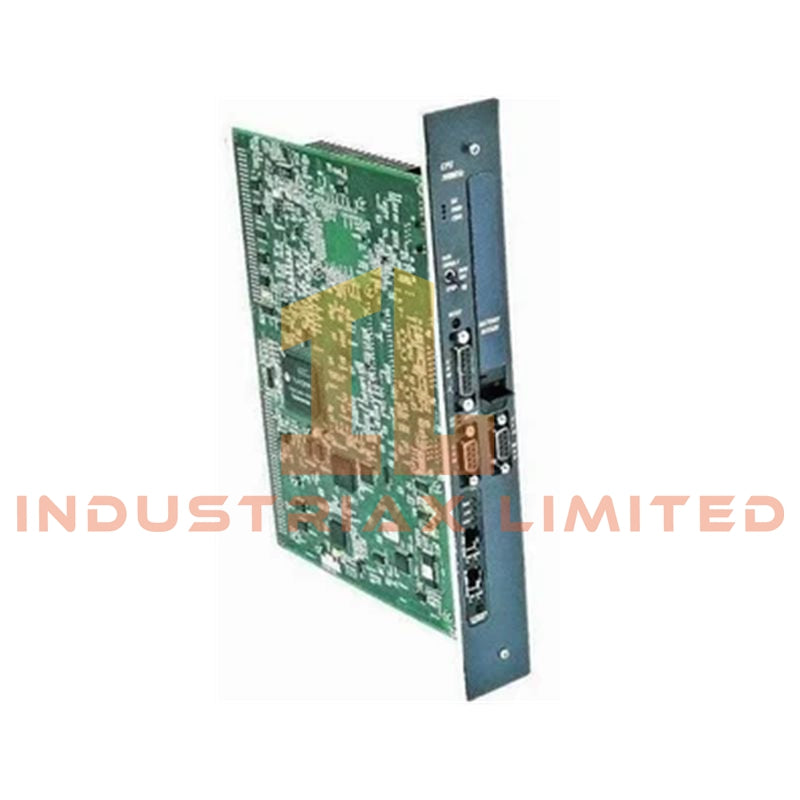

The GE IC698CPE030 is a high-capacity central processing unit engineered for PACSystems RX7i platforms and compatible Series 90-70 architectures. Built on a 600 MHz Pentium-M processor, this module delivers fast execution of control logic, deterministic performance, and reliable communication handling for complex automation systems.
Designed for VME64-based racks, it supports advanced networking, flexible memory allocation, and multiple programming environments, making it suitable for both legacy upgrades and modern process control installations.
Technical Specifications
| Specification |
Details |
| Model |
IC698CPE030 |
| Product Type |
CPU Module |
| Series |
PACSystems RX7i |
| Processor |
600 MHz Pentium-M with floating-point support |
| User RAM |
64 MB (battery-backed SRAM) |
| Flash Memory |
64 MB non-volatile |
| Total User Memory |
64 MB configurable |
| Discrete I/O Memory |
32K |
| Analog I/O Memory |
32K words |
| Max Program Blocks |
512 |
| Backplane |
VME64 |
| Ethernet Ports |
2 × 10/100 Mbps (RJ45, auto-sensing) |
| Serial Ports |
1 × RS-232, 1 × RS-485 |
| Additional Port |
Station Manager port |
| Protocols Supported |
SRTP, Modbus TCP (Client/Server), EGD, Modbus RTU, SNP |
| Web/FTP |
Built-in web server and FTP support (up to 16 connections) |
| Operating Voltage |
+5 VDC, +15 VDC, -12 VDC |
| Current Consumption |
3.4 A |
| Dimensions |
178 × 101 × 76 mm |
| Weight |
0.82 kg |
| Programming Software |
Proficy Machine Edition (v4.0 or later) |
| Installation |
RX7i rack-mounted |
Key Features
-
High-Speed Processing: 600 MHz CPU enables fast scan cycles and complex logic execution.
-
Flexible Memory Architecture: Battery-backed RAM combined with flash ensures data retention and adaptability.
-
Advanced Networking: Dual Ethernet interfaces support segmented or redundant network topologies.
-
Protocol Versatility: Supports multiple industrial protocols for seamless system integration.
-
Legacy Compatibility: Works with Series 90-70 I/O and existing VME-based infrastructure.
-
Built-in Diagnostics: Continuous self-check functions enhance system reliability and uptime.
Typical Applications
-
Large-scale distributed control systems in oil & gas and petrochemical plants
-
Power generation systems requiring high-speed logic and data handling
-
Manufacturing automation with complex sequencing and networking requirements
-
Migration projects from Series 90-70 to RX7i platforms
FAQ
Q: What programming environments are supported?
A: The IC698CPE030 supports Ladder Logic, Structured Text, Function Block Diagram, and C programming via Proficy Machine Edition.
Q: Does this CPU support Ethernet-based protocols?
A: Yes, it supports SRTP, Modbus TCP (client/server), and Ethernet Global Data (EGD).
Q: Is memory expandable?
A: The onboard memory is fixed, but allocation between program and data can be configured.
Q: Can it replace older Series 90-70 CPUs?
A: Yes, it is commonly used in migration scenarios due to its backward compatibility with Series 90-70 I/O modules.
