Description
Product Description

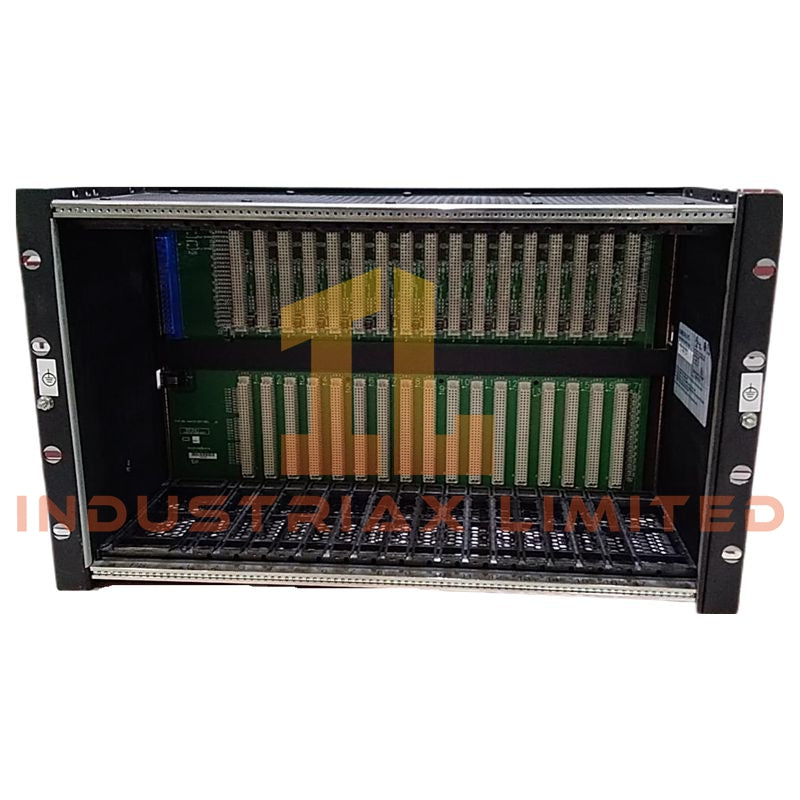

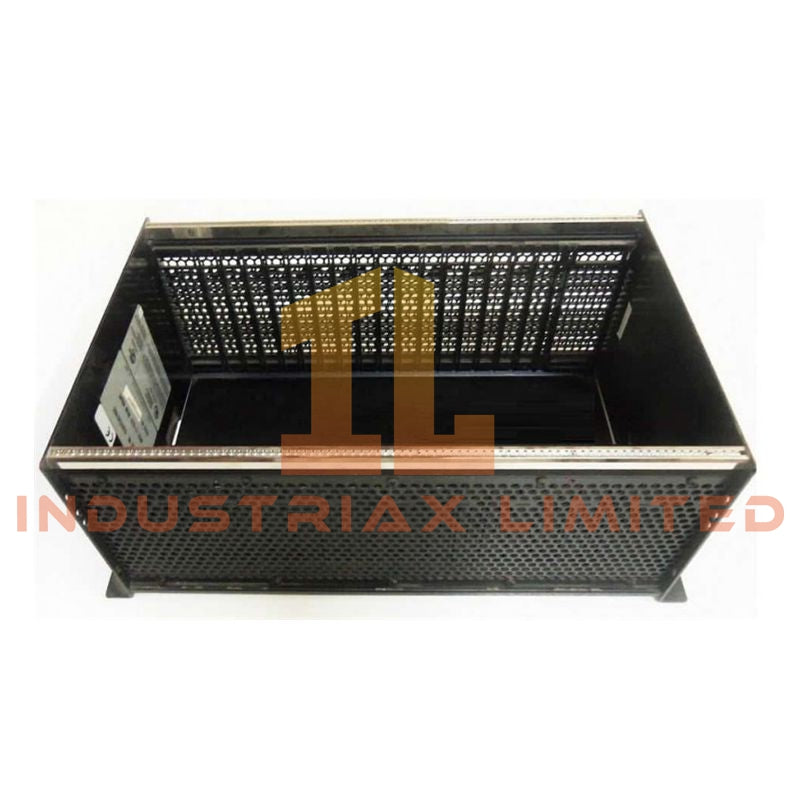

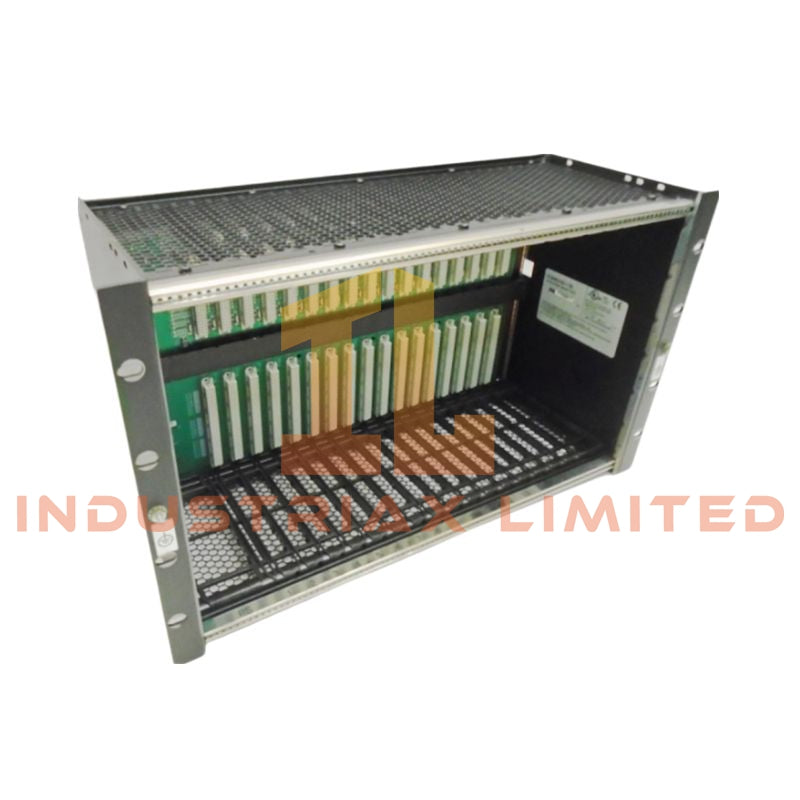

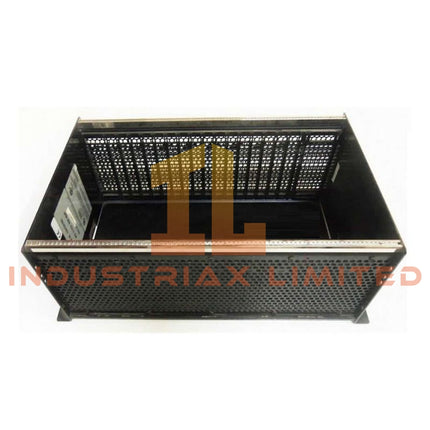

The GE IC698CHS009 is a 9-slot rear-mount rack chassis designed for PACSystems RX7i PLCs, providing the structural and electrical framework to support CPUs, power supplies, and I/O modules. The chassis accommodates both single-width and double-width modules, with a high-speed backplane bus enabling reliable communication across all installed modules. Its robust design ensures durability in industrial environments while maintaining a compact footprint for efficient control cabinet installation. Dedicated slots for CPU and power modules guarantee proper system architecture, and flexible configuration allows mixed module setups for scalable automation systems.
Key Features
-
Rear-mount form factor for efficient use of control cabinet space.
-
Supports single and double-width modules for flexible system expansion.
-
Dedicated slots for power supply and CPU modules ensure organized architecture.
-
High-speed backplane communication for reliable signal transfer between modules.
-
Industrial-grade construction designed for harsh environments.
-
Compatible with RX7i CPUs, IC698CRE CPU modules, and Series 90-70 I/O modules.
-
Scalable configuration options for mixed single/double-width module layouts.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE Fanuc / Emerson |
| Part Number |
IC698CHS009 |
| Product Type |
9-Slot Rear-Mount Rack Chassis |
| Total Slots |
9 (Slot 0: power supply, Slot 1: CPU, Slots 2–8: I/O) |
| Supported Modules |
RX7i CPUs (IC698CPE010/020, IC698CRE020), Series 90-70 I/O, VME modules |
| Module Widths Supported |
Single-width (1 slot), double-width (2 slots) |
| Backplane Spacing |
0.8 in (20.3 mm) center-to-center |
| Module Configuration |
Up to 7 single-width, 4 double-width, or mixed |
| Dimensions (H × W × D) |
178 × 101 × 76 mm |
| Weight |
1.27 kg |
| Operating Temperature |
0–60 °C |
| Storage Temperature |
-40–85 °C |
| Humidity Range |
5–95% RH, non-condensing |
Applications
-
Industrial process control and automation systems.
-
Manufacturing and production line PLC integration.
-
Energy, transportation, and power distribution systems.
-
Scalable RX7i rack configurations requiring mixed I/O and CPU modules.
FAQ
Q: Can this chassis support both single and double-width modules?
A: Yes, the chassis supports both, allowing flexible configuration for mixed module layouts.
Q: Which CPUs are compatible with IC698CHS009?
A: It supports RX7i CPUs including IC698CPE010, IC698CPE020, and IC698CRE020.
Q: Is this chassis suitable for Series 90-70 I/O modules?
A: Yes, it is compatible with Series 90-70 I/O and VME modules.
Q: What is the backplane spacing for module installation?
A: Modules are spaced at 0.8 in (20.3 mm) center-to-center on the backplane.
