Description
Overview

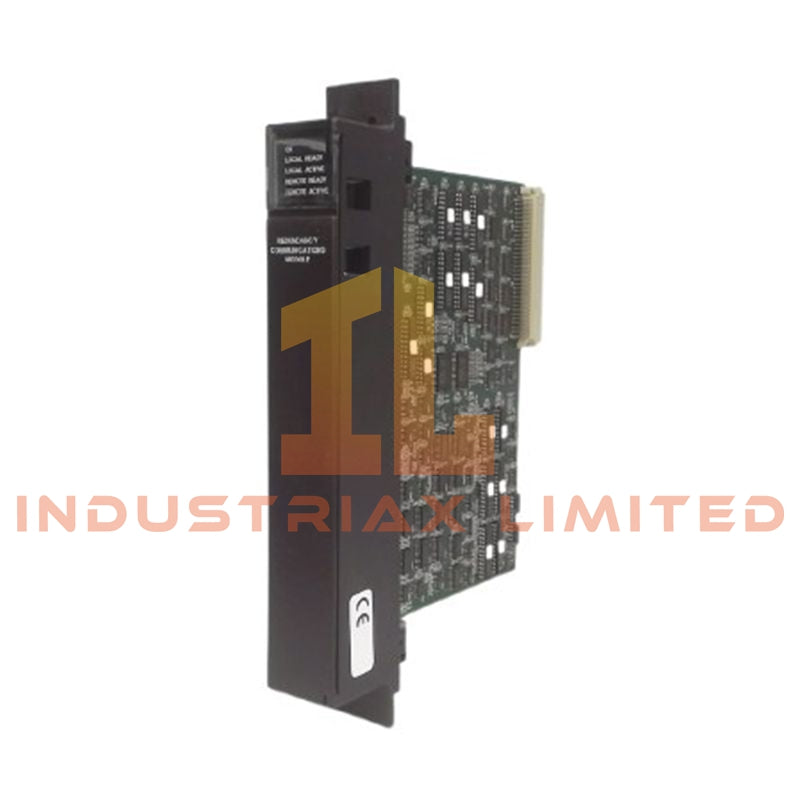

The IC697RCM711 is a remote control module (RCM) designed for the Series 90‑70 PLC platform. It enables distributed I/O management by providing communication between CPUs and remote racks, allowing multiple racks to operate cohesively in large-scale automation systems.
Technical Specifications
-
Model/Part Number: IC697RCM711
-
Manufacturer: GE Fanuc (Emerson Automation Solutions)
-
Series: Series 90‑70 PLC
-
Module Type: Remote Control Module (RCM)
-
Primary Function:
-
Communication Interface: Proprietary GE bus for Series 90‑70
-
I/O Capacity: Supports multiple remote racks with thousands of I/O points
-
Serial Ports: 2 for connectivity and redundancy
-
Slot Size: Single-slot installation
-
Backplane Current Draw: ~0.7–1.2 A @ 5 VDC
-
LED Indicators: 5 LEDs for status, communication, and fault detection
-
Isolation: 1500 VAC field-to-ground for 1 minute
-
Operating Temperature: 0–60 °C
-
Storage Temperature: –40–85 °C
-
Humidity Range: 5–95% non-condensing
-
Weight: 0.93 lbs
Key Features
-
Enables remote rack control for distributed automation networks
-
Redundant communication support for improved reliability
-
Built-in diagnostics and LED indicators provide clear status feedback
-
Scalable architecture supports expansion across multiple racks
-
Industrial-grade design for harsh operating conditions
Applications
-
Linking remote I/O racks to a Series 90‑70 CPU
-
Distributed control systems requiring scalable I/O solutions
-
Environments where redundant communication and fault detection are critical
FAQ
Q: How many remote racks can this module support?
A: Multiple remote racks can be connected, with total I/O points limited by CPU capacity.
Q: What type of communication does it use?
A: Proprietary GE bus interface designed for Series 90‑70 PLCs.
Q: Can it operate in harsh conditions?
A: Yes, it is rated for industrial environments with wide temperature and humidity ranges.
