Product Description

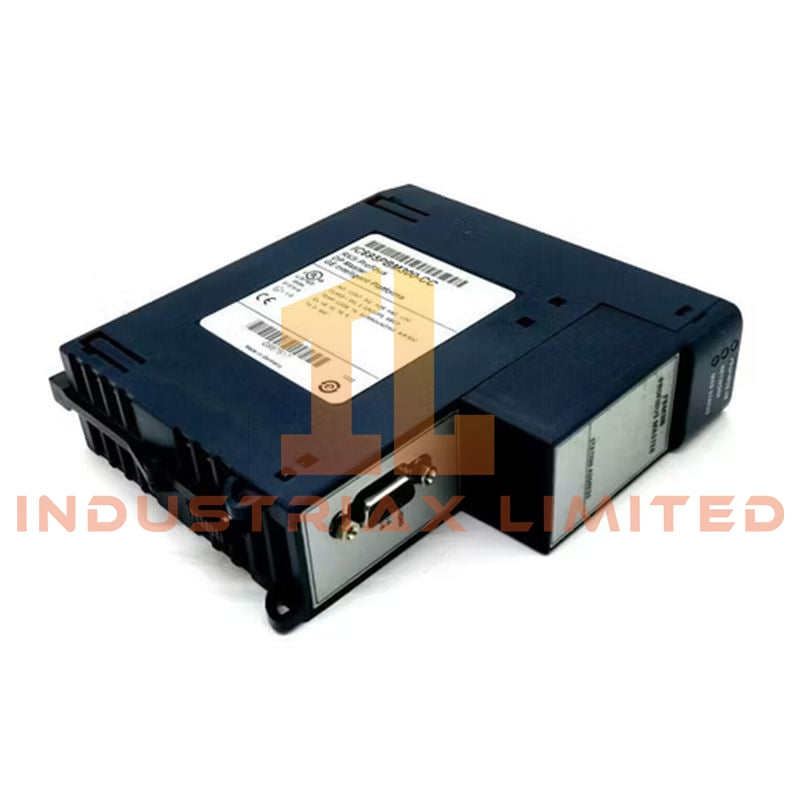

The GE Fanuc IC695PNS001 is a high-performance PROFINET Scanner Module for the PACSystems RX3i platform, designed to connect controllers to distributed PROFINET I/O devices. It enables real-time deterministic Ethernet communication, supporting large-scale industrial automation networks with high reliability and fast data transfer.
With dual Gigabit Ethernet ports and advanced diagnostics, the IC695PNS001 ensures seamless integration of RX3i controllers into modern industrial Ethernet topologies. The module is configurable via Proficy Machine Edition (PME) software, offering flexible update rates and scalable device support for complex distributed systems.
Technical Specifications
| Specification |
Details |
| Model |
IC695PNS001 |
| Product Type |
PROFINET Scanner Module |
| System |
PACSystems RX3i |
| Communication Standard |
PROFINET (IEC 61158/61784) |
| Module Role |
PROFINET I/O Controller |
| Ethernet Ports |
2 × 10/100/1000 Mbps independent ports |
| Max Devices Supported |
128 PROFINET devices |
| Update Rate |
Configurable, 1–64 ms typical |
| Protocols Supported |
PROFINET RT, TCP/IP |
| Diagnostics |
Web server interface, LED indicators, fault reporting |
| Configuration Software |
Proficy Machine Edition (PME) |
| Installation |
Standard RX3i rack slot |
| Redundancy |
Supports CPU and system redundancy |
| Topology Support |
Line, star, or ring network configurations |
| Environmental |
Industrial-rated temperature and vibration tolerance |
| Weight |
1.1 lbs |
Key Features
-
High-Speed PROFINET Communication: Deterministic real-time data exchange for reliable control.
-
Dual Ethernet Ports: Flexible network topologies, supporting line, star, or ring layouts.
-
Scalable Device Support: Connect up to 128 PROFINET I/O devices.
-
Integrated Diagnostics: Web server and LED indicators for easy troubleshooting.
-
Redundancy Ready: Compatible with RX3i CPU redundancy configurations.
-
Easy Configuration: Managed through Proficy Machine Edition (PME) software.
Applications
-
Distributed control systems with multiple PROFINET I/O devices
-
High-speed manufacturing automation requiring real-time Ethernet communication
-
Industrial networks with CPU redundancy and fault-tolerant design
-
Large-scale PROFINET installations in process or discrete industries
FAQ
Q: How many devices can the IC695PNS001 support?
A: Up to 128 PROFINET I/O devices per module.
Q: Can it operate in redundant CPU systems?
A: Yes, it supports RX3i CPU and system redundancy.
Q: What network topologies are compatible?
A: Line, star, or ring configurations via dual Ethernet ports.
Q: What software is required for configuration?
A: Proficy Machine Edition (PME).
