Product Description

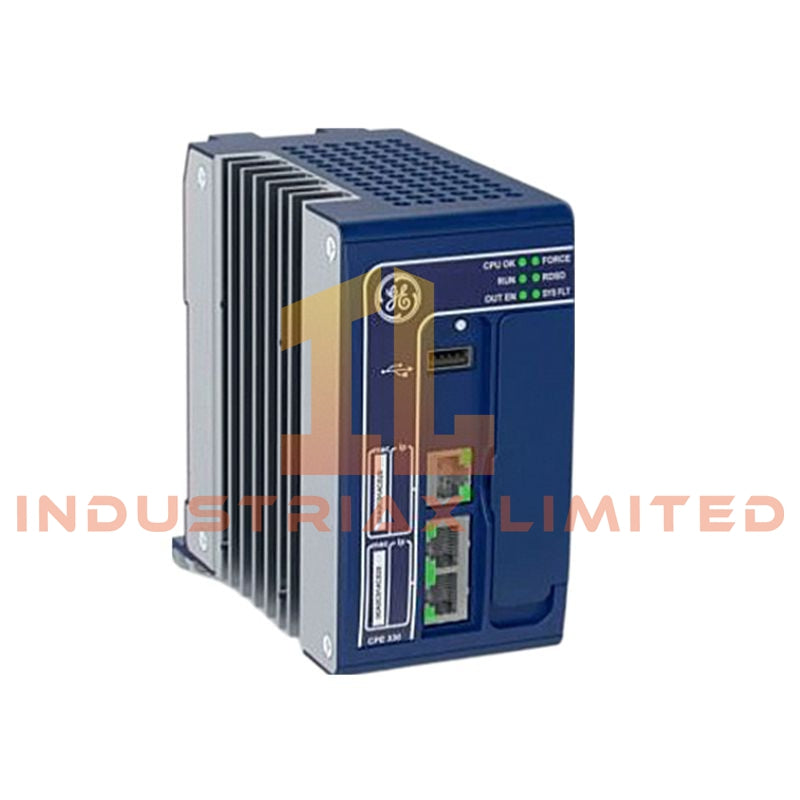

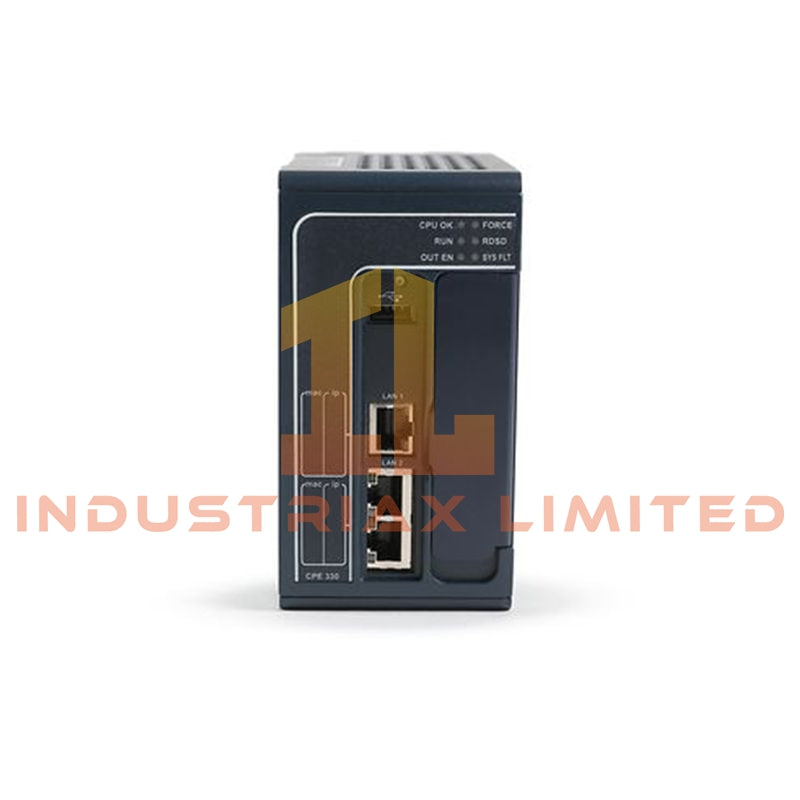

The GE Fanuc IC695CPE330 is a high-performance CPU module for the PACSystems RX3i family, engineered to meet the demands of advanced industrial automation and process control. Featuring a 1 GHz dual-core processor and 64 MB of user memory, it delivers fast logic execution and large-scale data management. Dual independent high-speed Ethernet ports provide robust network connectivity for SCADA, peer-to-peer communication, and Industrial Internet integration.
Designed for scalability, the IC695CPE330 supports up to 32K discrete I/O points and 32K words of analog I/O, with optional IC695ACC402 Energy Pack for memory retention during power loss. Its metal housing enhances noise immunity, and the module fits seamlessly into RX3i main racks alongside all RX3i I/O and option modules. Multiple industrial protocols, including TCP/IP, SRTP, Ethernet Global Data (EGD), PROFINET, Modbus TCP/IP, DNP3, IEC-61850, and HART passthrough, ensure versatile connectivity for modern automation systems. Redundancy support and industrial Internet readiness make it ideal for critical applications requiring high reliability and uptime.
Technical Specifications
| Specification |
Details |
| Model |
IC695CPE330 |
| Product Type |
RX3i Dual-Core PAC CPU Module |
| Processor |
1 GHz Dual-Core Microprocessor |
| User Memory |
64 MB program memory |
| I/O Capacity |
32K discrete I/O, 32K analog I/O words |
| Ethernet Ports |
2 x 10/100/1000 Mb (one independent, one 2-port switch) |
| Programming Software |
Proficy Machine Edition (PME) |
| Optional Energy Pack |
IC695ACC402 for non-volatile memory backup |
| Redundancy Support |
MRP, PNSR, OPC UA NTSR |
| Ethernet Protocols |
SRTP Client/Server, Modbus TCP/IP, EGD, PROFINET, DNP3, IEC-61850, OPC UA |
| Serial Protocols |
ASCII Serial, Modbus/RTU |
| Remote I/O Support |
Up to 32 Simplex, 20 Redundant, 255 Simplex with PNC001 |
| USB Interface |
1 x USB-A 2.0 |
| Memory Card |
1 x High-speed CFast |
| Housing |
Metal casing for EMI/Noise immunity |
| Installation |
RX3i main rack compatible |
| Operating Temperature |
0 °C to 60 °C (Optional -40 °C to +60 °C) |
| Weight |
1.3 kg |
| Communication |
Industrial Ethernet, SCADA-ready, IIoT capable |
Key Features
-
Dual-Core 1 GHz Processor: Enables rapid execution of complex automation tasks.
-
Large Memory: 64 MB user memory supports extensive logic and data storage.
-
Dual Ethernet Connectivity: Independent high-speed ports for flexible networking.
-
Scalable I/O Support: Handles up to 32K discrete and 32K analog I/O points.
-
Redundancy & IIoT Ready: Supports high availability and Industrial Internet protocols.
-
Robust Industrial Design: Metal casing improves EMI/Noise immunity for harsh environments.
-
Energy Pack Support: Optional IC695ACC402 maintains memory during power loss.
Applications
-
Large-scale PACSystems RX3i automation projects
-
Industrial process control and monitoring
-
SCADA, MES, and Industrial Internet integration
-
Systems requiring redundancy and high availability
FAQ
Q: Can IC695CPE330 support redundant Ethernet networks?
A: Yes, dual independent Ethernet ports support multi-tier, redundant communications and MRP/PNSR protocols.
Q: Does it retain memory during power outages?
A: Yes, with optional IC695ACC402 Energy Pack installed.
Q: What programming software is compatible?
A: Proficy Machine Edition (PME) is used for configuration and programming.
Q: Is it compatible with all RX3i I/O modules?
A: Yes, fully compatible with all RX3i I/O and option modules in the main rack.
