Product Description

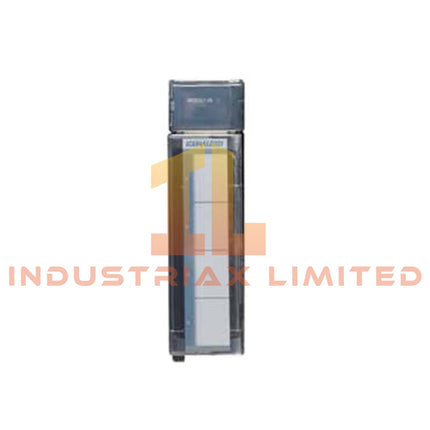

The GE IC694MDL753 is a 32-point high-density discrete input module engineered for PACSystems RX3i PLCs. It captures digital signals from field devices such as switches, sensors, and contact closures, delivering precise real-time data to the PLC CPU. Designed for high-noise industrial environments, this module incorporates optical isolation, fast response times, and hot-swappable operation, ensuring uninterrupted performance in critical applications. Its compact design optimizes rack space without compromising functionality.
Key Features
-
32 isolated input points in a high-density layout, reducing rack footprint.
-
Channel-to-channel and channel-to-system optical isolation for reliable signal integrity.
-
Rapid input response (<1 ms typical) for accurate real-time monitoring.
-
Compatible with 24-pin quick-connect cables (IC693CBL328/329) for simplified wiring.
-
Hot-swappable design allows replacement without shutting down the system.
-
Rugged construction for industrial environments with temperature and humidity tolerance.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE Fanuc / Emerson |
| Part Number |
IC694MDL753 |
| Product Type |
High-Density Discrete Input Module |
| PLC Compatibility |
PACSystems RX3i |
| Input Points |
32 isolated inputs |
| Nominal Input Voltage |
24 VDC |
| Input Type |
Contact closure or logic-level signals |
| Input Current |
~7 mA per point at 24 VDC |
| Isolation |
Channel-to-channel and channel-to-system |
| Response Time |
Typically <1 ms |
| Connector Type |
24-pin Fujitsu (compatible with IC693CBL328/329) |
| Mounting |
RX3i rack/baseplate |
| Operating Temperature |
0–60 °C |
| Storage Temperature |
-40 to +85 °C |
| Humidity Range |
5–95% RH, non-condensing |
| Weight |
0.45 kg |
Applications
-
Manufacturing and industrial automation systems.
-
Process control for oil & gas, chemical, and energy sectors.
-
Transportation and material handling systems.
-
High-density PLC I/O configurations requiring reliable digital inputs.
FAQ
Q: How many inputs does IC694MDL753 support?
A: It provides 32 isolated discrete input points.
Q: Can it be replaced while the system is running?
A: Yes, it supports hot-swappable operation with compatible RX3i racks.
Q: Which cables are compatible for connections?
A: Use 24-pin quick-connect cables IC693CBL328 or IC693CBL329.
Q: Is it suitable for noisy industrial environments?
A: Yes, optical isolation protects against electrical noise and ensures signal integrity.
