Description
Overview

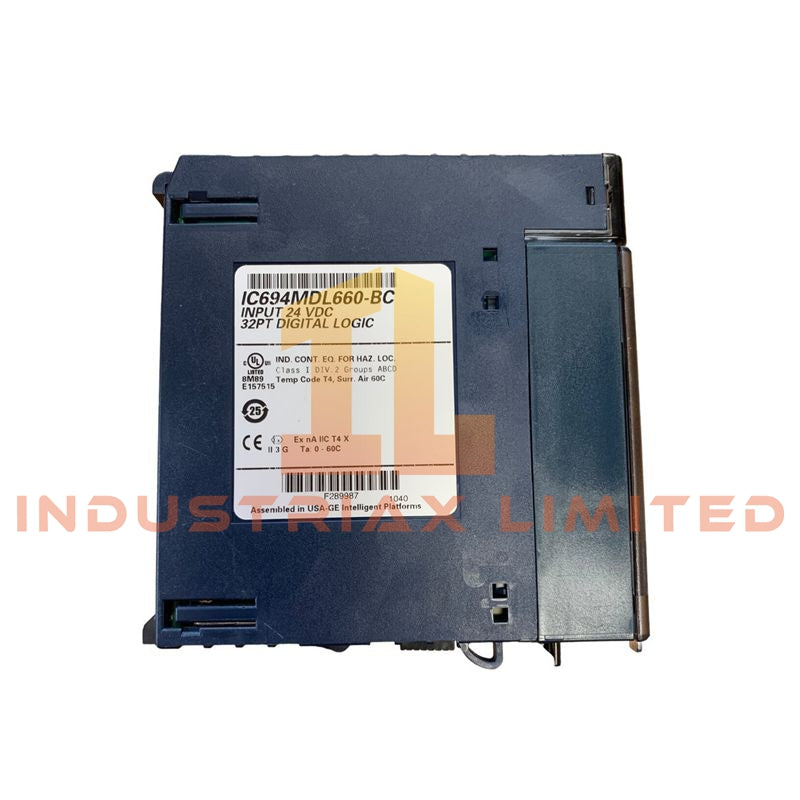

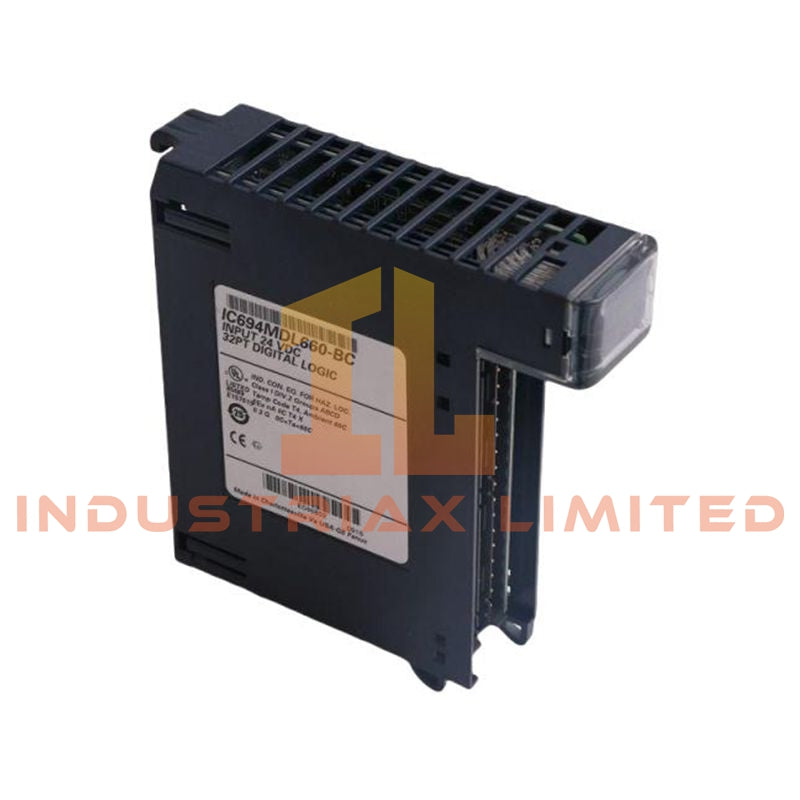

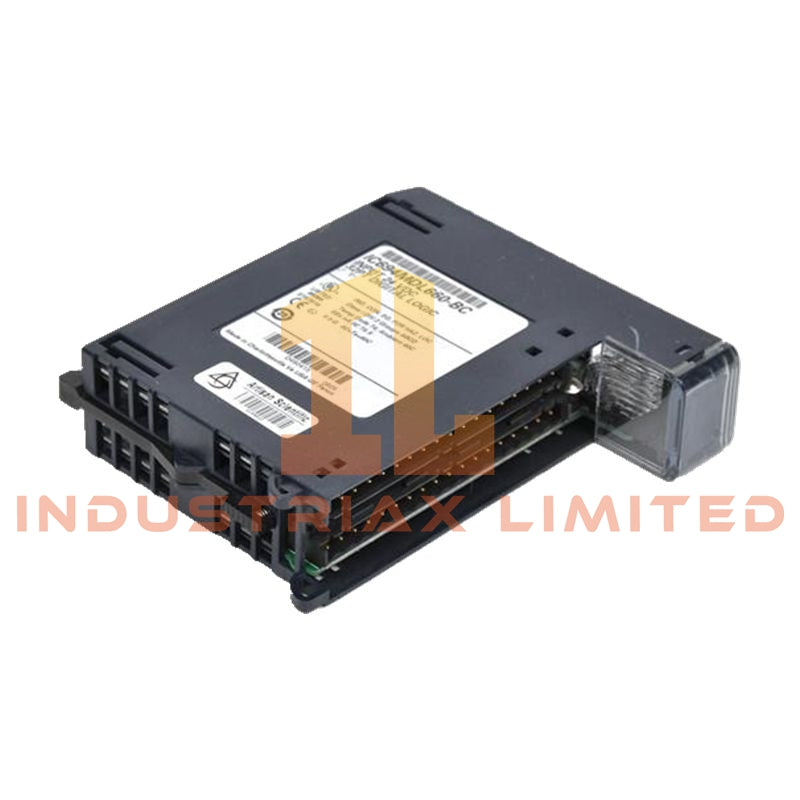

The IC694MDL660 is a 32-point 24 VDC digital input module for the PACSystems RX3i series. It supports both positive and negative logic inputs and provides selectable input filter times from 0.5 ms to 100 ms. The module is organized into four isolated groups, each with eight inputs and a separate common, ensuring strong electrical isolation for safe and reliable operation in industrial environments. Integrated LED indicators allow immediate visual confirmation of input status.
Technical Specifications
-
Model/Part Number: IC694MDL660
-
Brand: GE Fanuc (Emerson Automation)
-
Series: PACSystems RX3i
-
Type: Digital Input Module
-
Number of Channels: 32 discrete inputs
-
Input Voltage: 24 VDC nominal (20–30 VDC operating range)
-
Logic Type: Positive or negative logic, selectable
-
Input Groups: 4 isolated groups of 8 points, each with separate common
-
Selectable Input Filter Times: 0.5 ms, 1 ms, 2 ms, 5 ms, 10 ms, 50 ms, 100 ms
-
Input ON Threshold: > 11.5 VDC
-
Input OFF Threshold: < 5 VDC
-
Maximum Inrush Current: 4.78 A for 10 ms
-
Input Current: ~7 mA per point at rated voltage
-
Power Consumption: 300 mA from 5 VDC bus (all inputs active)
-
Backplane Current Draw: 300 mA @ 5 VDC
-
LED Indicators: 32 green LEDs showing ON/OFF status
-
Isolation:
-
Field-to-backplane: 250 VAC continuous, 1500 VAC for 1 minute
-
Group-to-group: 250 VAC continuous, 1500 VAC for 1 minute
-
Terminal Block Options: IC694TBB032 (box-style), IC694TBS032 (spring-style)
-
Mounting: Panel or DIN rail
-
Dimensions: 14.5 cm x 14.0 cm x 3.4 cm (5.7 in x 5.5 in x 1.3 in)
-
Weight: 0.23 kg
-
Compatibility: RX3i CPU version 2.90 or greater
-
Product Lifecycle Status: Active
Key Features
-
High-density 32-point input saves rack space
-
Supports both positive and negative logic
-
Selectable input filter times optimize response for fast or noisy signals
-
LED diagnostics for instant visual verification
-
Certified for hazardous locations, ensuring safe operation in demanding industrial environments
Applications
-
Interface sensors, switches, and pushbuttons with RX3i controllers
-
Monitor discrete 24 VDC field devices in industrial automation systems
-
Suitable for safety-critical applications in hazardous locations
-
Expansion of discrete I/O in factory control and process monitoring systems
FAQ
Q: Can IC694MDL660 handle noisy input signals?
A: Yes, the module provides selectable input filter times from 0.5 ms to 100 ms to optimize signal reliability.
Q: Does the module support both logic polarities?
A: Yes, it supports both positive and negative logic inputs.
Q: How are inputs organized?
A: Inputs are divided into four isolated groups of eight points, each with its own common terminal.
Q: Is the module certified for hazardous locations?
A: Yes, it meets Class I Div. 2 requirements for Groups A, B, C, D.
