Description
Overview

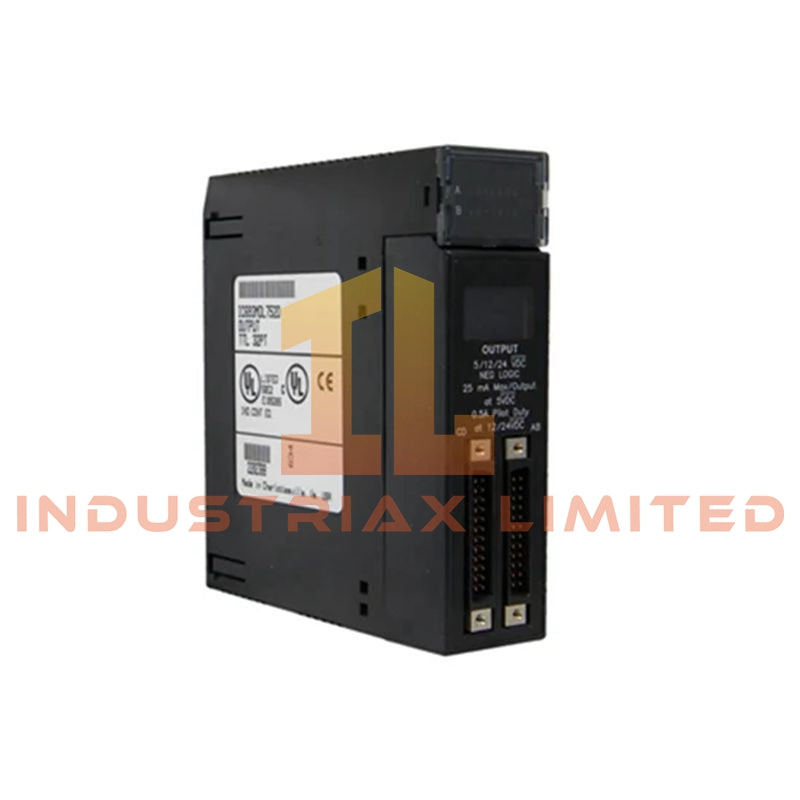

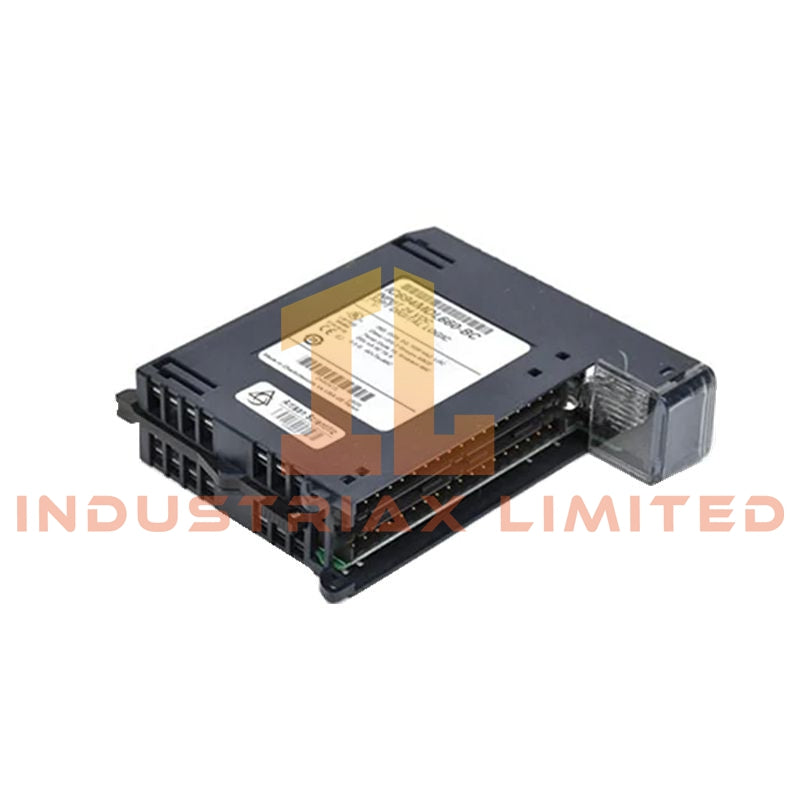

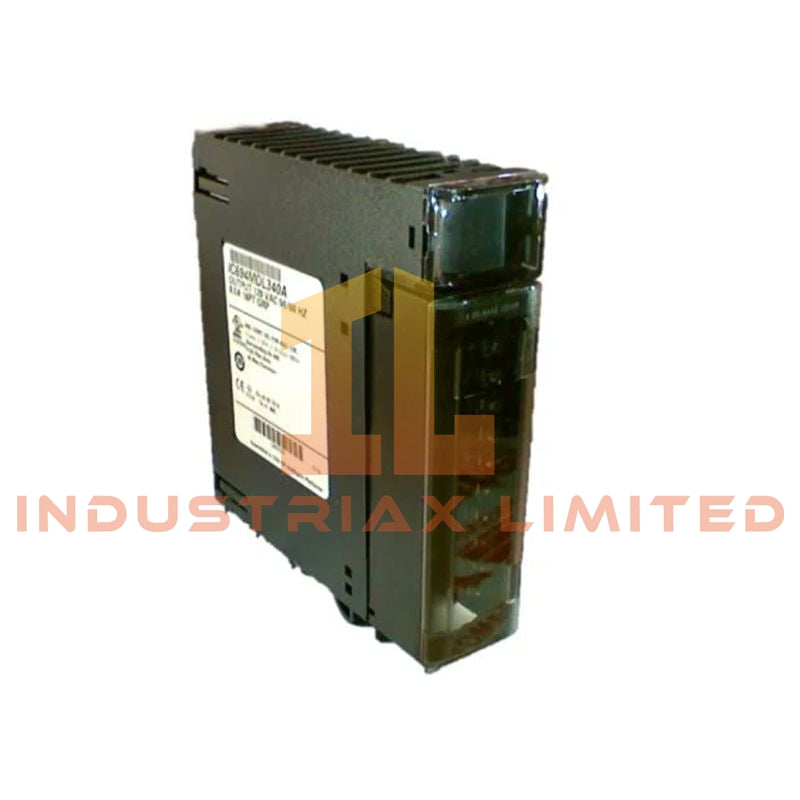

The IC694MDL340 is a 16-point positive logic output module designed for the PACSystems RX3i series. It provides reliable DC switching for field devices including solenoids, relays, lamps, and actuators. Its solid-state design ensures rapid response and long-term durability in demanding industrial environments.
Technical Specifications
-
Model/Part Number: IC694MDL340
-
Manufacturer: GE Fanuc (Emerson Automation)
-
Series: PACSystems RX3i
-
Module Type: Discrete DC Output Module
-
Channels: 16 output points
-
Nominal Output Voltage: 12/24 VDC
-
Output Voltage Range: 10.2–30 VDC
-
Logic Type: Positive logic (outputs active when logic high)
-
Output Current: 0.5 A per point, 4 A per group, 8 A maximum per module
-
Output Groups: 2 isolated groups of 8 points each with separate commons
-
Switching Device: Solid-state transistor outputs
-
Response Time: < 1 ms ON/OFF typical
-
Backplane Current Draw: ~150 mA @ 5 VDC
-
Indicators: 16 green LEDs showing ON/OFF status of each output
-
Isolation: 1500 VDC field-to-ground for 1 minute
-
Terminal Block Options: IC694TBB032 (box-style), IC694TBS032 (spring-style)
-
Certifications: UL, CE, CSA
-
Operating Temperature: 0–60 °C (32–140 °F)
-
Storage Temperature: –40–85 °C (–40–185 °F)
-
Humidity: 5–95% non-condensing
-
Weight: 0.44 lbs
Key Features
-
High-density 16-point output in a single RX3i slot
-
Fast switching response suitable for high-speed DC applications
-
Isolated output groups enhance safety and reduce cross-channel interference
-
LED diagnostics provide immediate visual feedback for status monitoring
-
Robust solid-state design ensures long service life in industrial environments
Applications
-
Driving DC field devices such as relays, solenoids, and indicator lamps
-
PLC-controlled machinery requiring reliable, high-speed output
-
Factory automation, process control, and material handling systems
FAQ
Q: What voltage levels does IC694MDL340 support?
A: Nominal output is 12/24 VDC, with an operating range of 10.2–30 VDC.
Q: How fast does the module respond?
A: Typical ON/OFF response time is less than 1 ms.
Q: Can it handle high inrush currents?
A: Yes, each channel supports standard inrush loads for typical DC field devices.
Q: Is the module compatible with all RX3i I/O racks?
A: Yes, it fits standard PACSystems RX3i I/O slots.
