Product Description

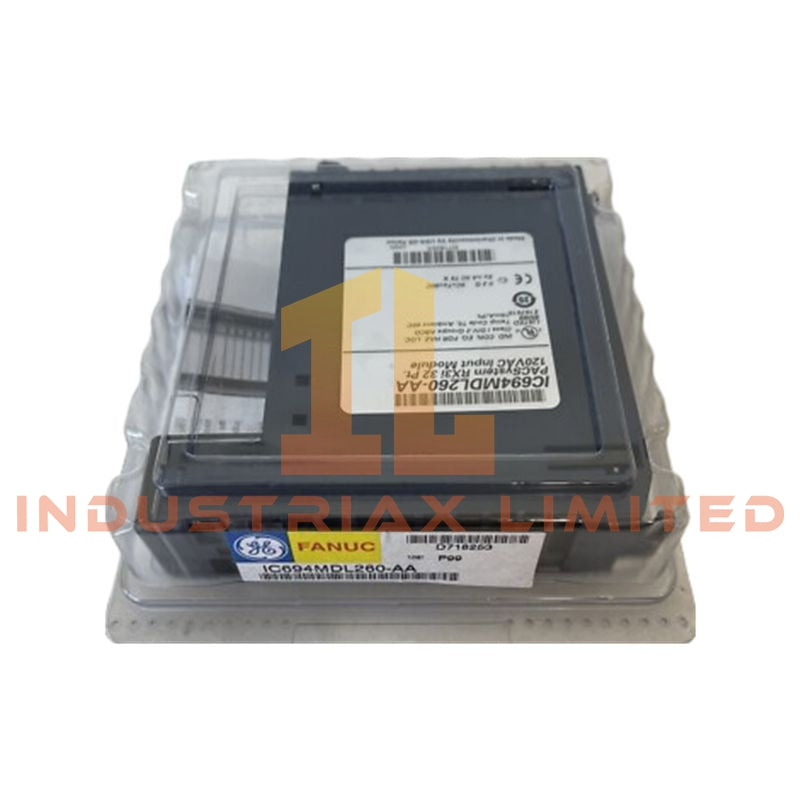

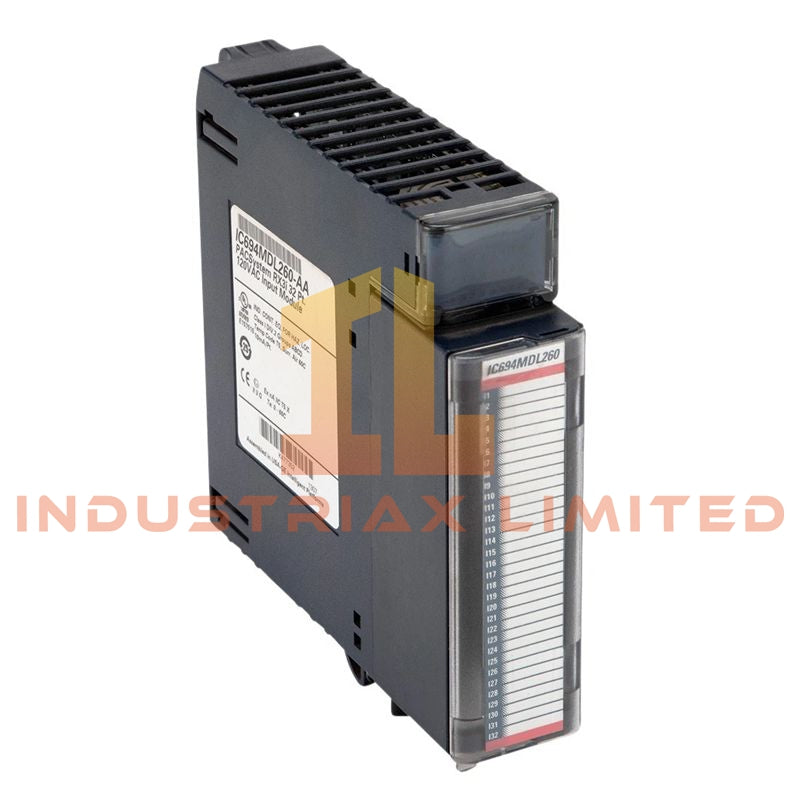

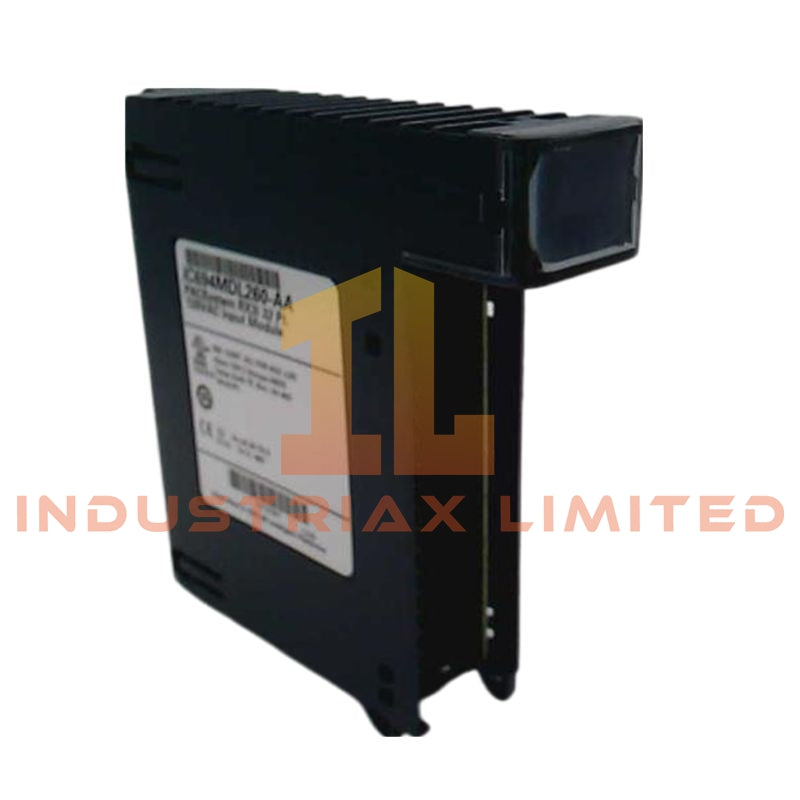

The IC694MDL260 is a high-performance 32-channel AC discrete input module engineered for the PACSystems RX3i platform. It provides reliable 120 VAC signal detection for a wide range of industrial control applications, offering robust isolation and diagnostic feedback.
Key Features and Functionality
-
32 discrete input points organized into 4 isolated groups, 8 channels per group
-
Positive logic: ON state recognized when voltage is applied
-
High isolation between groups: 1500 VAC typical; shared common reference within groups
-
Hot-swap capable on RX3i Universal Backplane
-
Individual LEDs for each input channel plus red/green terminal block status indicators
-
Supports diagnostic reporting of field-side terminal block presence
Electrical Specifications
-
Nominal Input Voltage: 120 VAC
-
Input Voltage Range: 0–132 VAC
-
Input Frequency: 47–63 Hz
-
ON-State Voltage: 70–132 VAC
-
OFF-State Voltage: 0–20 VAC
-
Typical Input Current: 7 mA per channel at rated voltage
-
Response Time: ~30 ms ON / 45 ms OFF
-
Input Filter Times: 20–2540 ms, configurable in 20 ms increments
-
Backplane Current Draw: 220 mA @ 5 VDC
Environmental Specifications
Compatibility
-
Platform: PACSystems RX3i
-
Required Firmware: Version 3.50 or later
-
Terminal Blocks (sold separately): IC694TBB032, IC694TBB132 (box-style); IC694TBS032, IC694TBS132 (spring-style)
Applications
Ideal for AC sensor interfaces, switch monitoring, contactor state detection, and other binary input systems in manufacturing, process automation, and industrial control.
FAQ
Q: Can this module be used with Series 90-30 PLCs?
A: No, the IC694MDL260 is exclusive to PACSystems RX3i CPUs.
Q: Does it support hot swapping?
A: Yes, hot insertion and removal are fully supported on the RX3i Universal Backplane.
Q: How is input isolation handled?
A: Each group of 8 inputs shares a common reference, while isolation exists between groups for up to 1500 VAC.
