Description

Overview

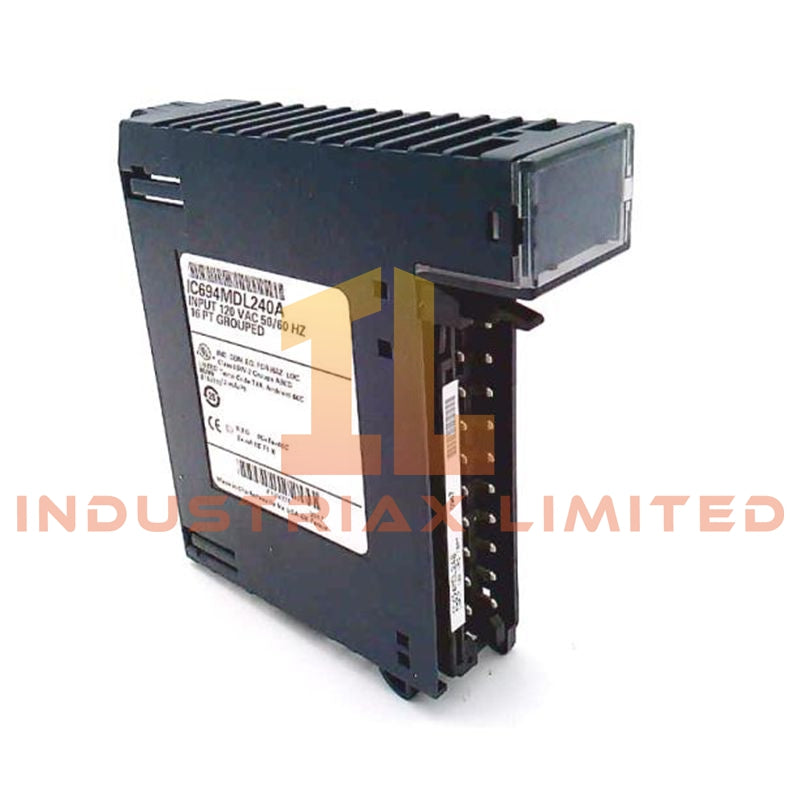

The IC694MDL240A is a 16-channel discrete AC input module for the PACSystems RX3i series. Engineered for industrial control applications, it accepts 120 VAC signals from devices such as pushbuttons, limit switches, and proximity sensors. Its robust electrical isolation protects both the module and the system, while integrated LED indicators provide immediate visual status for each input.

Technical Specifications

• Model/Part Number: IC694MDL240A

• Brand: GE Intelligent Platforms (GE Fanuc)

• Series: PACSystems RX3i

• Type: Discrete Input Module

• Number of Channels: 16 (single group)

• Nominal Input Voltage: 120 VAC

• Input Voltage Range: 0–132 VAC

• Input Frequency: 47–63 Hz

• Input Current: ~12 mA per channel at rated voltage

• Bus Voltage: 5 VDC

• Backplane Current Draw: 90 mA (all inputs active)

• Isolation:

• Field-to-backplane: 250 VAC continuous

• Field-to-frame: 1500 VAC for 1 minute

• LED Indicators: 16 green LEDs for ON/OFF status

• On-State Voltage: 74–132 VAC

• On-State Current: 6 mA

• Off-State Voltage: 0–20 VAC

• Off-State Current: 2.2 mA

• Response Time:

• On: typical 30 ms, maximum 30 ms

• Off: maximum 45 ms

• Operating Temperature: 0–60 °C

• Dimensions: 5.5 in x 5.5 in x 1.5 in (14.0 cm x 14.0 cm x 3.8 cm)

• Weight: 0.56 lbs

Key Features

• Handles 120 VAC signals for industrial environments

• Compatible with standard input devices including pushbuttons, limit switches, and proximity sensors

• High isolation ensures electrical safety and system reliability

• 16 LED indicators provide instant diagnostics of input status

• Designed for easy installation into any RX3i I/O slot

Applications

• Monitoring AC input devices in factory automation systems

• Integrating field input signals into PACSystems RX3i controllers

• Safe signal acquisition for machinery and process control

• Expansion of I/O capabilities for discrete AC monitoring

FAQ

Q: Can this module handle other AC voltages?
A: It is optimized for 120 VAC; operation outside 0–132 VAC range is not recommended.

Q: How is electrical isolation maintained?
A: The module provides 250 VAC continuous isolation between field wiring and backplane, and 1500 VAC for 1 minute to frame ground.

Q: Are LED indicators available for each channel?
A: Yes, each of the 16 input channels has a green LED showing ON/OFF status.

Q: What are the module dimensions and weight?
A: Dimensions: 5.5 in x 5.5 in x 1.5 in; Weight: 0.56 lbs.

Specifications

• Dimensions: 33 × 10 × 5 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
