Description
Overview

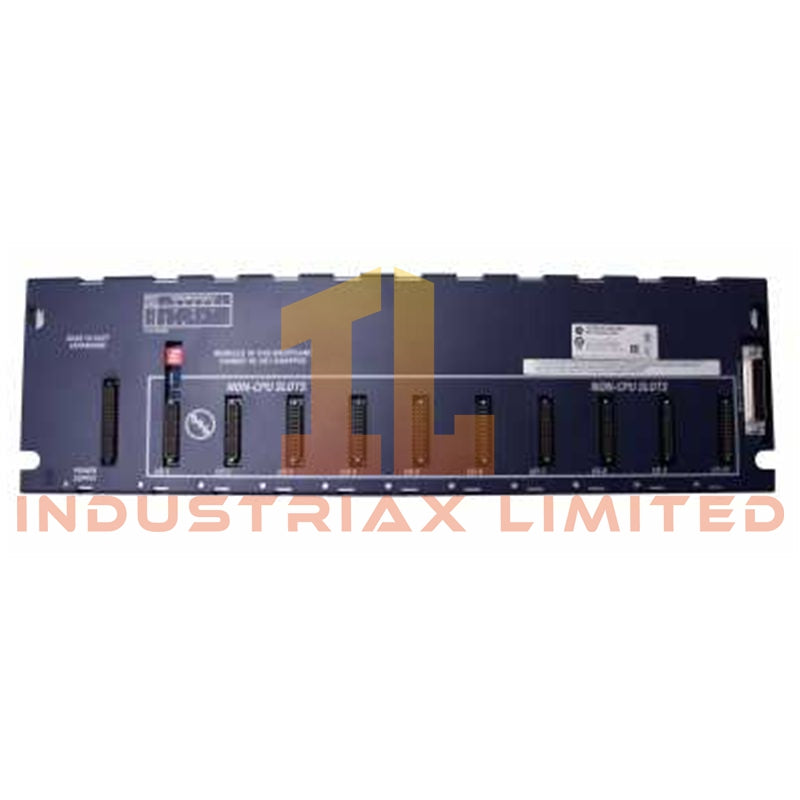

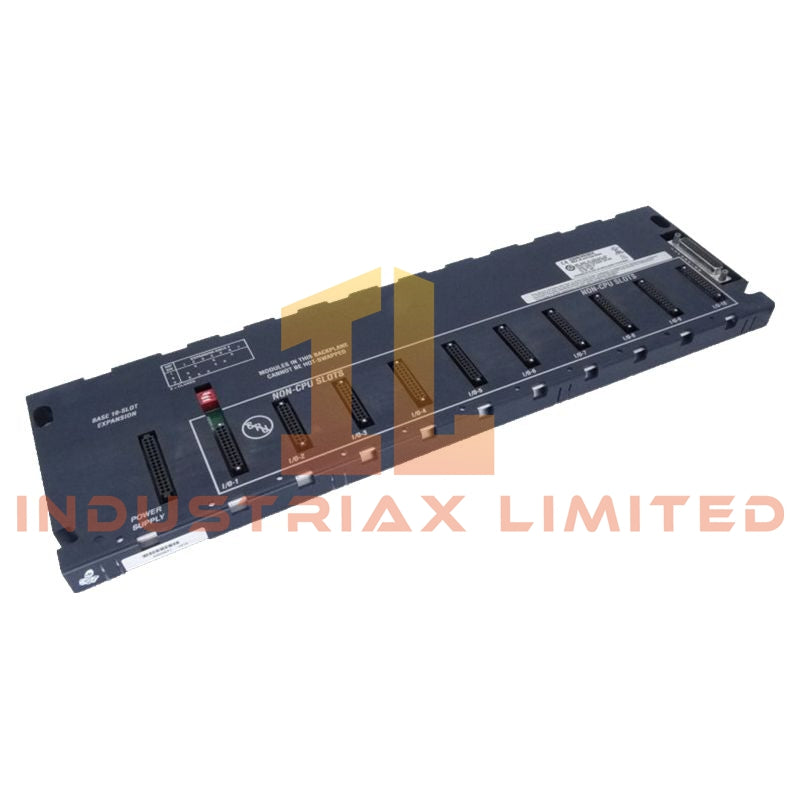

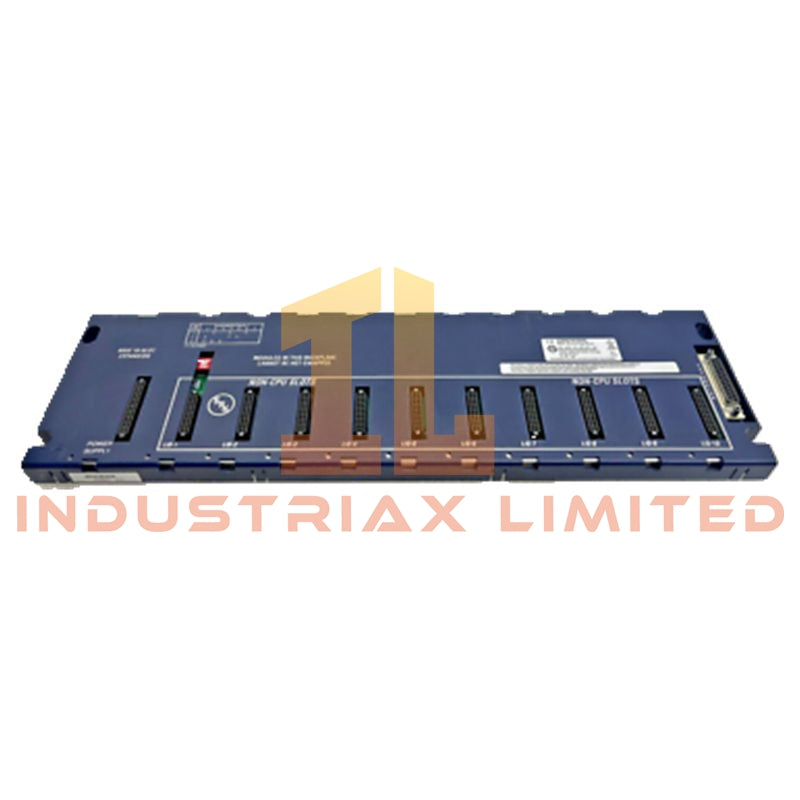

The IC694CHS392A is a 10-slot serial expansion baseplate designed for the GE Fanuc PACSystems RX3i series, providing flexible modular expansion for industrial automation systems. It supports analog, discrete, and special-function modules, allowing seamless scalability for larger control projects. A compatible serial expansion power supply is required for operation.
Technical Specifications
-
Model/Part Number: IC694CHS392A
-
Brand: GE Intelligent Platforms (GE Fanuc)
-
Series: PACSystems RX3i
-
Type: Serial Expansion Baseplate
-
Number of Slots: 10 I/O slots
-
Supported Module Types: Analog modules, discrete modules, special-function modules
-
System Type: Standard Serial Expansion I/O Backplane
-
Power Supply Requirements:
-
IC694PWR321 (120/240 VAC or 125 VDC)
-
IC694PWR330 High Capacity (120/240 VAC or 125 VDC)
-
IC694PWR331 High Capacity (24 VDC)
-
Rack Number Setting: DIP switch
-
Expansion Connector: Optional expansion cable at right end
-
Hot Swap Capability: Not supported
-
Dimensions: 5.5 in x 5.3 in x 1.0 in (14.0 cm x 13.5 cm x 2.5 cm)
-
Weight: 0.9 kg
Key Features
-
Modular Flexibility: Supports integration of multiple module types
-
Scalable Design: Expands system capacity for larger automation projects
-
Industrial Reliability: Built for robust performance in harsh environments
-
Easy Configuration: Rack number assignment via DIP switch
Applications
-
Expanding I/O for factory automation systems
-
Integrating analog and discrete signals in complex control systems
-
Connecting special-function modules such as counters or positioners
-
Modular upgrades for PACSystems RX3i controllers
FAQ
Q: Can IC694CHS392A support hot swapping?
A: No, modules cannot be inserted or removed while the backplane is powered.
Q: Does it require a specific power supply?
A: Yes, it requires one of the following: IC694PWR321, IC694PWR330, or IC694PWR331.
Q: Which module types are compatible?
A: Supports analog modules, discrete modules, and special-function modules for RX3i systems.
Q: What are the dimensions and weight?
A: Dimensions: 5.5 in x 5.3 in x 1.0 in; Weight: 0.9 kg.
