Description
Product Description

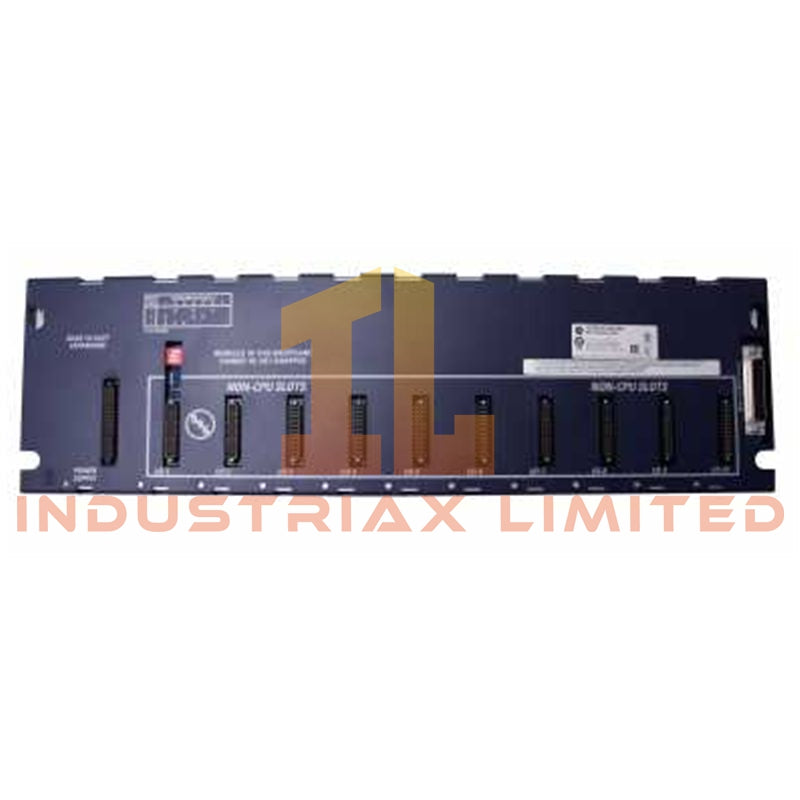

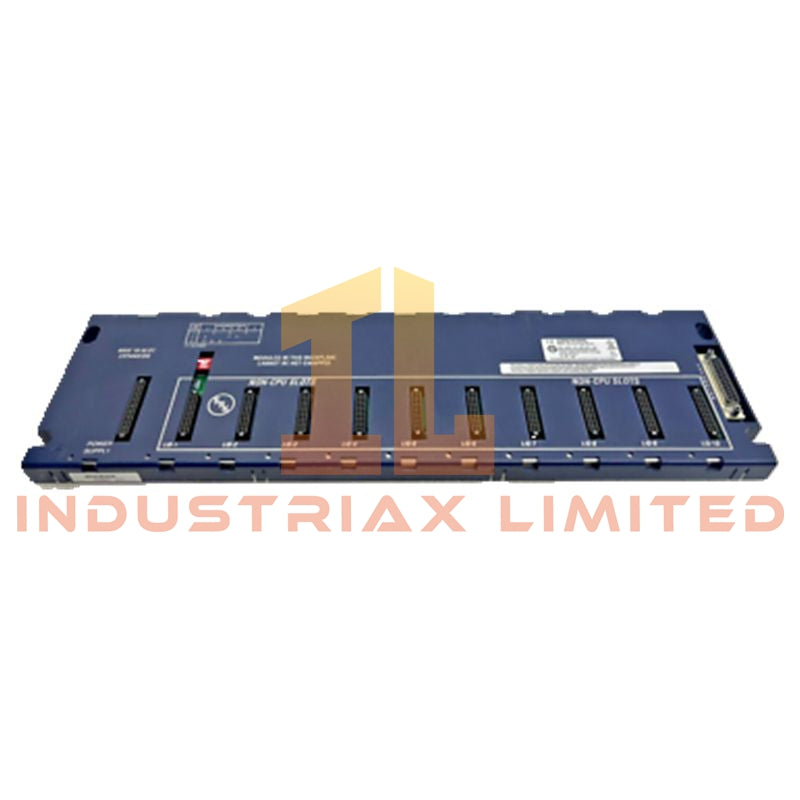

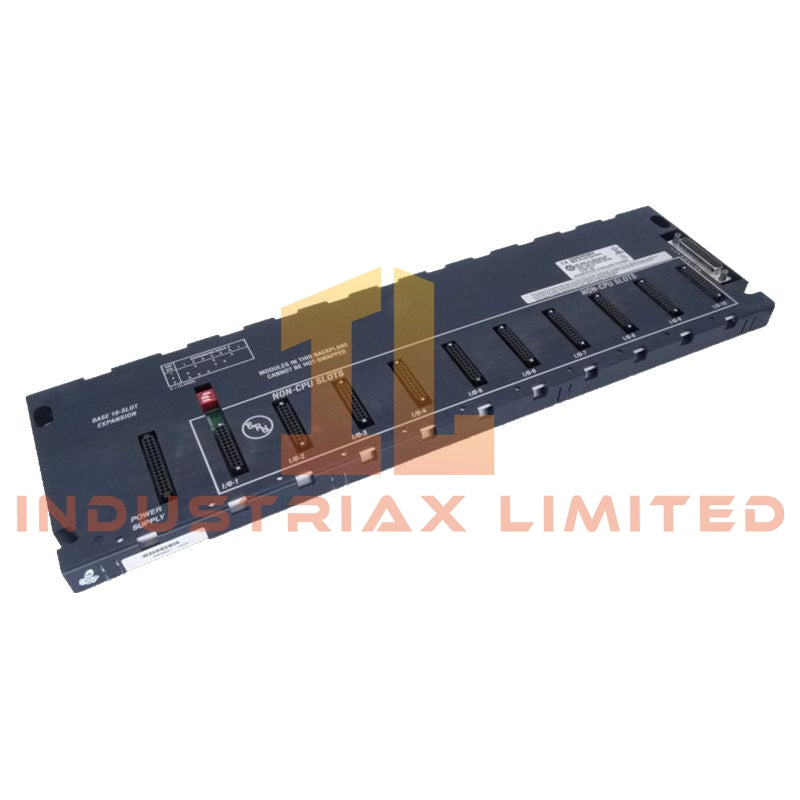

The GE IC694CHS392 is a 10-slot expansion baseplate designed for GE Fanuc PACSystems RX3i PLCs, providing a robust mechanical and electrical framework for system expansion. It accommodates up to 10 I/O or specialty modules, distributing power and signals efficiently through its universal backplane. Engineered for reliability and high-speed communication, this baseplate ensures seamless integration of analog, digital, and communication modules, supporting complex automation and process control applications.
Key Features
-
Supports up to 10 modules including analog, digital, and specialty I/O modules.
-
Universal backplane ensures compatibility with RX3i CPUs and modules.
-
Regulated power distribution across all installed modules.
-
High-speed backplane bus provides efficient module-to-CPU communication.
-
Industrial-grade construction suitable for harsh operating environments.
-
Easy to install, enabling quick expansion of multi-rack PLC systems.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE Fanuc / Emerson |
| Part Number |
IC694CHS392 |
| Product Type |
10-Slot Expansion Baseplate |
| PLC Compatibility |
PACSystems RX3i |
| Module Slots |
10 |
| Backplane Type |
Universal RX3i |
| Power Distribution |
Regulated power to installed modules |
| Communication Path |
High-speed backplane bus |
| Mounting Style |
Rack / Baseplate |
| Dimensions |
17 × 7 × 2 in (43 × 17.8 × 5.1 cm) |
| Weight |
1.5 kg |
| Operating Temperature |
0–60 °C |
| Storage Temperature |
-40 to +85 °C |
| Humidity Range |
5–95% RH, non-condensing |
Applications
-
Expanding PACSystems RX3i racks for complex automation systems.
-
Industrial manufacturing, process control, and energy distribution.
-
Transportation systems and large-scale control panels.
-
Supporting analog, digital, and specialty communication modules.
FAQ
Q: How many modules can IC694CHS392 accommodate?
A: It supports up to 10 modules, including analog, digital, and specialty I/O modules.
Q: Is it compatible with older RX3i CPUs?
A: Yes, the universal backplane ensures full compatibility with RX3i PLC CPUs and modules.
Q: Can this baseplate operate in harsh environments?
A: Yes, it is built to industrial-grade standards with reliable power and signal distribution.
Q: Can modules be hot-swapped on this baseplate?
A: Hot-swapping depends on the module type; standard RX3i I/O modules support safe insertion and removal without system shutdown.
