Product Description

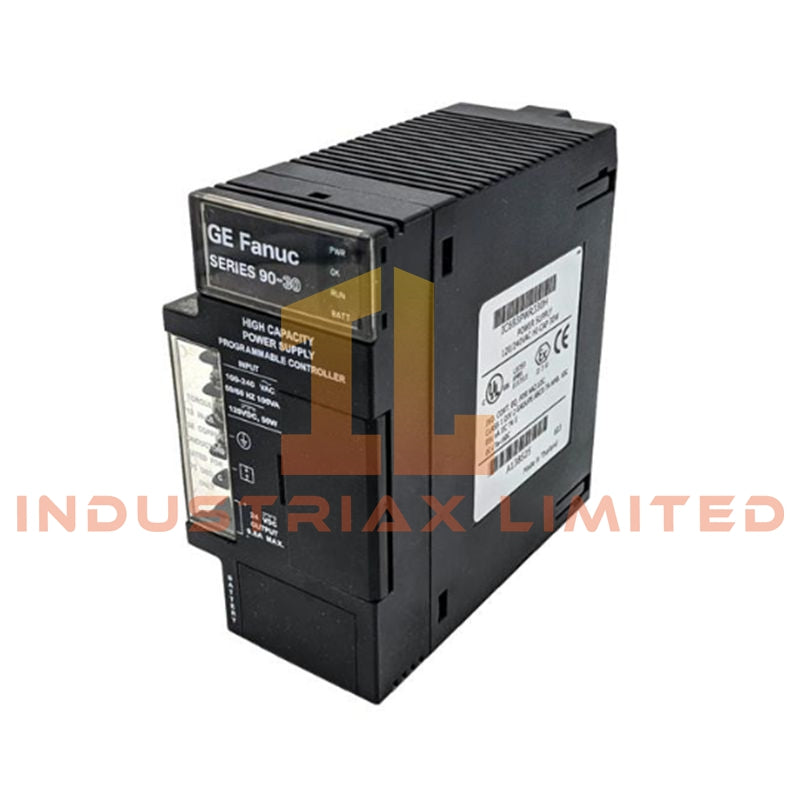

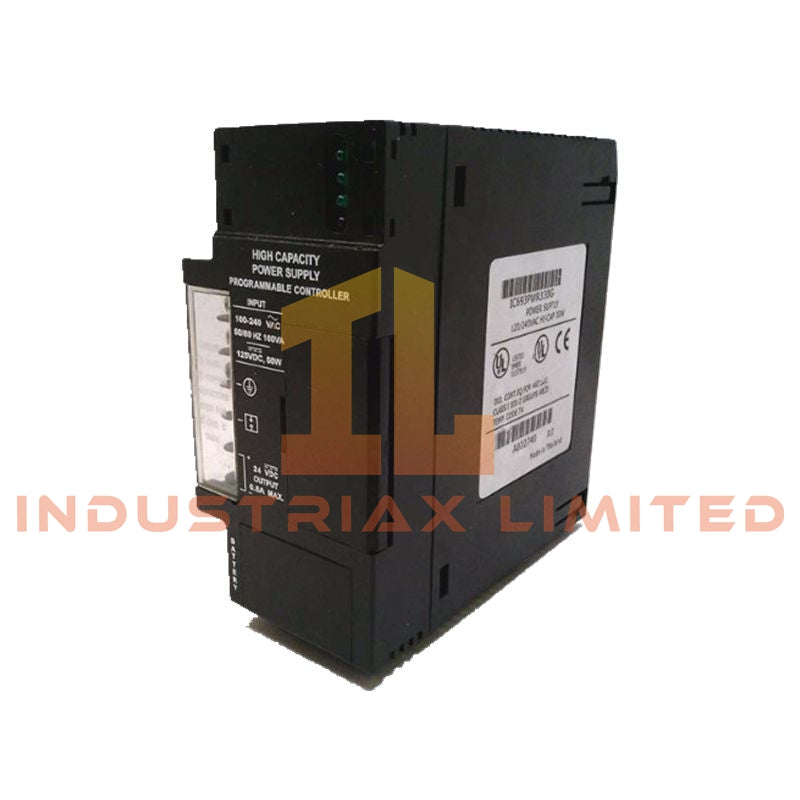

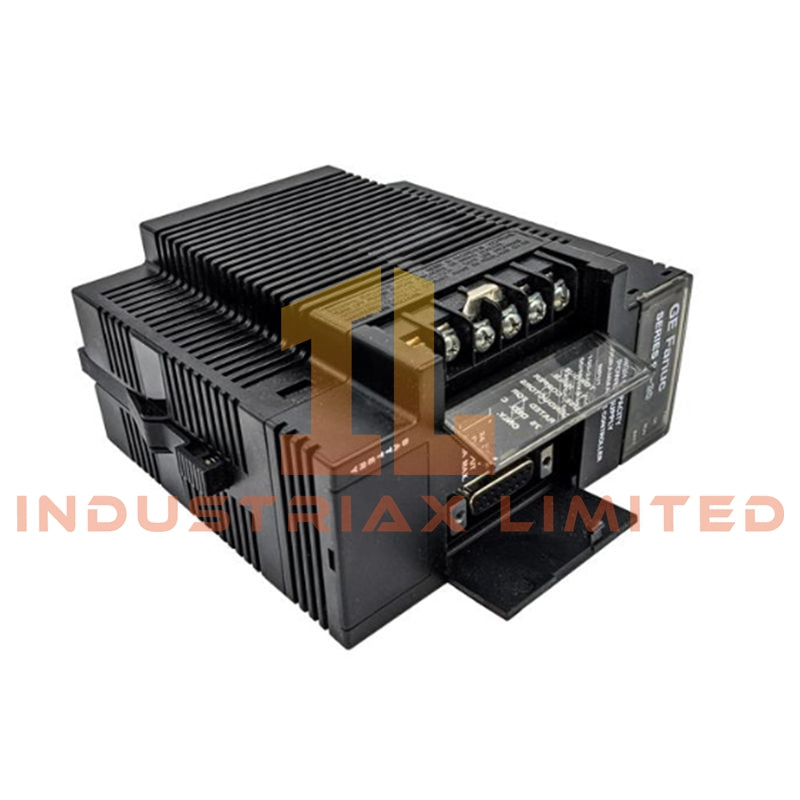

The GE Fanuc IC693PWR330 is a high-capacity power supply engineered for the Series 90‑30 PLC family. Delivering up to 30 W of regulated output, it provides reliable power to CPU, I/O, and option modules, supporting both AC and DC input ranges for versatile industrial deployment.
Designed for demanding automation systems, the IC693PWR330 features dual +24 VDC outputs—one dedicated to relay circuits and one isolated for internal/external modules. Its +5 VDC output can utilize the full 30 W capacity, making it ideal for racks with high logic or CPU loads. Auto-ranging input accommodates AC (85–264 VAC) and DC (100–300 VDC) power without manual configuration. Built-in protections, including current limiting and automatic shutdown, ensure safe operation, while smart switch fusing and diagnostics enhance reliability and maintainability. Installation is simple with the snap-in design compatible with all Series 90‑30 racks.
Technical Specifications
| Specification |
Details |
| Model |
IC693PWR330 |
| Product Type |
High-Capacity Power Supply Module |
| Product Line |
Series 90‑30 PLC |
| Input Voltage (AC) |
85–264 VAC |
| Input Voltage (DC) |
100–300 VDC |
| Output Power |
30 W maximum |
| Outputs |
+5 VDC, +24 VDC Relay, Isolated +24 VDC |
| +5 V Output Capacity |
Full 30 W |
| +24 VDC Relay Power |
Up to 15 W |
| Isolated +24 VDC |
Up to 20 W |
| Inrush Current |
4 A peak, 250 ms max |
| Holdup Time |
≥20 ms |
| Communication |
RS-485 |
| Protection |
Current limiting, overvoltage, automatic shutdown |
| Installation |
Snap-in for Series 90‑30 racks |
| Dimensions |
Standard Series 90‑30 module size |
| Weight |
1.19 lbs |
| Standards |
CE, UL certified |
| Operating Temperature |
0 °C to 60 °C |
Key Features
-
High Power Output: Full 30 W available on +5 VDC to support heavy CPU/logic loads.
-
Dual 24 VDC Supply: One dedicated to relay circuits, one isolated for flexible module powering.
-
Auto-Ranging Input: Seamlessly switches between AC and DC power sources.
-
Advanced Protection: Current limiting, smart switch fusing, and automatic shutdown prevent damage.
-
Snap-In Installation: Compatible with all Series 90‑30 racks for easy maintenance.
-
Diagnostics & Reliability: Built-in monitoring simplifies troubleshooting and ensures stable operation.
Applications
-
Medium to large Series 90‑30 PLC installations
-
Systems with high +5 V demand for CPU and logic modules
-
Industrial control cabinets with mixed AC/DC power sources
-
Automation environments requiring reliable backup power and fault protection
FAQ
Q: Can the IC693PWR330 power multiple CPU and I/O modules simultaneously?
A: Yes, it is designed to supply power across the entire Series 90‑30 rack while providing full 30 W on +5 VDC.
Q: Does it require manual voltage switching for AC or DC input?
A: No, the module auto-ranges and automatically adapts to AC or DC input within specification.
Q: What protections are included?
A: Features current limiting, overvoltage protection, and automatic shutdown to prevent damage.
Q: Is it compatible with standard Series 90‑30 racks?
A: Yes, installation uses the standard snap-in design compatible with all Series 90‑30 racks.
