Description
Overview

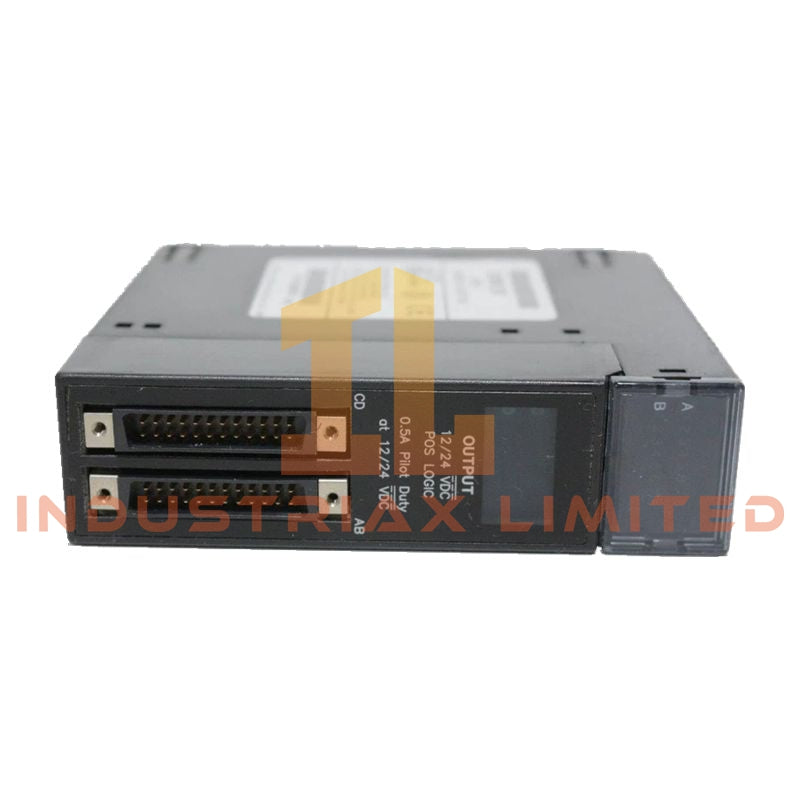

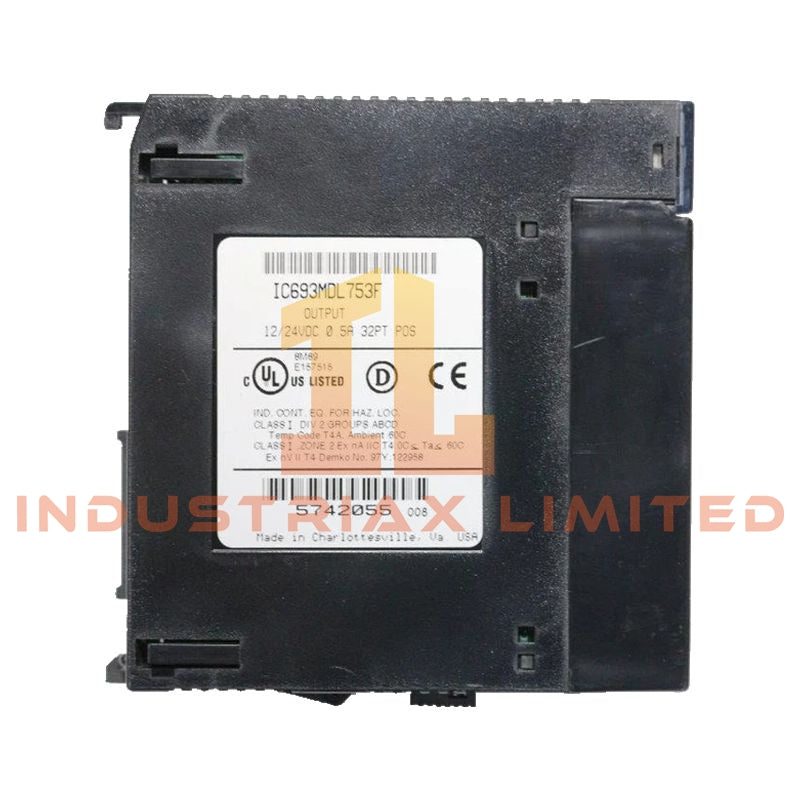

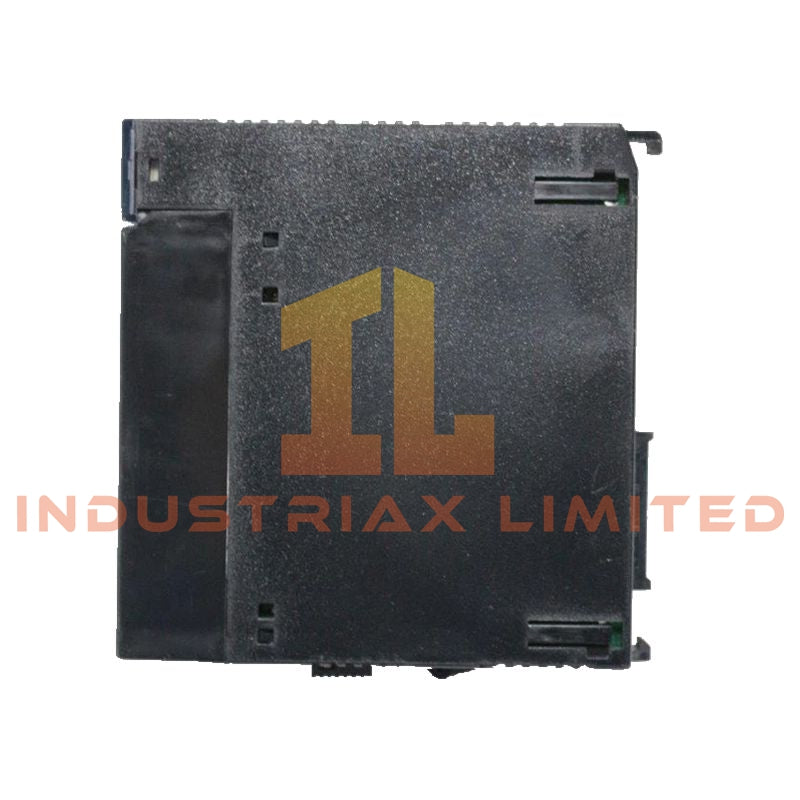

The IC693MDL753 is a high-density discrete output module for the Series 90‑30 PLC family. It provides 32 DC output channels with positive logic, designed to drive solenoids, relays, indicator lamps, and other 24 VDC field devices. Its solid-state design ensures long-term reliability and fast response for critical industrial applications.
Technical Specifications
-
Model/Part Number: IC693MDL753
-
Brand: GE Fanuc (Emerson Automation)
-
Series: Series 90‑30 PLC
-
Module Type: Discrete Output Module (DC Positive Logic)
-
Output Channels: 32 points
-
Nominal Output Voltage: 24 VDC
-
Output Voltage Range: 20–30 VDC
-
Logic Type: Positive logic (outputs energized when logic is high)
-
Maximum Output Current: 0.5 A per point, 16 A total per module
-
Output Grouping: 4 isolated groups of 8 points each with separate commons
-
Isolation: Group-to-group electrical isolation
-
Switching Device: Solid-state transistor outputs
-
Response Time: < 1 ms ON/OFF
-
Backplane Current Draw: ~300 mA @ 5 VDC
-
Terminal Block Options: IC693CHS397 (box-style) or IC693CHS398 (spring-style)
-
Indicators: 32 green LEDs for channel status
-
Inrush Capability: 5.4 A for 10 ms
-
Voltage Drop: 0.3 VDC typical when ON
-
Isolation Between Field and Logic: 1500 V RMS
-
Operating Temperature: 0–60 °C
-
Weight: 0.5 kg
Key Features
-
High-density module with 32 outputs in a single slot, optimizing rack space
-
Solid-state design delivers fast switching and long service life
-
Group isolation enhances safety and minimizes interference between output channels
-
Quick visual diagnostics through individual LEDs
-
Suitable for high-speed and precision control applications
Applications
-
Driving solenoids and relays in manufacturing systems
-
Switching indicator lamps, alarms, or other 24 VDC actuators
-
Motion control, material handling, and automated machinery requiring precise output control
FAQ
Q: How many outputs per module?
A: The IC693MDL753 provides 32 independent output channels.
Q: What is the maximum current per channel?
A: Each output supports up to 0.5 A, with a total of 16 A per module.
Q: Are outputs isolated?
A: Yes, the module is divided into 4 isolated groups of 8 points each.
Q: What terminal blocks are compatible?
A: IC693CHS397 (box-style) and IC693CHS398 (spring-style) are supported.
