Description
Overview

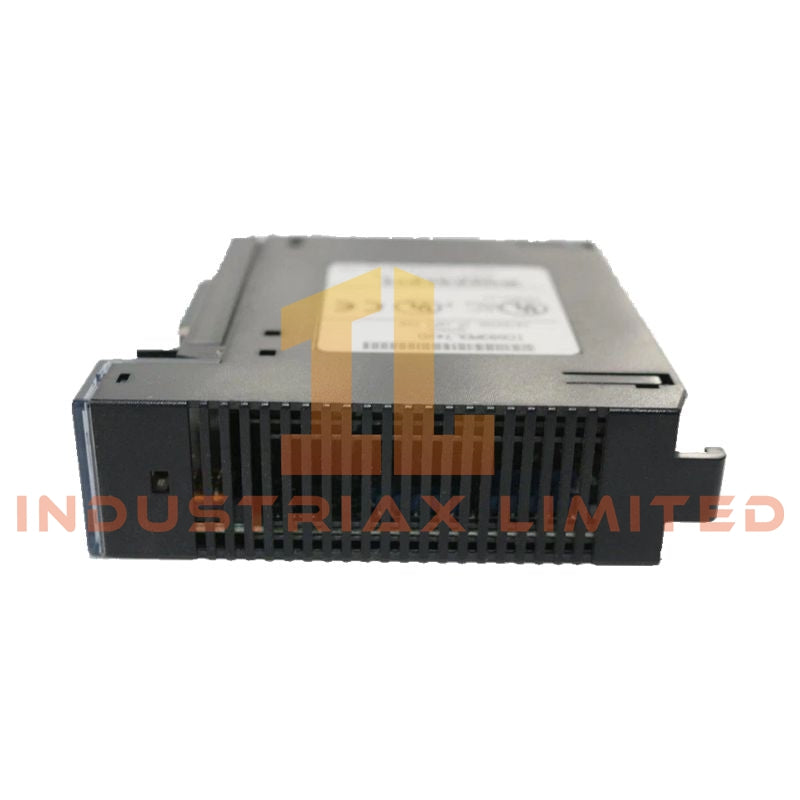

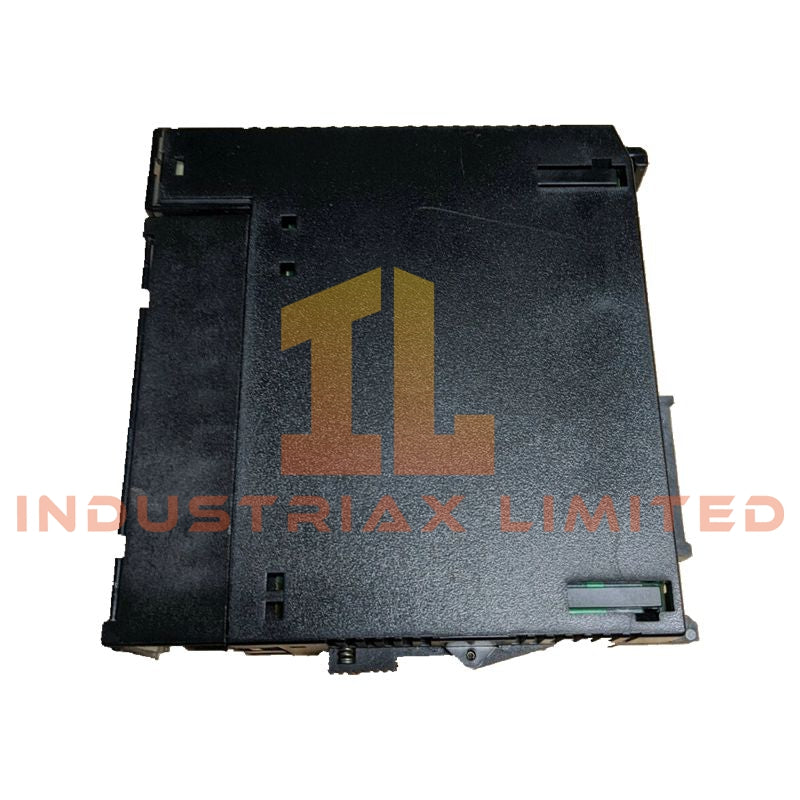

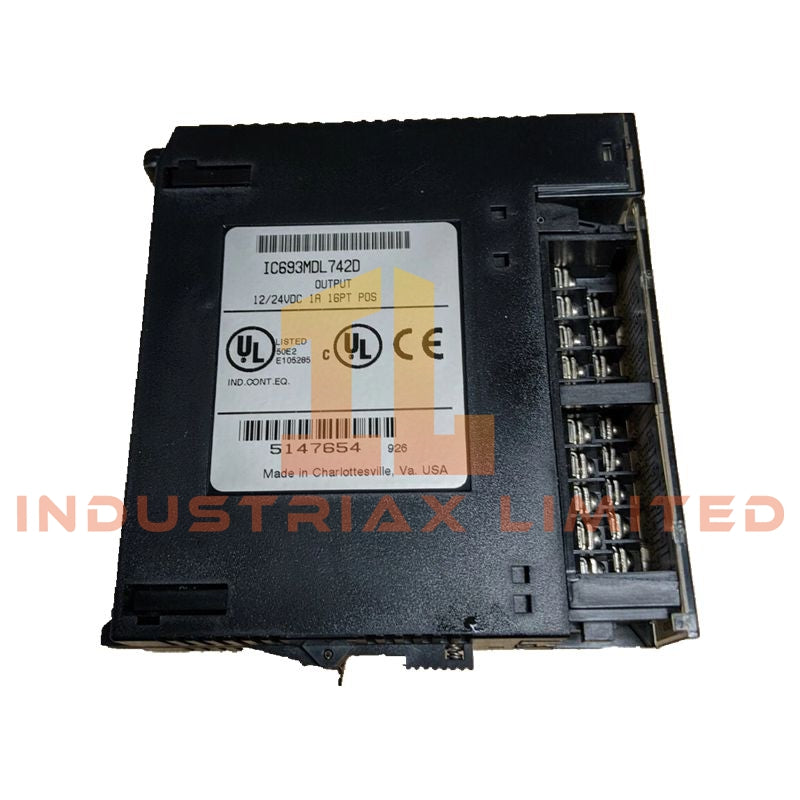

The IC693MDL742 is a discrete output module for the Series 90‑30 PLC family, offering 16 AC output points at 120 VAC. Designed for controlling solenoids, relays, lamps, and other AC-powered field devices, this module ensures precise switching, rapid response, and high reliability in industrial automation applications.
Technical Specifications
-
Model/Part Number: IC693MDL742
-
Manufacturer: GE Fanuc (Emerson Automation)
-
Series: Series 90‑30 PLC
-
Module Type: AC Discrete Output Module
-
Number of Channels: 16 output points
-
Nominal Output Voltage: 120 VAC
-
Output Voltage Range: 85–132 VAC
-
Output Current: 0.5 A per point (max), 6 A per group, 12 A total per module
-
Output Groups: 2 isolated groups of 8 points each with separate commons
-
Switching Device: Triac outputs for reliable AC control
-
Response Time: < 1 ms typical; max ON/OFF 2 ms
-
Backplane Current Draw: ~90 mA @ 5 VDC
-
Indicators: 16 green LEDs showing ON/OFF status for each channel
-
Isolation: 1500 VAC field-to-logic; 500 VAC between groups
-
Terminal Block Options: Removable for simplified wiring
-
Operating Temperature: 0–60 °C
-
Relative Humidity: 5–95% non-condensing
-
Weight: 0.56 lbs
Key Features
-
Supports reliable switching of AC field devices including relays, solenoids, and lamps
-
Two isolated output groups minimize interference and enhance safety
-
LED indicators provide immediate visual feedback for troubleshooting and monitoring
-
Compact single-slot design fits any Series 90‑30 I/O rack
-
High durability ensures performance in demanding industrial environments
Applications
-
Driving AC solenoids, relays, contactors, and lighting circuits in PLC-controlled systems
-
Process control lines requiring fast response AC outputs
-
Integration in medium-density I/O setups within Series 90‑30 PLC racks
FAQ
Q: What AC voltage range does IC693MDL742 support?
A: Nominal 120 VAC with operational range from 85–132 VAC.
Q: How many isolated output groups are included?
A: Two groups of 8 points each with separate commons.
Q: What is the typical response time?
A: Less than 1 ms for ON/OFF switching; maximum response is 2 ms.
Q: Is this module compatible with Series 90‑30 PLCs?
A: Yes, fully compatible with all Series 90‑30 I/O racks.
