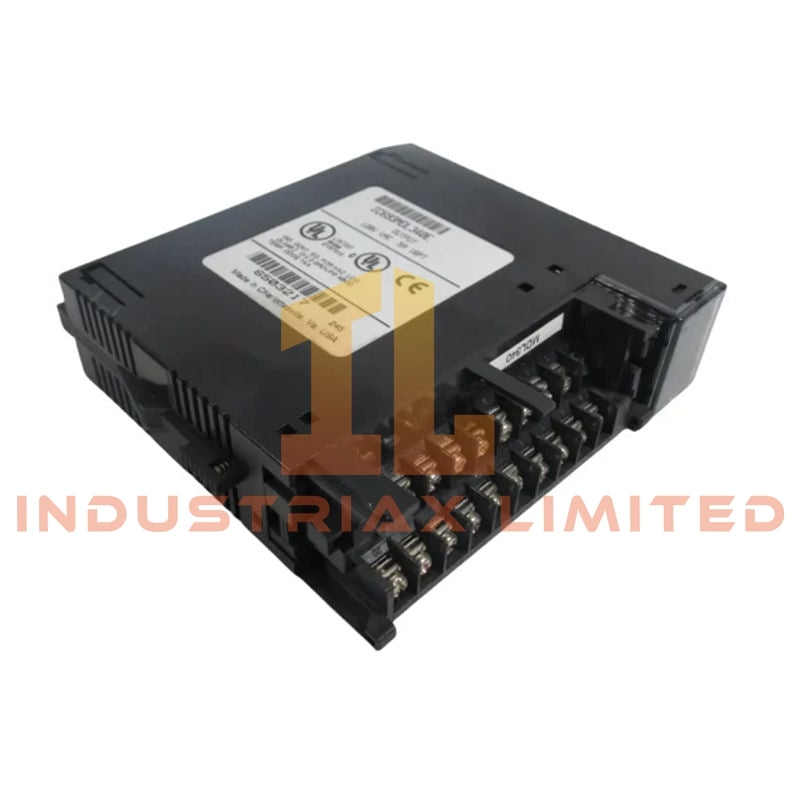

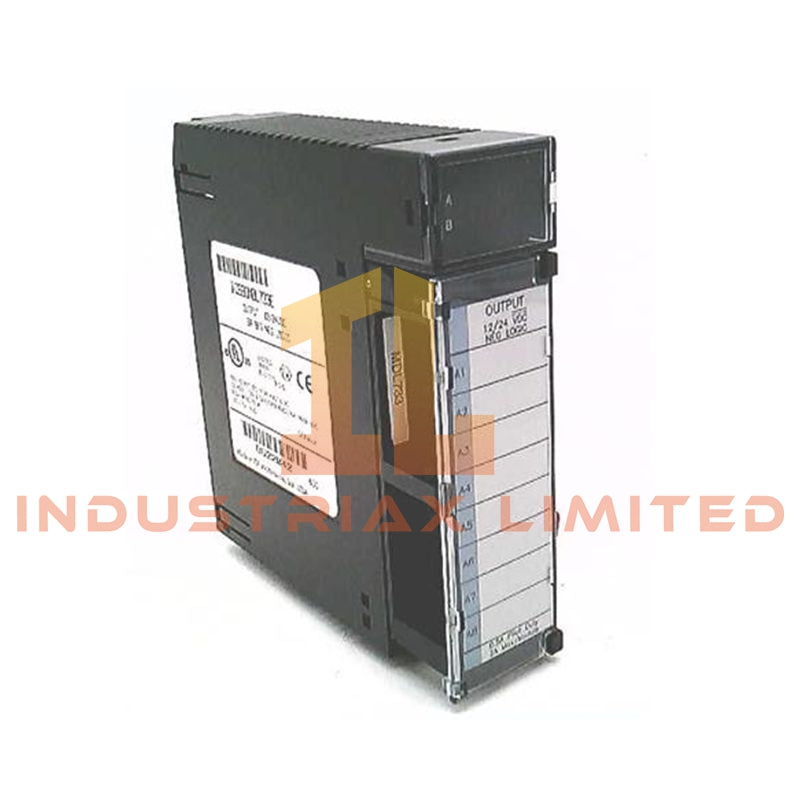

The GE IC693MDL733 is a 32-point DC output module engineered for the GE Fanuc Series 90-30 PLC platform. It provides isolated DC outputs to control field devices such as solenoids, relays, and indicator lamps. Each output channel is optically isolated from the PLC logic for enhanced protection, and individual LED indicators allow fast monitoring and troubleshooting. Designed for standard Series 90-30 rack installation, this module offers fast switching performance and robust protection against short circuits and electrical noise.
Technical Specifications
| Feature |
Specification |
| Model |
IC693MDL733 |
| Module Type |
32-Point DC Discrete Output Module |
| System Compatibility |
GE Fanuc Series 90-30 PLC |
| Number of Outputs |
32 isolated channels |
| Output Voltage Range |
12–24 VDC |
| Output Current Capacity |
0.5 A per point max, 16 A per module total |
| Isolation |
Optical isolation between field outputs and PLC logic |
| Output Type |
DC discrete on/off signals |
| Response Time |
0.5 ms typical |
| Connector Type |
Removable terminal block |
| Mounting |
Standard Series 90-30 rack slot |
| Indicators |
Individual LEDs for each output channel |
| Protection |
Electronic short-circuit protection and noise immunity |
| Lifecycle Status |
Legacy product (available via industrial suppliers) |
| Weight |
0.75 lbs |
Key Features
-
32-channel DC output module for dense applications
-
Optical isolation safeguards PLC logic from field disturbances
-
LED indicators for simple monitoring and diagnostics
-
Fast response time (0.5 ms typical) for reliable switching
-
Supports low-voltage DC loads like solenoids, relays, and indicator lamps
-
Direct rack integration with Series 90-30 systems
Applications
-
Driving DC relays, solenoids, and indicator lamps in industrial automation
-
Large-scale systems requiring multiple DC outputs
-
Manufacturing lines and process control setups with Series 90-30 PLCs
-
Scenarios needing reliable, isolated DC switching
FAQ
Q: What voltage range does the IC693MDL733 support?
A: It operates from 12–24 VDC per output channel.
Q: Are the outputs isolated?
A: Yes, each output is optically isolated to protect PLC logic from field signals.
Q: Can it be used for AC loads?
A: No, this module is designed exclusively for DC loads.
Q: Is it suitable for new installations?
A: The module is a legacy component; for new systems, consider PACSystems RX3i DC output modules.
