Description
Product Description

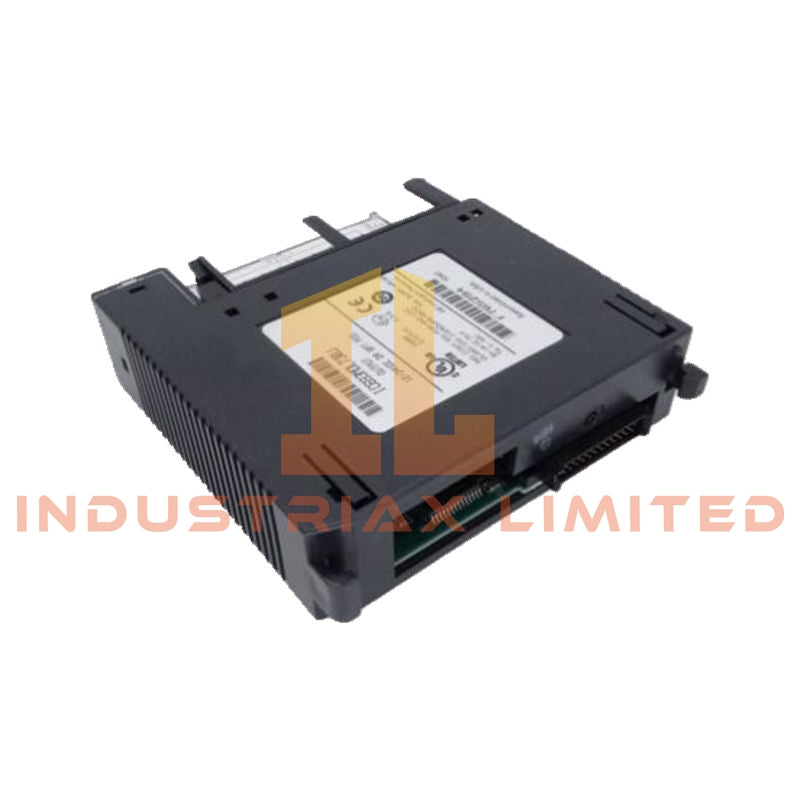

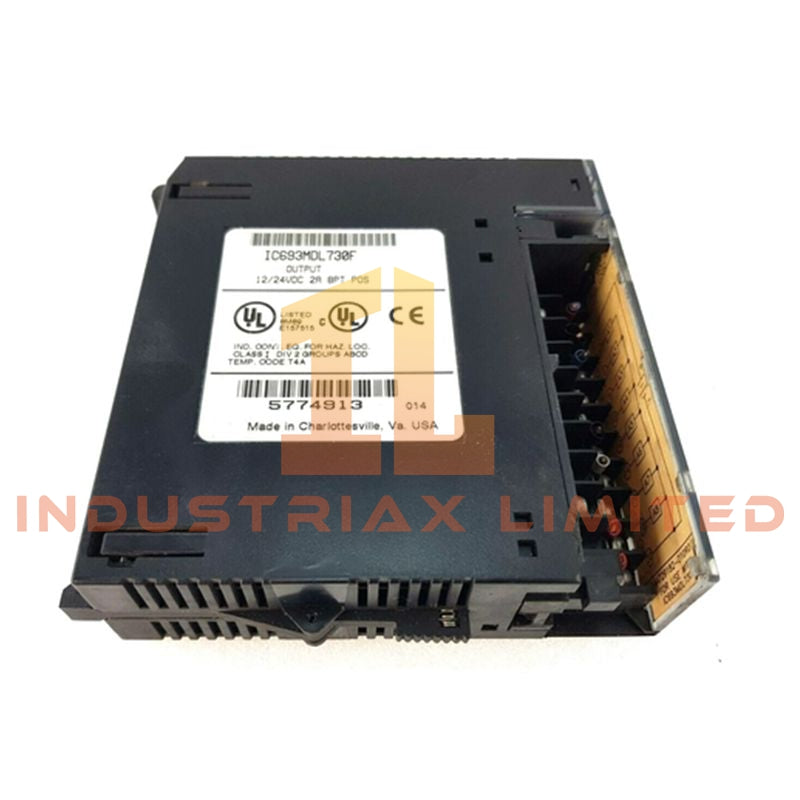

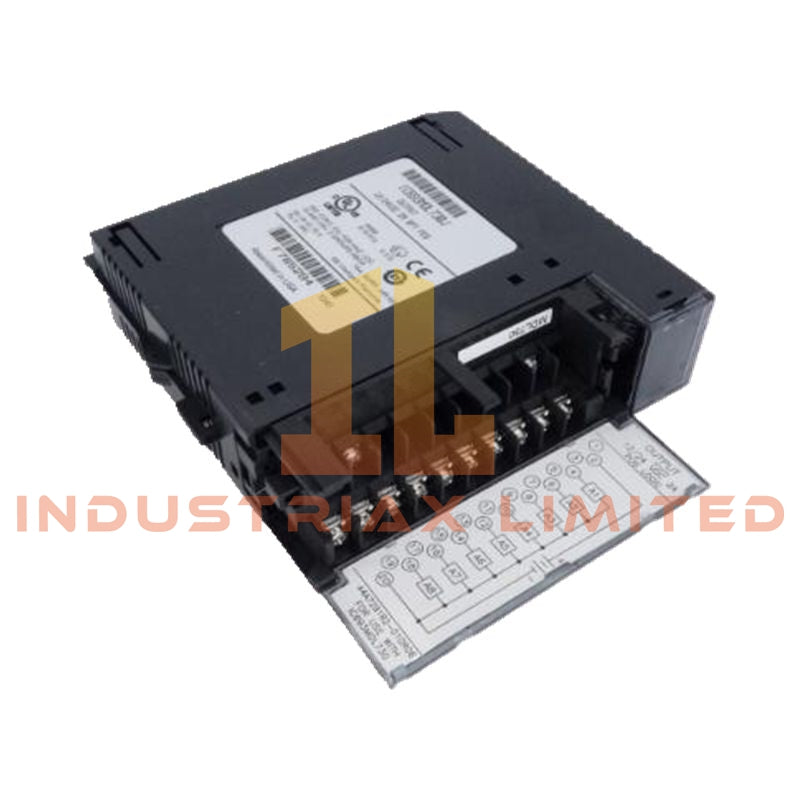

The GE IC693MDL730 is a high-density DC input module designed for the GE Fanuc Series 90-30 PLC platform. It provides 32 isolated input channels for low-voltage DC signals, ensuring reliable detection and electrical isolation between field devices and PLC logic. Each channel includes individual LED indicators for straightforward monitoring and troubleshooting. Engineered for standard Series 90-30 rack installation, this module is ideal for applications requiring a large number of DC inputs and robust signal integrity.
Technical Specifications
| Feature |
Specification |
| Model |
IC693MDL730 |
| Module Type |
32-Point DC Discrete Input Module |
| System Compatibility |
GE Fanuc Series 90-30 PLC |
| Number of Inputs |
32 isolated channels |
| Input Voltage Range |
12–24 VDC nominal |
| Input Current |
~7 mA per channel |
| Isolation |
1500 V optical isolation between field inputs and PLC logic |
| Input Type |
DC discrete on/off signals |
| Response Time |
10 ms typical |
| Connector Type |
Removable terminal block |
| Mounting |
Standard Series 90-30 rack slot |
| Indicators |
Individual LEDs for each input channel |
| Protection |
Input filtering and isolation for noise immunity |
| Backplane Current Draw |
55 mA (all outputs active) |
| Output Characteristics |
Transistor output, 2 A per point, max inrush 9.4 A for 10 ms |
| Lifecycle Status |
Discontinued/Obsolete, still available through suppliers |
| Weight |
0.75 lbs |
Key Features
-
32-channel design for dense DC input applications
-
Optical isolation to protect PLC logic from electrical interference
-
Individual LED indicators for easy input status verification
-
Fast response time (10 ms typical) for responsive DC signal detection
-
Directly compatible with Series 90-30 rack architecture
Applications
-
Monitoring low-voltage DC switches, sensors, and relays
-
Industrial automation setups requiring multiple DC inputs
-
Manufacturing and process control systems based on Series 90-30 PLCs
-
Situations where signal isolation and reliable detection are critical
FAQ
Q: What input voltage does the IC693MDL730 support?
A: It accepts 12–24 VDC per input channel.
Q: Is the module optically isolated?
A: Yes, each input is isolated from the PLC logic for protection.
Q: Can it detect AC signals?
A: No, this module is DC-only. AC signals require a separate AC input module.
Q: Is this a current product?
A: It is a legacy component; newer PACSystems RX3i DC input modules are recommended for new installations.
