Product Description

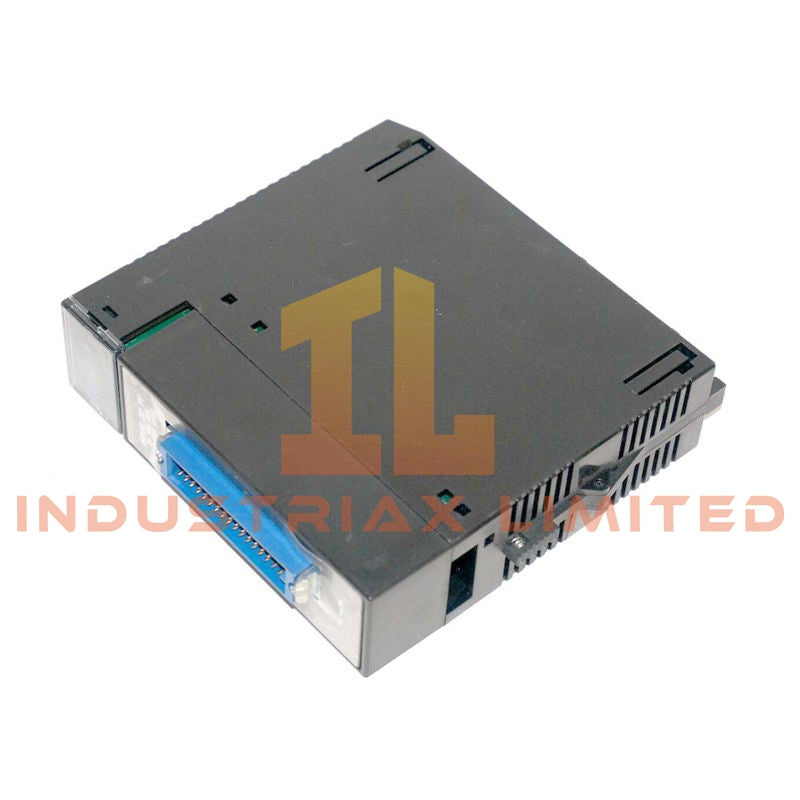

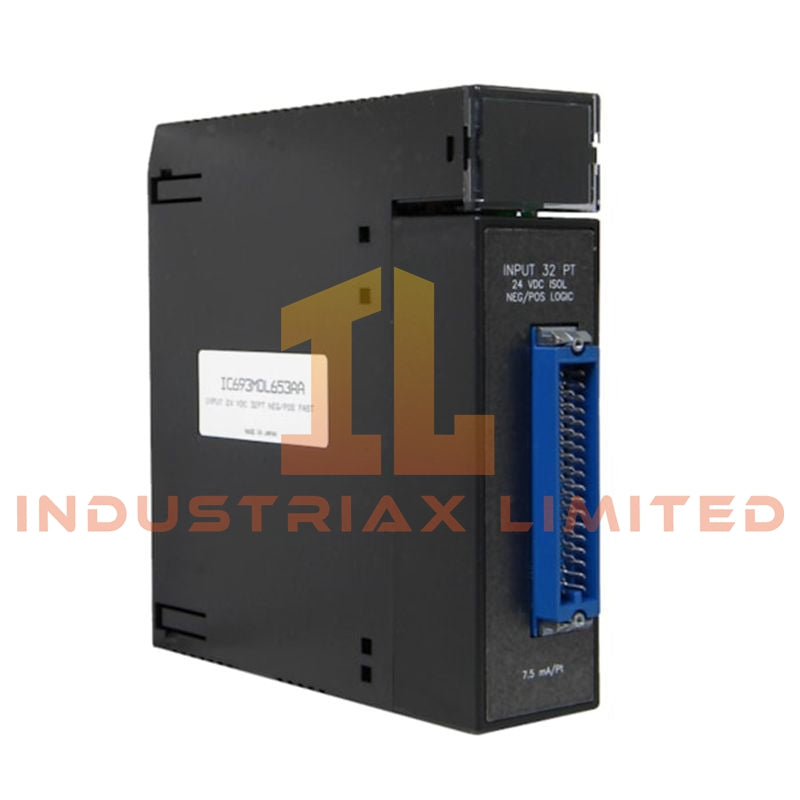

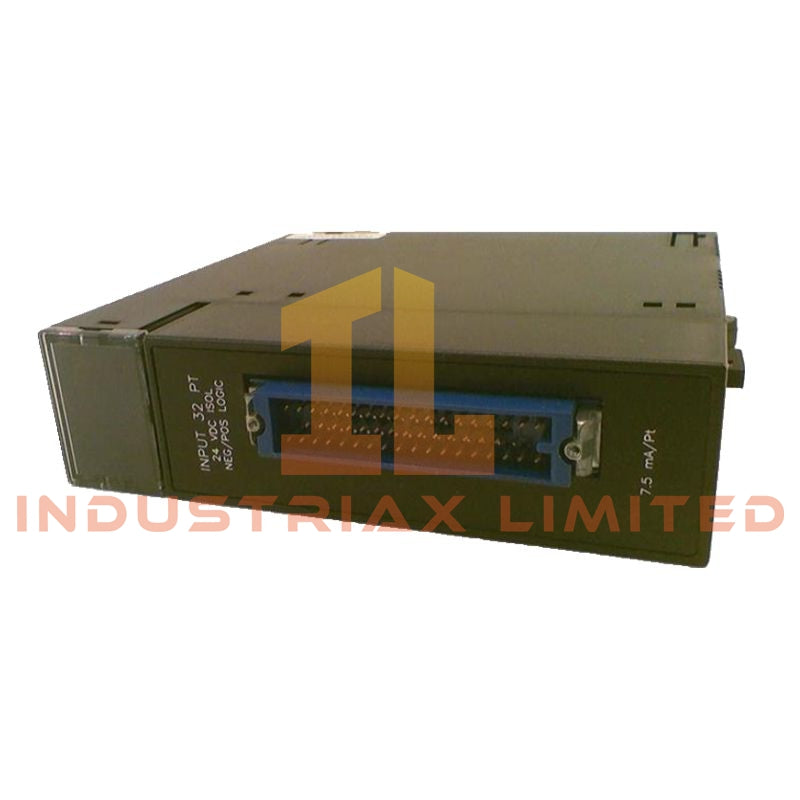

The IC693MDL653 from GE Fanuc is a 32-point discrete input module designed for the Series 90‑30 PLC family. Supporting both positive (sourcing) and negative (sinking) logic, this module delivers flexible DC input integration for a variety of 24 V field devices.

Its architecture features four isolated groups of eight inputs, each with two shared commons, providing partial isolation and enhanced noise immunity. Field connections are made via a 50‑pin high-density Honda-style connector, with optional pre-wired GE cables for simplified installation. The module does not include individual input status LEDs and can be mounted in any slot of a 5-slot or 10-slot Series 90‑30 baseplate.

Technical Specifications

Electrical Characteristics

• Rated Voltage: 24 VDC

• Input Voltage Range: 19.2–28.8 VDC (+10%, –20%)

• Input Current: 7.5 mA at rated voltage (average)

• On-State Voltage: ≥ 15 VDC

• Off-State Voltage: ≤ 6 VDC

• On-State Current: ≥ 4.5 mA

• Off-State Current: ≤ 2 mA

Channel & Group Configuration

• Total Inputs: 32 points

• Groups: 4 groups of 8 inputs each

• Commons: 2 per group (internally tied)

• Logic Support: Positive and Negative

• Isolation: 1500 V between field side and logic side

Response Times

• ON Response Time: ≤ 2 ms

• OFF Response Time: ≤ 2 ms

Power Consumption

• Backplane Current Draw: 5 mA @ 5 VDC (16 inputs ON)

• Maximum Simultaneous Inputs ON: 16 recommended to maintain thermal limits

Mechanical & Installation

• Connector: 50-pin high-density Honda connector

• Mounting: Any I/O slot in 5-slot or 10-slot Series 90‑30 baseplate

• Dimensions: 142 × 30 × 130 mm

• Weight: 0.30 kg

Field Device Compatibility

• Pushbuttons

• Limit switches

• Proximity sensors

• Electronic switches

Additional Notes

• No individual input status LEDs

• External 24 VDC field power required

• Pre-wired GE cables available for rapid installation

Applications

• High-density 24 VDC discrete input acquisition

• Integration with PLC control in manufacturing lines

• Interface with sensors, switches, and low-power electronic devices

FAQ

Q: Can the module handle both sourcing and sinking devices?
A: Yes, the IC693MDL653 supports positive (sourcing) and negative (sinking) logic inputs.

Q: How many inputs can be active simultaneously?
A: Up to 16 inputs ON are recommended to avoid thermal overload.

Q: Does this module provide individual input LEDs for diagnostics?
A: No, the IC693MDL653 does not include input status LEDs.
