Description
Product Description

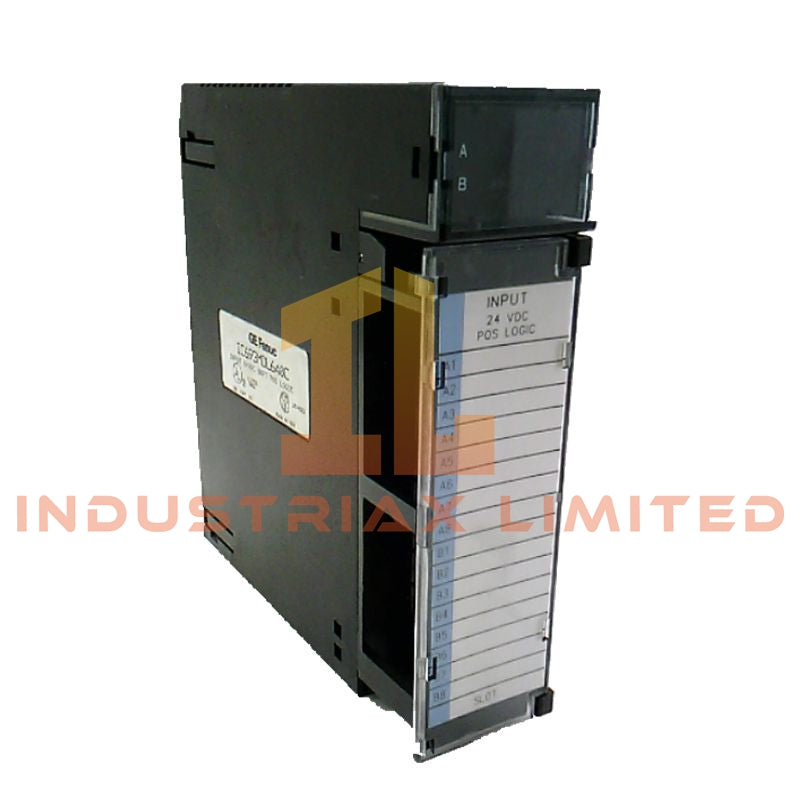

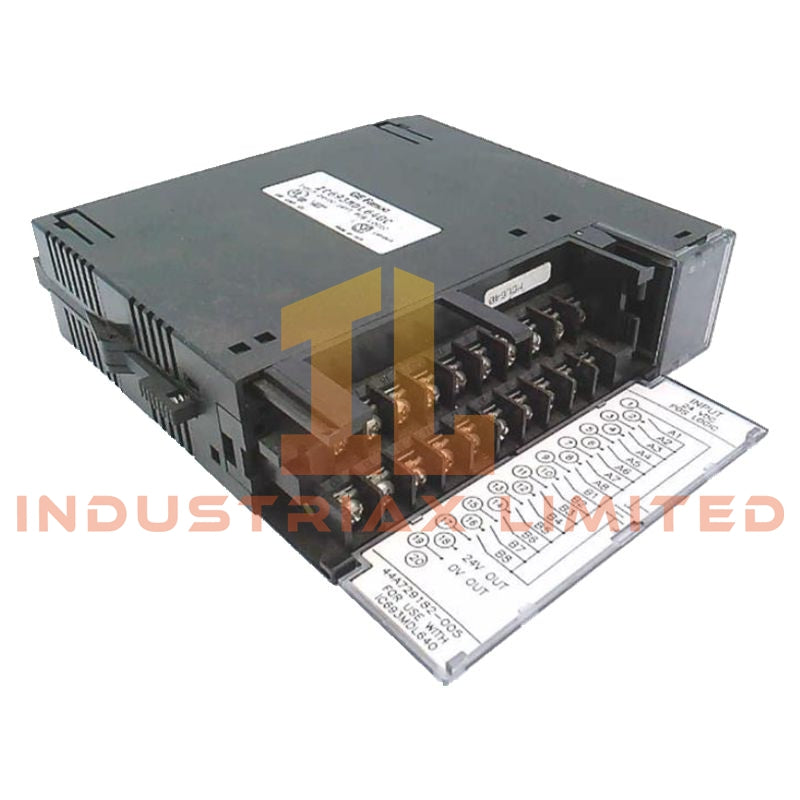

The IC693MDL640 is a 16-point positive logic input module designed for the GE Fanuc Series 90‑30 PLC platform. It provides reliable digital input acquisition for industrial control systems, ensuring high signal integrity and robust isolation between field inputs and logic circuits.
Each input channel is rated for 0–30 VDC operation and can handle standard 24 VDC field devices. The module features 16 individual LEDs for real-time status monitoring and offers typical response times of 7 ms, allowing fast and accurate processing of control signals. Isolation between the field side and the logic side is rated at 1500 VAC RMS, protecting sensitive logic from electrical interference.
This module is compact, lightweight, and suitable for use in harsh industrial environments where dependable digital input performance is required.
Technical Specifications
| Parameter |
Specification |
| Model |
IC693MDL640 |
| Manufacturer |
GE Fanuc / Emerson |
| Product Line |
Series 90-30 |
| Product Type |
Digital Input Module |
| Logic Type |
Positive Logic |
| Number of Inputs |
16 |
| Rated Input Voltage |
24 VDC |
| Input Voltage Range |
0–30 VDC |
| Input Current |
15–30 mA (typical) |
| Isolation |
1500 VAC RMS (field-to-logic) |
| Power Consumption |
5–120 V |
| Response Time |
7 ms typical |
| Status LEDs |
16, one per channel |
| Weight |
0.71 lbs |
| Mounting |
Backplane installation |
Key Features & Advantages
-
16 fully isolated positive logic inputs for robust signal acquisition
-
Individual LEDs for per-channel status and diagnostics
-
Fast response time (~7 ms) for time-critical applications
-
High-voltage isolation ensures protection against field-side transients
-
Compatible with Series 90-30 PLC systems
-
Lightweight and compact, simplifying panel integration
Applications
-
Machine automation and control systems
-
Input monitoring for discrete sensors and switches
-
Industrial control panels in manufacturing, packaging, and processing plants
-
Upgrade or replacement module for Series 90-30 systems
FAQ
Q: What logic type does this module use?
A: The IC693MDL640 operates using positive logic, compatible with standard 24 VDC industrial inputs.
Q: How many inputs does it support?
A: The module supports 16 individual digital inputs.
Q: Can this module protect against electrical interference?
A: Yes, it features 1500 VAC RMS isolation between field inputs and the logic side.
