Product Description

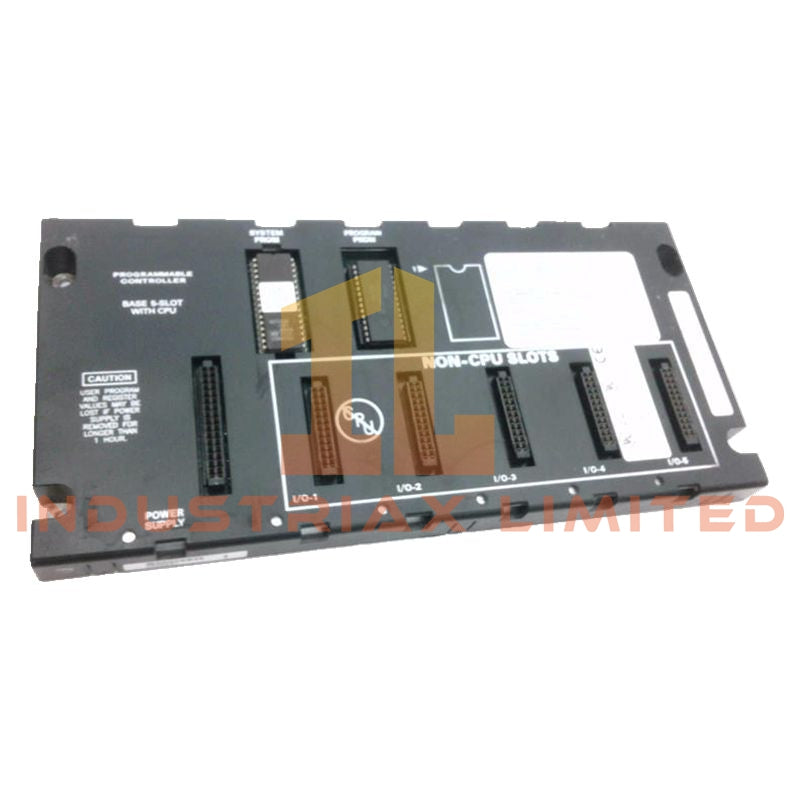

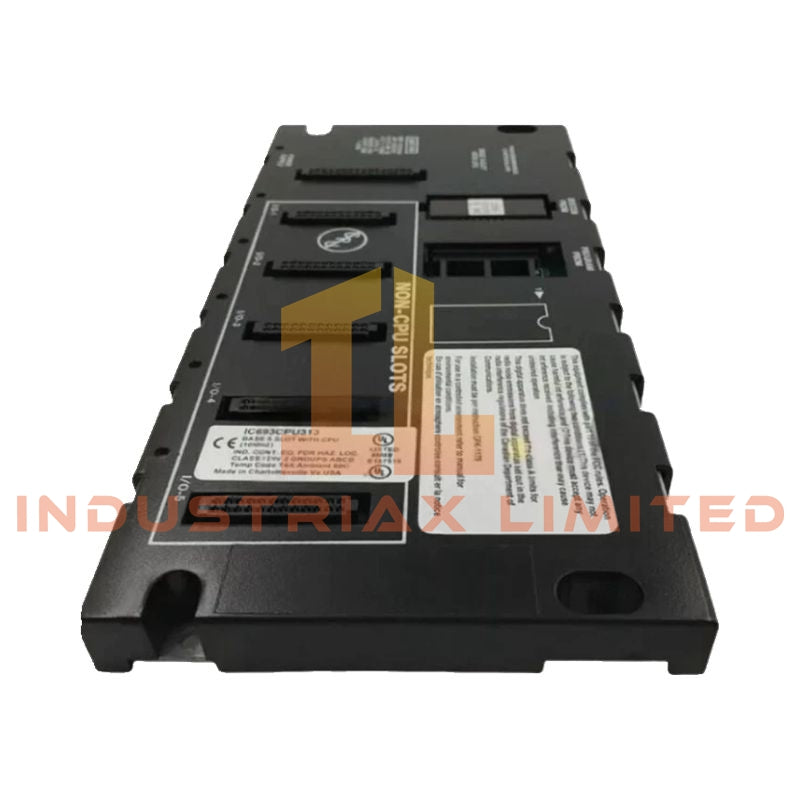

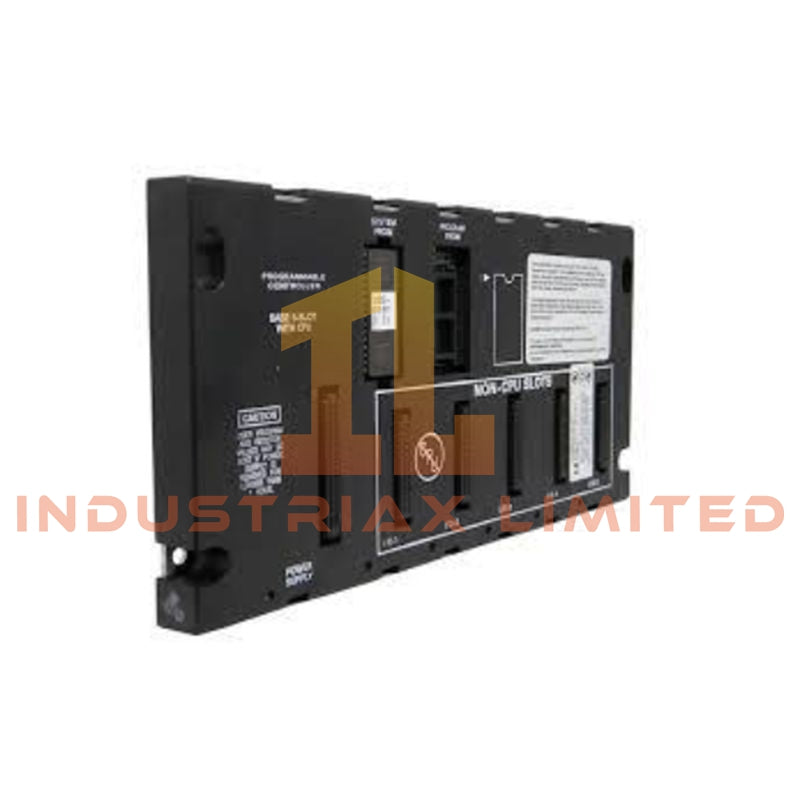

The IC693CPU313 is a compact embedded Turbo CPU integrated with a 5-slot baseplate, designed for the GE Fanuc Series 90‑30 PLC systems. Featuring an Intel 80188 processor running at 10 MHz, it delivers a rapid 0.6 ms scan rate per 1K Boolean instructions, making it ideal for small to mid-sized automation projects that require reliable discrete and analog control without additional expansion racks.
This embedded CPU/baseplate combination includes 12 KB of user memory, supports up to 160 discrete inputs and 160 discrete outputs, and provides built-in SNP and SNP‑X serial communication for streamlined integration. Its simple architecture and minimal footprint make it suitable for compact control panels, while its proven reliability ensures widespread deployment in industrial, utility, and manufacturing environments.
Technical Specifications
| Parameter |
Specification |
| Model |
IC693CPU313 |
| Manufacturer |
GE Fanuc / Emerson |
| Product Line |
Series 90-30 |
| Product Type |
Embedded Turbo CPU Baseplate |
| Weight |
1.26 lb |
| Processor |
Intel 80188 Turbo CPU |
| Clock Speed |
10 MHz |
| User Memory |
12 KB |
| Register Memory (%R) |
1024 words |
| Discrete Global Memory (%G) |
1280 bits |
| Internal Coils (%M) |
1024 bits |
| Temporary Coils (%T) |
256 bits |
| System Status Bits (%S) |
128 bits |
| Analog Inputs (%AI) |
64 words |
| Analog Outputs (%AQ) |
32 words |
| Discrete Inputs |
160 points |
| Discrete Outputs |
160 points |
| Total System I/O |
Up to 4000 points (system-dependent) |
| Baseplate |
5-slot embedded CPU baseplate (non-expandable) |
| Communication |
1 built-in serial port (via power supply connector) |
| Supported Protocols |
SNP slave, SNP‑X slave |
| LAN Options |
Ethernet, FIP, Profibus, GBC, GCM, GCM+ via modules |
| Backplane Current Draw |
430 mA @ 5 VDC |
| Operating Temperature |
0–60 °C (32–140 °F) |
| Storage Temperature |
–40–85 °C |
| Dimensions |
122 × 82 × 60 mm |
| Expansion |
None |
| Lifecycle Status |
Discontinued / Legacy Controller |
Key Features & Advantages
-
Integrated CPU and baseplate reduces system footprint
-
Fast 0.6 ms scan per 1K Boolean instructions for rapid logic processing
-
Supports up to 4000 I/O points in expanded systems
-
Ideal for compact control panels with limited space
-
Widely deployed legacy controller with proven reliability
-
Built-in serial communication for SNP/SNP‑X protocols
Applications
-
Small-to-medium industrial automation systems
-
Utility process control panels
-
Manufacturing systems requiring discrete and analog I/O management
-
Compact machine control where footprint and reliability are critical
FAQ
Q: How many I/O points can the IC693CPU313 handle?
A: It supports 160 discrete inputs and 160 discrete outputs; system expansions allow up to 4000 points.
Q: What is the typical scan rate of this CPU?
A: 0.6 ms per 1K Boolean instructions.
Q: Can this baseplate be expanded with additional slots?
A: No, it is a fixed 5-slot embedded CPU baseplate without expansion.
