Description
Product Description

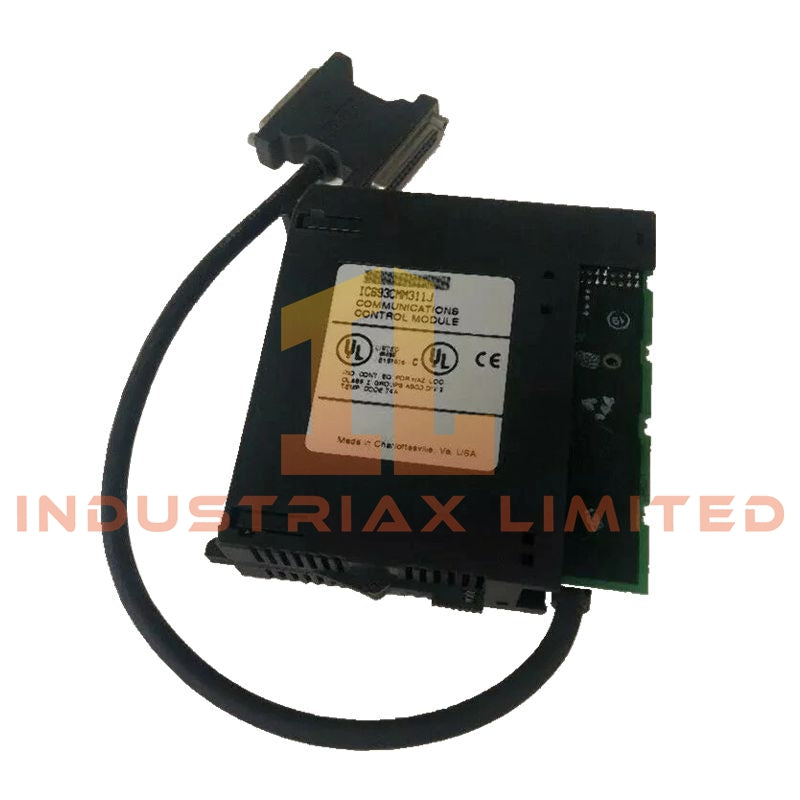

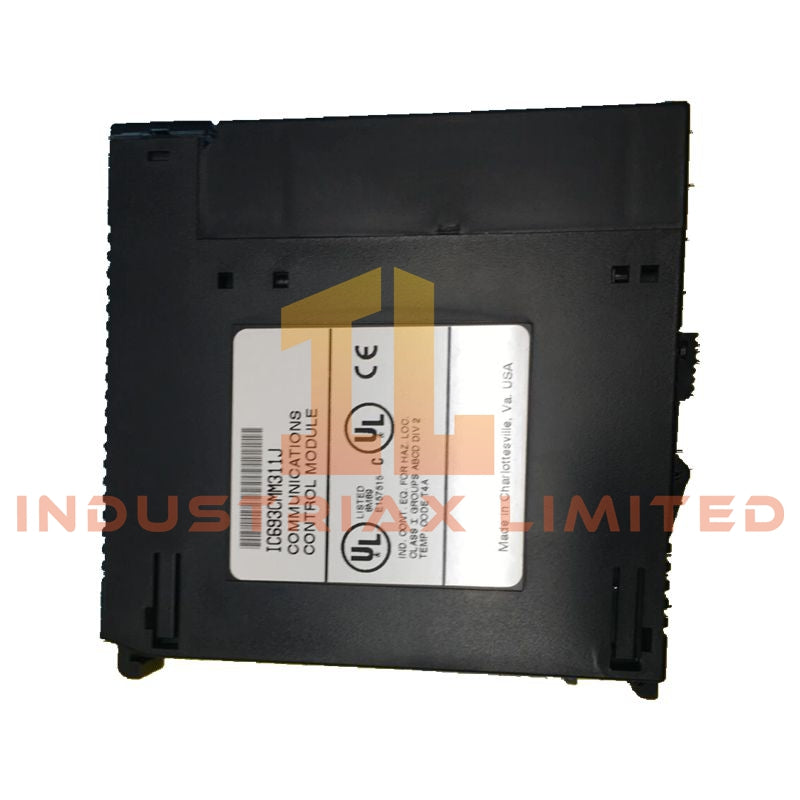

The GE IC693CMM311 is a Communications Coprocessor Module (CCM) for the GE Fanuc Series 90-30 PLC system. It provides advanced networking capabilities, enabling PLCs to exchange data with other controllers, SCADA systems, HMIs, and external devices. The module supports dual serial ports for RS-232/RS-485 connections and allows LAN communications using the CCM protocol.
This module is equipped with optical isolation between ports and the PLC logic for enhanced protection and reliability. Status LEDs provide real-time feedback on communication activity and module health, allowing for rapid troubleshooting. It fits directly into standard Series 90-30 rack slots, supporting flexible integration into existing PLC architectures.
Technical Specifications
| Feature |
Specification |
| Model |
IC693CMM311 |
| Module Type |
Communications Coprocessor Module (CCM) |
| System Compatibility |
GE Fanuc Series 90-30 PLC platform |
| Communication Ports |
2 serial ports (RS-232/RS-485) |
| Protocols Supported |
SNP (Series Ninety Protocol), CCM, Modbus RTU (master/slave) |
| LAN Support |
CCM protocol over LAN connections |
| Baud Rates |
300 – 19,200 bps |
| Isolation |
Optical isolation between ports and PLC logic |
| Mounting |
Standard Series 90-30 rack slot |
| Indicators |
Status LEDs for communication activity and module health |
| Protection |
Built-in isolation and filtering for noise immunity |
| Lifecycle Status |
Legacy product (available via industrial suppliers) |
Key Features
-
Dual serial ports for simultaneous multi-device communication
-
Supports multiple protocols: SNP, CCM, and Modbus RTU
-
LAN connectivity for PLC-to-PLC and PLC-to-host communication
-
Optical isolation for robust protection of PLC logic
-
Status LEDs simplify diagnostics and module monitoring
-
Direct integration into Series 90-30 racks
Applications
-
Linking Series 90-30 PLCs to SCADA and HMI systems
-
PLC-to-PLC communication over serial networks or LAN
-
Integrating Modbus RTU devices including sensors, drives, and controllers
-
Multi-device communication setups in manufacturing and process automation
FAQ
Q: Which protocols does the IC693CMM311 support?
A: SNP, CCM, and Modbus RTU (both master and slave modes).
Q: How many serial connections are available?
A: Two serial ports are provided (RS-232/RS-485).
Q: Can it connect over LAN?
A: Yes, it supports LAN communications using the CCM protocol.
Q: Is the module compatible with PACSystems RX3i?
A: No, it is designed specifically for Series 90-30 PLC systems.
