Product Description

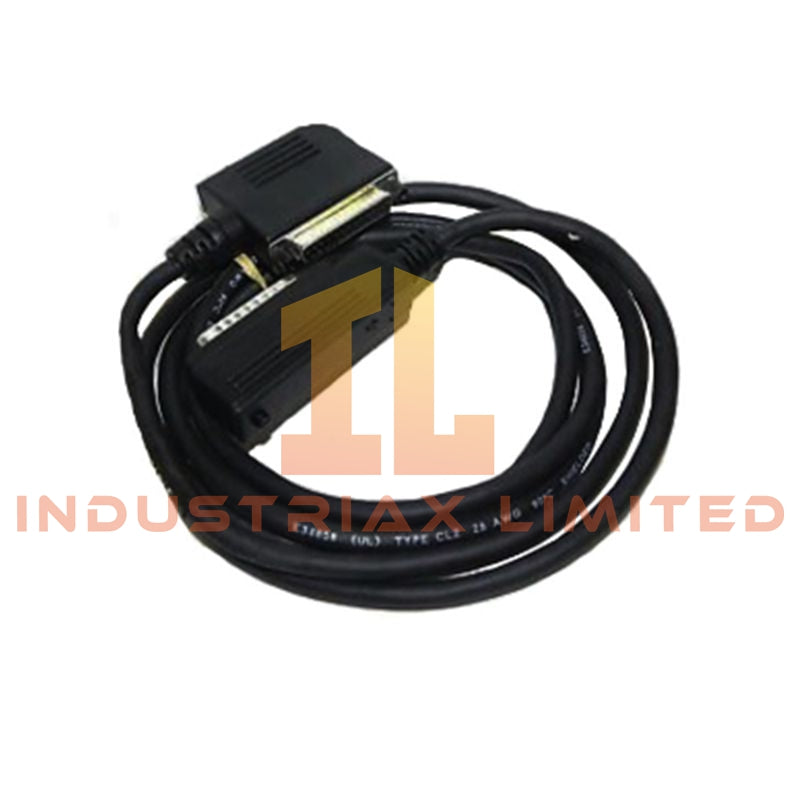

The IC693CBL301 is a 2-meter (6-foot) Wye-type I/O Bus Expansion Cable for GE Fanuc / Emerson Series 90-30 PLCs and PACSystems RX3i platforms. It extends the CPU baseplate’s I/O bus to expansion or remote baseplates, supporting daisy-chain configurations. Its robust Belden 8107 twisted-pair construction combined with continuous foil-and-braid EMI shielding ensures reliable, noise-immune communication even in harsh industrial environments.
The cable features a single 25-pin D-Sub male connector on one end and a dual 25-pin D-Sub connector (male + female) on the other, allowing chaining of multiple expansion racks and proper termination at the last rack. Factory-grade construction reduces wiring errors and simplifies system expansion.
Key Technical Specifications
| Parameter |
Specification |
| Model |
IC693CBL301 |
| Manufacturer |
GE Fanuc / Emerson |
| Product Line |
Series 90-30 |
| Cable Type |
I/O Bus Expansion Cable (Wye/Y-type) |
| Length |
2 m (6–6.6 ft) |
| Cable Construction |
Belden 8107 twisted-pair, 24 AWG tinned copper |
| Shielding |
100% continuous EMI shield (foil + braid) |
| Nominal Impedance |
100 Ω |
| Voltage Rating |
30 V AC/DC |
| Current Rating |
2 A per contact |
| Temperature Rating |
–20°C to 80°C |
| Weight |
0.55 lbs |
| Dimensions |
263 × 58 × 28 mm |
| Connector A |
Single 25-pin D-Sub male |
| Connector B |
Dual 25-pin D-Sub (1 male + 1 female) |
| Maximum Expansion Cables |
CPU 350–364: up to 7; CPU 331–341: up to 4 |
| Max Expansion Distance |
15 m (50 ft) to last expansion baseplate |
| Max Remote Distance |
213 m (700 ft) to last remote baseplate |
| Termination |
Required at end of chain (IC693ACC307 or built-in in certain cables) |
| System Compatibility |
Series 90-30 PLCs, PACSystems RX3i (with SBT module) |
Functional Highlights
-
Reliable extension of I/O bus for Series 90-30 and RX3i systems
-
Supports multi-rack daisy-chain expansion
-
Industrial-grade shielding provides high immunity to EMI and electrical noise
-
Plug-and-play D-Sub connectors simplify installation
-
Rugged construction for harsh factory environments
Typical Applications
-
Expanding I/O capacity for GE Series 90-30 or PACSystems RX3i PLCs
-
Connecting CPU baseplates to remote or additional expansion racks
-
Retrofitting legacy PLC installations with minimal wiring errors
-
High-integrity systems requiring shielded, noise-resistant connections
FAQ
Q: Can multiple IC693CBL301 cables be connected in series?
A: Yes, up to 7 cables for CPU models 350–364 and up to 4 for CPUs 331–341, following expansion limits.
Q: Is a terminator required?
A: Yes, use IC693ACC307 at the last rack unless using cables with built-in termination.
Q: What environments is this cable suitable for?
A: Rated for –20°C to 80°C, suitable for industrial environments with EMI and vibration.
