Description
Product Description

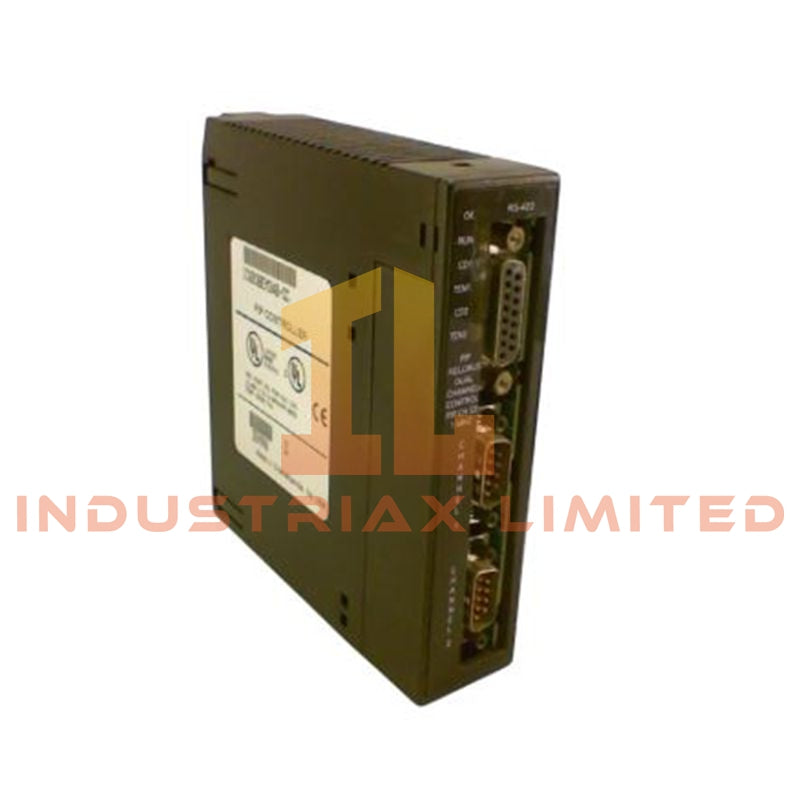

The IC693BEM340 is a high-performance FIP (Factory Instrumentation Protocol) Bus Controller designed for GE Fanuc Series 90‑30 PLC systems. It enables deterministic, high-speed communication between a Series 90‑30 PLC and FIP-compatible devices, including remote I/O racks, field control stations, and Series 90‑70 PLCs.
This module installs directly into the PLC backplane and supports redundant FIP bus operation, ensuring reliable communication in mission-critical automation applications. Two 9‑pin FIP bus connectors provide dual-channel redundancy, while a 15‑pin RS‑485 serial port allows firmware updates and external configuration. Six front-panel LEDs provide real-time diagnostic status, including module health, bus activity, and transmit/receive signals.
With software-configurable operation and no DIP switches or jumpers required, the IC693BEM340 simplifies deployment while maintaining high system reliability in demanding industrial environments.
Technical Specifications
| Parameter |
Specification |
| Model |
IC693BEM340 |
| Manufacturer |
GE Fanuc / Emerson |
| Product Type |
FIP Bus Controller Module |
| PLC Compatibility |
Series 90‑30 |
| Backplane Support |
Universal Backplane |
| Slot Requirement |
1 slot |
| Weight |
0.60 lb |
| Backplane Current |
1.2 A max |
| Power Supply |
24 VDC, 1 A |
| FIP Bus Connectors |
2 × 9‑pin male D‑sub, supports redundancy |
| Serial Interface |
15‑pin RS‑485 for configuration and firmware |
| Supported Devices |
Series 90‑70 PLCs, Field Control Units, Remote Drops, Generic FIP devices |
| LED Indicators |
Module OK, Run, Carrier Detect Ch.1/Ch.2, Transmit Enable Ch.1/Ch.2 |
| Redundant Bus Support |
Yes, dual-channel FIP bus |
| Operating Temperature |
–20 °C to +70 °C (typical) |
| Storage Temperature |
–40 °C to +85 °C |
| Humidity |
5–95% non-condensing |
| Certifications |
CE, UL |
| Mounting |
Rack-mounted, vertical orientation |
Key Features & Advantages
-
Interfaces Series 90‑30 PLCs with FIP serial bus networks
-
Dual FIP connectors for redundant, high-reliability communication
-
RS‑485 serial port enables firmware updates and configuration
-
Six front-panel LEDs provide immediate diagnostic feedback
-
Software-configurable operation with no physical switches needed
-
Rack-mounted design supports universal backplane installation
Applications
-
Industrial process control requiring high-speed, deterministic communication
-
Multi-rack PLC systems integrating Series 90‑30 and Series 90‑70 controllers
-
Remote I/O monitoring and field control integration
-
Systems where redundant communication and fault diagnostics are critical
FAQ
Q: Can the module operate without redundant FIP connections?
A: Yes, it functions with a single FIP bus but dual connectors provide redundancy for critical applications.
Q: How are firmware upgrades performed?
A: Firmware can be upgraded via the 15‑pin RS‑485 serial port using GE’s configuration tools.
Q: What is the maximum operating temperature?
A: The module is rated for –20 °C to +70 °C operating temperature.
