Description
Overview

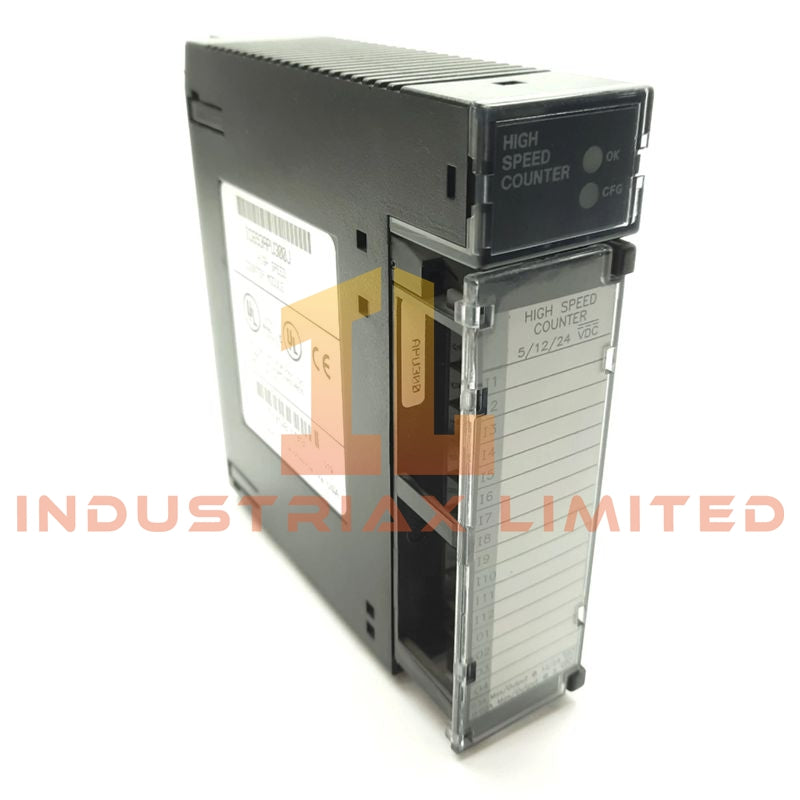

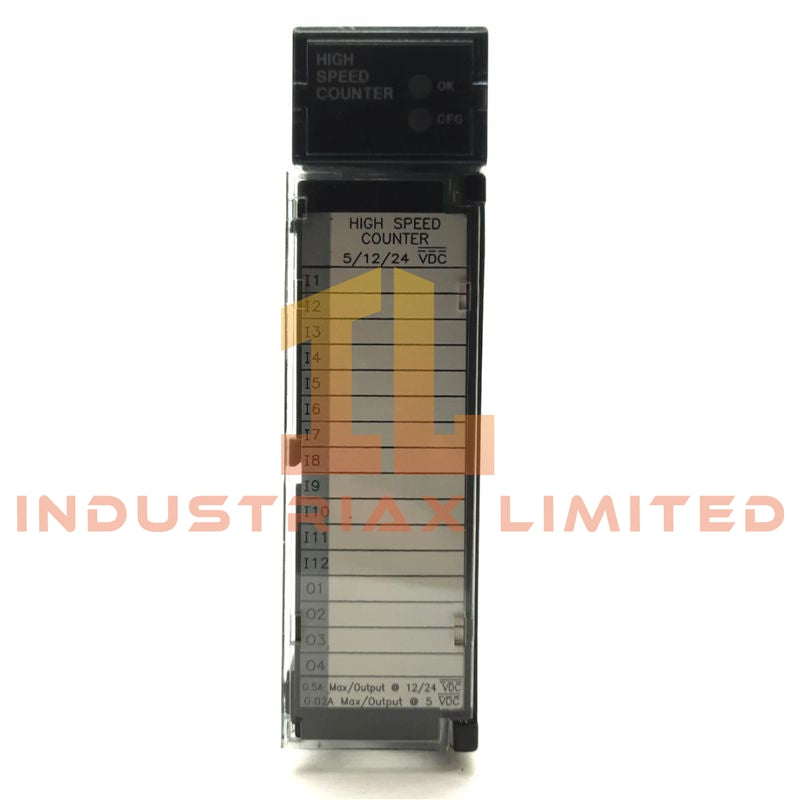

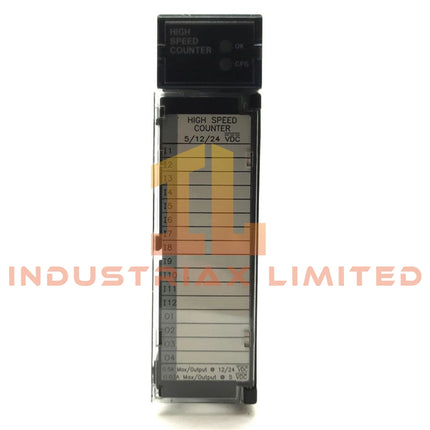

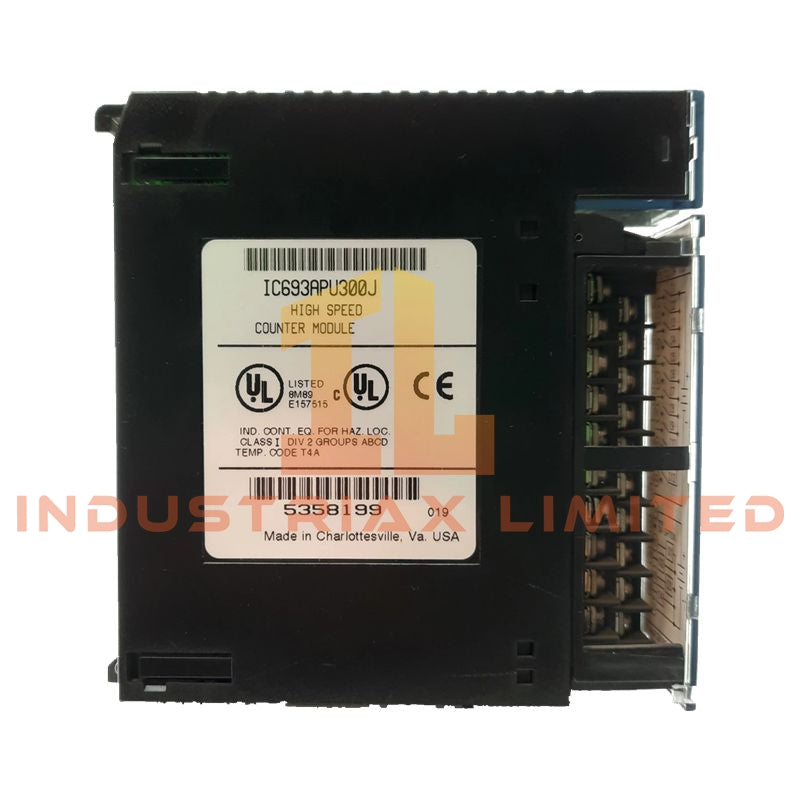

The IC693APU300 is a high-speed counter module for the Series 90‑30 PLC family. It provides independent, accurate pulse counting for applications involving encoders, flow meters, proximity switches, and other pulse-generating devices. By operating independently of the CPU scan, it ensures precise real-time counting for motion control, material handling, and process monitoring.
Technical Specifications
-
Model/Part Number: IC693APU300
-
Brand: GE Fanuc (Emerson Automation)
-
Series: Series 90‑30 PLC
-
Module Type: High-Speed Counter (HSC)
-
Input Channels: 2 independent counters (12 signal inputs)
-
Counter Modes: Up, Down, Bi-directional, Quadrature, Frequency measurement
-
Maximum Input Frequency: 80 kHz (depending on mode)
-
Input Voltage: 5–24 VDC (TTL and industrial sensors compatible)
-
Counter Capacity: 32-bit (up to 4,294,967,295 counts)
-
Outputs: 4 programmable discrete outputs (compare/threshold functions)
-
Output Ratings: 10–30 VDC @ 500 mA max; CMOS load drive capable
-
Input Isolation: Optically isolated for noise immunity
-
Backplane Current Draw: ~250–500 mA @ 5 VDC
-
Indicators: LEDs for input channel and output status
-
Programming Tools: Configurable via Proficy Machine Edition or Logicmaster 90
-
Environmental Specs:
-
Operating Temperature: 0–60 °C
-
Storage Temperature: –40–85 °C
-
Humidity: 5–95% non-condensing
-
Isolation Rating: 250 VAC (field-to-backplane)
-
Weight: 0.88 lbs
Key Features
-
Independent high-speed counting, unaffected by CPU scan cycles
-
Flexible counting modes suitable for motion control, flow measurement, and velocity detection
-
Programmable outputs for threshold-triggered actions
-
Optically isolated inputs to minimize electrical noise interference
-
Front panel LEDs provide instant visual status feedback
-
CMOS load drive capability for flexible output control
Applications
-
Turbine and flow meter measurement and totalizing
-
Velocity and position monitoring for motors and conveyors
-
Material handling and robotics counting
-
Motion and process control in industrial systems
FAQ
Q: What is the maximum counting frequency?
A: Up to 80 kHz, depending on the selected counter mode.
Q: How many input channels are supported?
A: 12 source inputs across 2 independent counter channels.
Q: Can the outputs drive external devices directly?
A: Yes, 4 discrete outputs can drive loads up to 500 mA or CMOS-compatible devices.
Q: Is this module still in production?
A: The IC693APU300 is discontinued/obsolete but remains widely supported in existing Series 90‑30 systems.
