Description
Overview

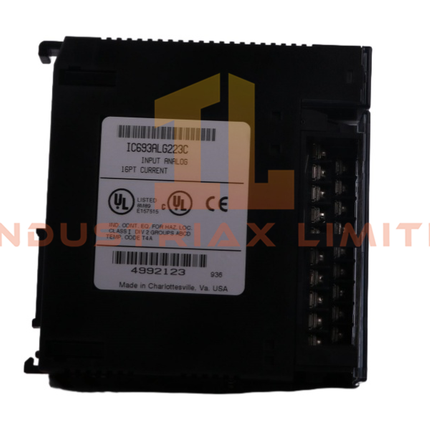

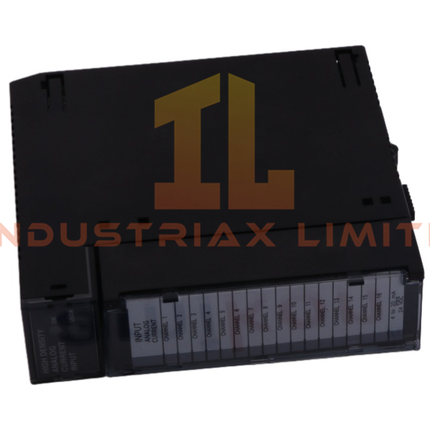

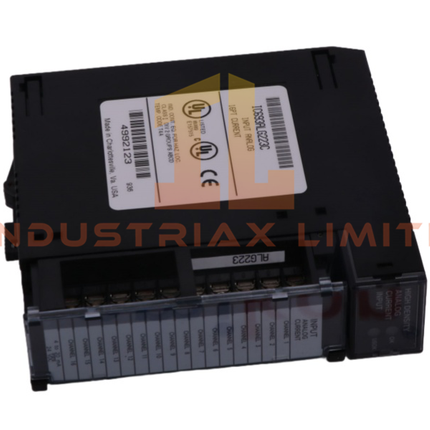

The GE IC693ALG223 Analog Input Module is a high-density 16-channel current input board designed for Series 90-30 PLC systems. Engineers rely on this module for precise signal conversion, flexible input ranges, and robust diagnostics. Its compact dimensions and lightweight build simplify installation while ensuring reliable performance in demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IC693ALG223 |
| Module Type |
Analog Input Module |
| Manufacturer |
GE |
| Product Range |
GE |
| Condition |
Brand New |
| Lead Time |
In Stock |
| Weight |
0.36 kg |
| Dimensions |
8.2 x 12.2 x 6 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Input Channels |
16 single-ended |
| Input Ranges |
4–20 mA, 0–20 mA, 4–20 mA Enhanced |
| Accuracy |
0.25% at 25°C |
| Resolution |
12-bit |
| Update Rate |
13 ms for all channels |
| Isolation |
1500 V |
| External Power |
24 VDC required |
| Backplane Consumption |
120 mA |
| Diagnostic Features |
High/low alarms, open-wire detection |
| Status Indicators |
2 LEDs (operation, supply) |
Functional Description
The GE IC693ALG223 supports three input ranges, offering flexibility for diverse industrial applications. It delivers 12-bit resolution with 0.25% accuracy at 25°C, ensuring precise analog-to-digital conversion. Engineers benefit from configurable alarm limits and open-wire fault detection, which enhance system safety and reliability.
The module provides 1500 V isolation and requires 24 VDC external power, consuming 120 mA from the backplane. Two status LEDs indicate operational states and supply conditions, with flashing patterns for diagnostics. The GE IC693ALG223 allows per-channel configuration through IC641 software or a Hand-Held Programmer, enabling customized scaling from -8000 to +32000 counts in Enhanced mode.
