Product Description

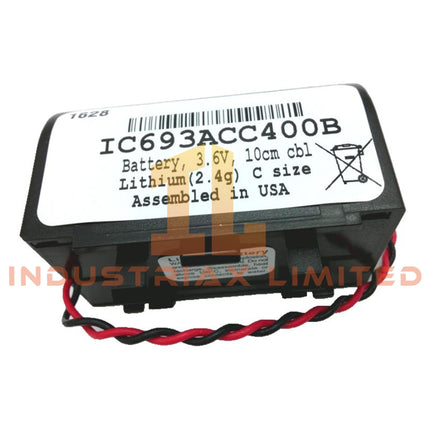

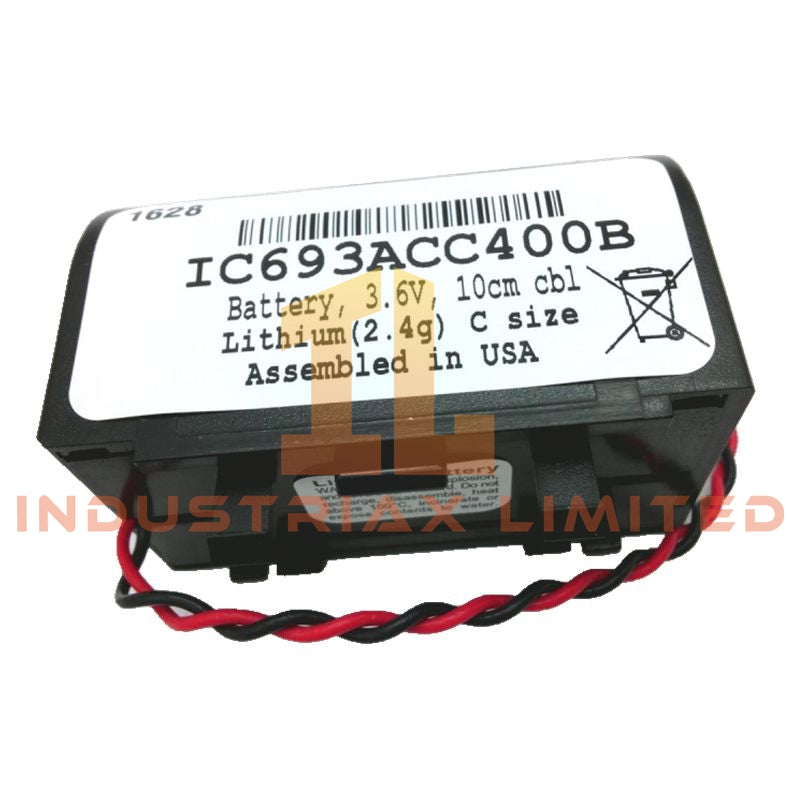

The IC693ACC400 is a high-capacity battery backup module engineered for GE Fanuc Series 90‑30 and VersaMax PLC systems. It provides extended retention of CPU logic, register data, configuration settings, and real-time clock information during power interruptions, ensuring continuous system reliability in mission-critical industrial applications.
Featuring a lithium high-capacity cell, this energy pack significantly outperforms standard CPU batteries, offering backup duration up to 3–5 years depending on operating temperature. Direct plug-in installation to the CPU battery port simplifies deployment, while LED indicators monitor battery health and charging status. Safety features include overcharge, short-circuit, and reverse-polarity protection.
Ideal for environments with fluctuating temperatures, power plants, manufacturing lines, and process control systems, the IC693ACC400 ensures data integrity and prevents cold-start errors after outages.
Technical Specifications
| Parameter |
Specification |
| Model |
IC693ACC400 |
| Manufacturer |
GE Fanuc / Emerson |
| Product Type |
Expanded Battery Backup Module |
| Compatible PLCs |
Series 90‑30, VersaMax (CPE305 / CPE310 / CPE302) |
| Battery Type |
Lithium high-capacity cell (some variants Li‑ion or NiMH) |
| Nominal Voltage |
3.0–3.6 VDC |
| Capacity |
7.5–8.5 Ah |
| Typical Backup Duration |
3–5 years (temperature dependent) |
| Recharge Time |
~24 hours (rechargeable variants) |
| Operating Temperature |
0–60 °C |
| Storage Temperature |
–20–70 °C |
| Shelf Life |
Up to 5 years |
| Dimensions |
2.62 × 50 mm (diameter × height) |
| Weight |
0.29 lb |
| Mounting |
On-module, rack or chassis compatible |
| Connector Type |
Samtec IPD1‑04‑D‑K |
| Cable |
IC695CBL001, 3 ft (0.91 m), PVC-insulated tinned copper |
| LED Indicators |
Charging, Fault, Low Capacitance, Charged |
| Compliance |
EU RoHS Directive 2011/65/EU |
Key Features & Advantages
-
Provides long-duration memory retention for CPU logic and registers
-
High-capacity lithium cell ensures stable voltage and reliable backup
-
Preserves real-time clock and retentive data to prevent cold-start errors
-
LED diagnostics for quick monitoring of battery health
-
Direct plug-in installation for easy replacement without system disassembly
-
Robust protection against overcharge, short-circuits, and reverse polarity
-
Compatible with Series 90‑30 and VersaMax CPUs, including CPE302, CPE305, CPE310
Applications
-
Mission-critical automation systems in power generation and manufacturing
-
Process industries requiring reliable PLC memory retention
-
Environments with electrical noise or fluctuating temperatures
-
Systems where data integrity during outages is essential
FAQ
Q: How long does the backup last under normal operation?
A: The IC693ACC400 provides 3–5 years of typical retention depending on temperature and usage.
Q: Can this battery be installed without powering down the PLC?
A: Yes, it supports plug-and-play replacement on the CPU battery port without rack disassembly.
Q: Which PLCs are compatible?
A: Series 90‑30 CPUs, including CPE302, CPE305, and CPE310, as well as VersaMax PLCs for memory and RTC backup.
