Product Description

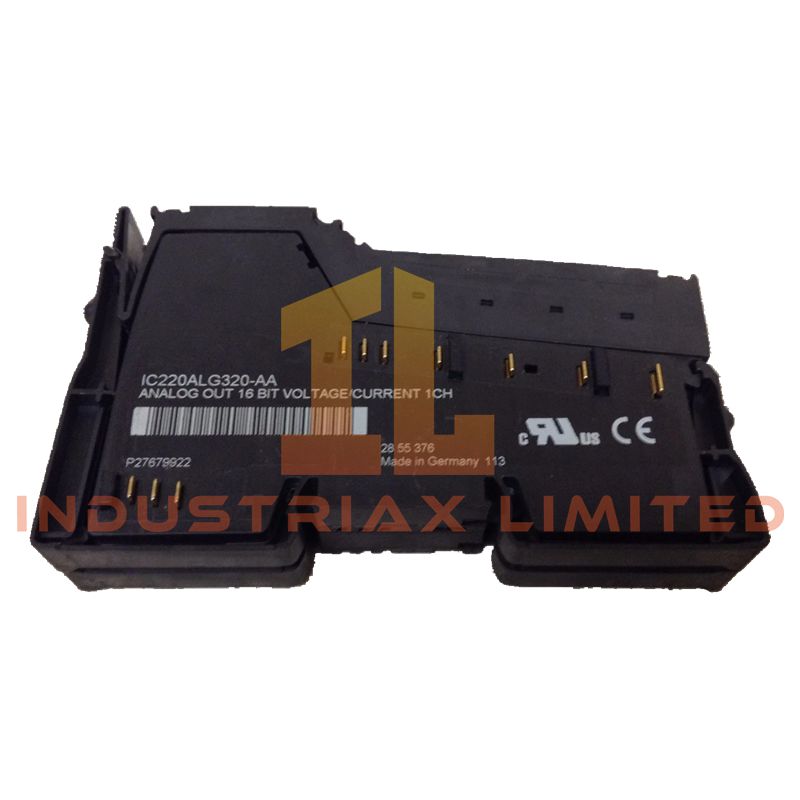

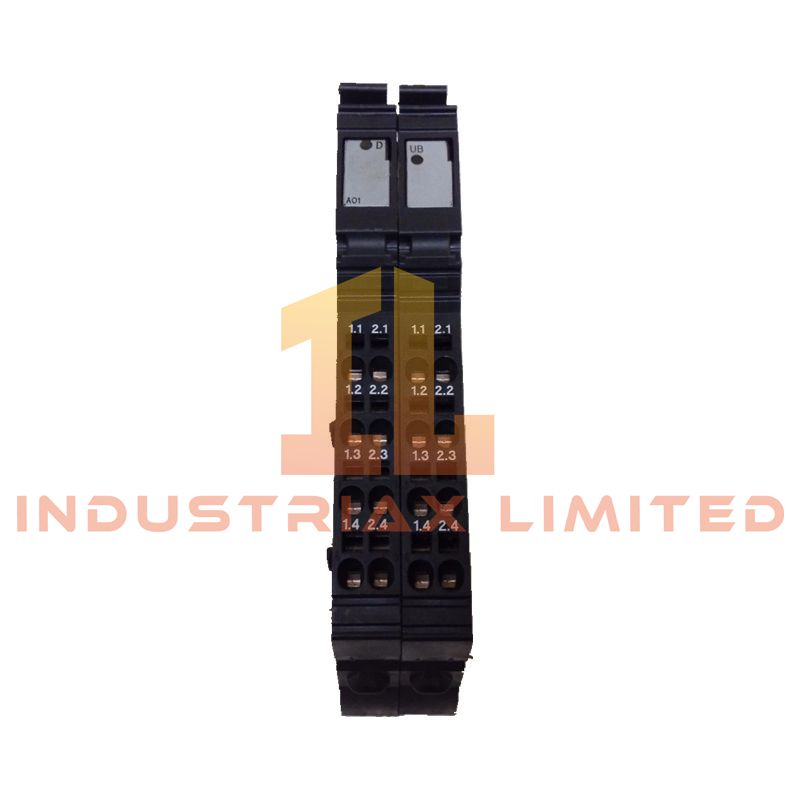

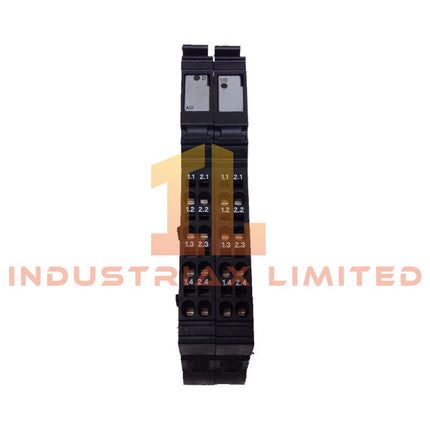

The IC220ALG320 is a single-channel analog output module from the GE Fanuc VersaPoint I/O family, intended for precise control of field devices in distributed automation systems. It converts digital control values into stable analog signals, supporting both voltage and current output modes.

Designed for accuracy and responsiveness, the module features 16-bit digital-to-analog conversion and sub-millisecond update performance. It is suitable for driving actuators such as control valves, variable speed drives, and positioning devices where signal fidelity is critical.

The module operates using a 2-wire connection method and interfaces with field wiring via the IC220TBK203 terminal base, which must be ordered separately. Integrated LED indicators provide immediate visual feedback on operating status and output activity.

Key Features

• One analog output channel configurable for voltage or current

• High-resolution 16-bit D/A conversion for fine signal control

• Supported output ranges: 0–10 V, 0–20 mA, 4–20 mA

• Fast response time under 1 ms including signal conversion

• Compact housing optimized for high-density I/O installations

• LED indicators for bus communication and output voltage presence

• 2-wire connection system for simplified wiring

• Designed for use with external 24 VDC field supply

• Compatible with VersaPoint modular I/O architecture

Technical Specifications

General Information

• Manufacturer: GE Fanuc / Emerson Automation

• Series: VersaPoint

• Product Type: Analog Output Module

• Model: IC220ALG320

Output Characteristics

• Number of Channels: 1

• Signal Types: Voltage or Current (selectable, not simultaneous)

• Output Ranges:

• Voltage: 0–10 V

• Current: 0–20 mA, 4–20 mA

Performance

• Resolution: 16-bit

• Conversion and Update Time: < 1 ms

Load Requirements

• Voltage Output: Minimum load resistance ≥ 2 kΩ

• Current Output: Maximum load resistance ≤ 500 Ω

Power Requirements

• Logic Supply (UL):

• Typical: 30 mA

• Maximum: 40 mA

• Analog Supply (UANA, 24 VDC):

• Typical: 50 mA

• Maximum: 65 mA

• Total Power Consumption: Approx. 1.4 W

Environmental Conditions

• Operating Temperature: −25°C to +55°C

• Storage Temperature: −25°C to +85°C

• Humidity: 75% average, up to 85% non-condensing

• Protection Rating: IP20

• Protection Class: Class 3 (IEC compliant)

Mechanical Data

• Dimensions (W × H × D): 24.4 × 120 × 71.5 mm

• Mounting: DIN rail

• Connection Type: 2-wire

• Terminal Base: IC220TBK203 (required, sold separately)

Installation Considerations

• Use shielded twisted-pair cables for analog signal wiring to reduce interference

• Connect cable shielding to functional earth (FE) for noise suppression

• In high-noise environments with cable lengths exceeding 10 meters, implement RC filtering between shield and earth

• Install analog modules with adequate spacing from heat-generating modules to maintain thermal stability

Applications

The IC220ALG320 is typically applied in systems requiring accurate analog signal generation:

• Valve positioning and flow control systems

• Variable frequency drive (VFD) control

• Process automation and chemical dosing

• HVAC and building automation systems

• Distributed I/O networks in manufacturing plants

FAQ

Q: Can voltage and current outputs be used at the same time?
A: No, the module supports either voltage or current output per configuration, not both simultaneously.

Q: What terminal base is required for installation?
A: The module requires the IC220TBK203 terminal strip for field wiring.

Q: Is the module suitable for long-distance signal transmission?
A: Yes, but proper shielding and grounding practices should be followed to maintain signal integrity.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
