Product Description

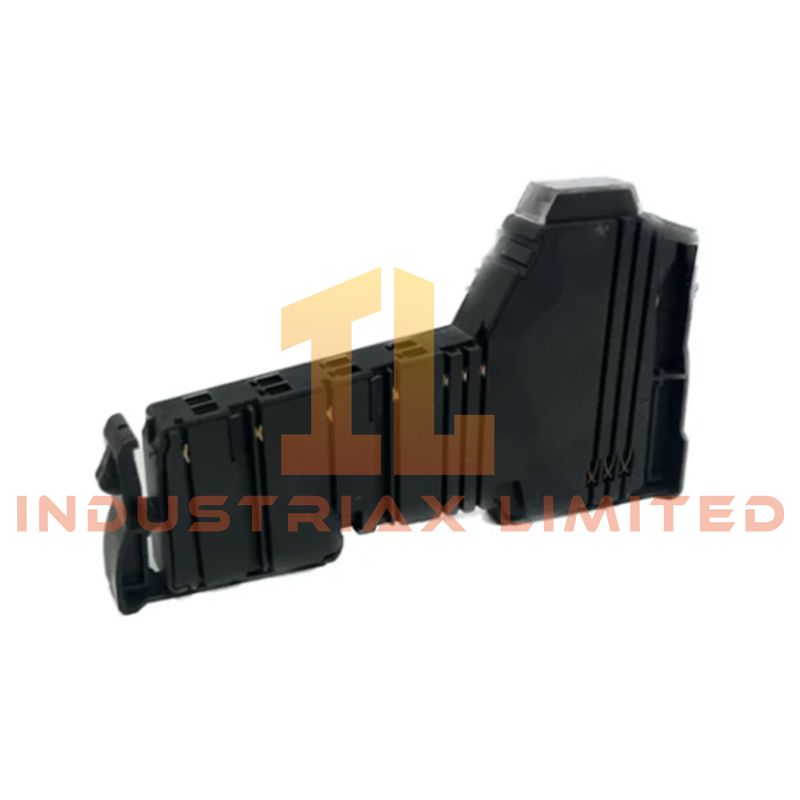

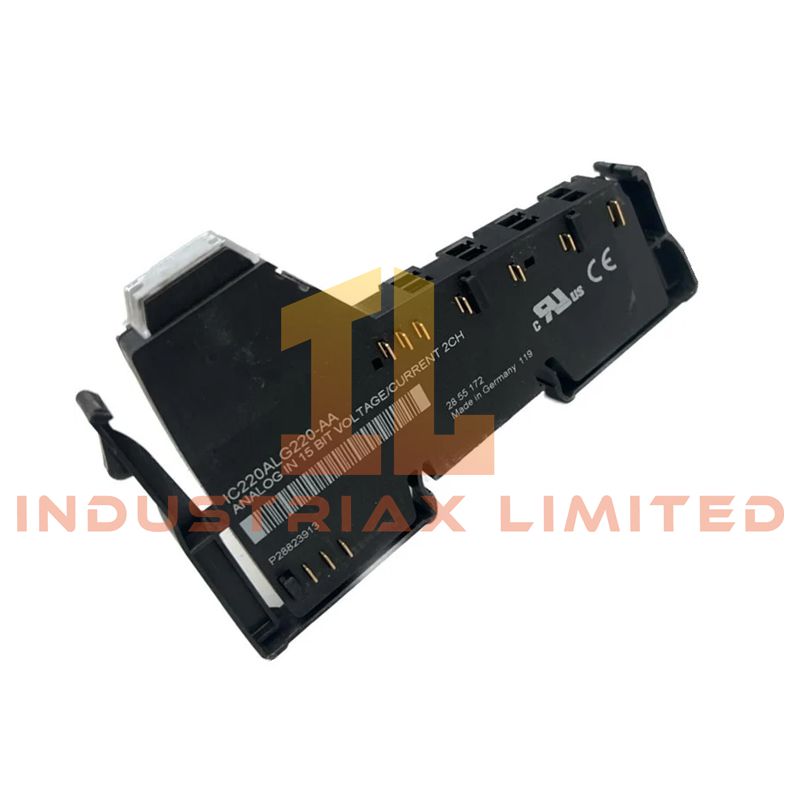

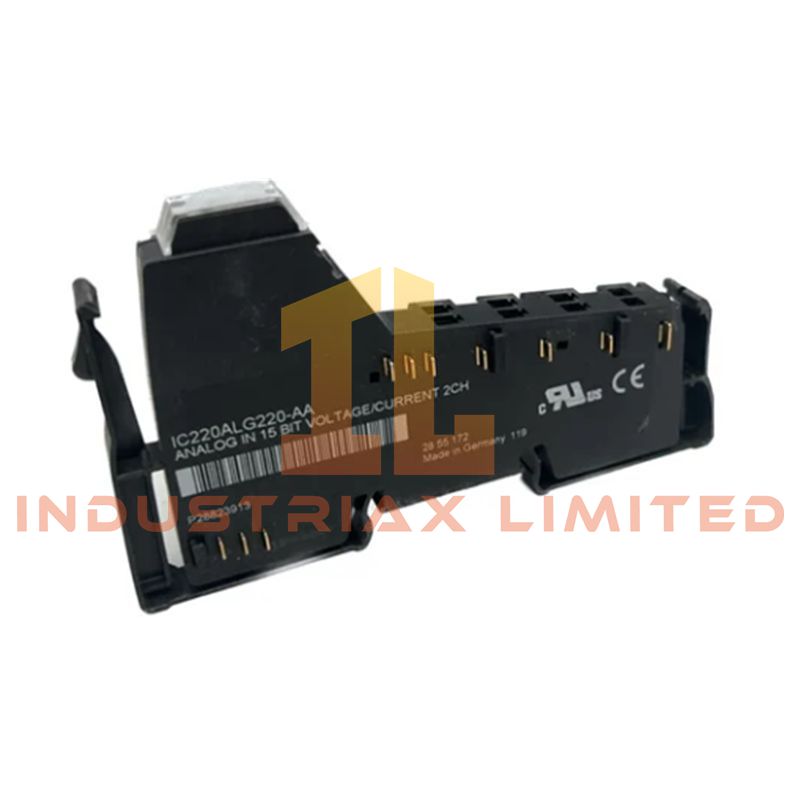

The IC220ALG220 analog input module is part of the GE Fanuc VersaPoint distributed I/O family, engineered for accurate acquisition of industrial analog signals. It provides two independently configurable input channels capable of measuring both voltage and current, making it suitable for a wide range of field instrumentation.

With 15-bit resolution and a fast update cycle, the module ensures precise signal conversion for control and monitoring tasks. It supports typical industrial transmitters, including 2-wire loop-powered and 3-wire active sensors. Each channel can be configured separately, allowing mixed signal types within the same module.

The unit interfaces with field wiring through a dedicated terminal base, typically IC220TBK061 (in some system configurations, IC220TBK062 may also be referenced depending on wiring scheme), which must be ordered separately.

Key Features

• Two single-ended analog input channels

• Configurable for voltage and current signals

• High-resolution 15-bit signal conversion

• Independent parameterization per channel

• Fast acquisition cycle ≤ 1.5 ms for both channels

• Compatible with 2-wire and 3-wire transmitters

• Diagnostic LEDs for module and channel status

• Compact modular design for VersaPoint I/O stations

• Requires external 24 VDC field power supply

Technical Specifications

General Information

• Manufacturer: GE Fanuc / Emerson Automation

• Series: VersaPoint

• Product Type: Analog Input Module

• Model: IC220ALG220

Input Configuration

• Number of Channels: 2 (single-ended)

• Supported Signal Types: Voltage and Current

Input Ranges

• Current:

• 0–20 mA

• 4–20 mA

• ±20 mA

• Voltage:

• 0–10 V

• ±10 V

Performance Parameters

• Resolution: 15-bit (range-independent)

• Update Time: ≤ 1.5 ms (both channels)

• Input Resistance:

• Voltage Inputs: > 220 kΩ

• Current Inputs: Approx. 50 Ω

• Input Filter Cutoff Frequency: Approx. 40 Hz

Power Requirements

• Logic Supply (UL): Approx. 45 mA

• Analog Supply (UANA): Approx. 12 mA

• Total Power Consumption: Approx. 0.63 W

• Field Supply Voltage: 24 VDC

Environmental Conditions

• Operating Temperature: −25°C to +55°C

• Storage Temperature: −25°C to +85°C

• Relative Humidity: Up to 75% average (non-condensing)

• Protection Rating: IP20

• Protection Class: Class 3 (IEC standards compliant)

Mechanical Data

• Dimensions (W × H × D): 12.2 × 120 × 71.5 mm

• Mounting: DIN rail

• Wiring Method: 2-wire or 3-wire connection

• Weight: 0.15 lb

Applications

The IC220ALG220 is typically used in distributed control systems where precise analog signal measurement is required:

• Process control (flow, pressure, temperature transmitters)

• Water and wastewater treatment systems

• Energy management and monitoring

• Chemical and pharmaceutical processing

• Remote I/O stations in large-scale automation systems

FAQ

Q: Can voltage and current signals be used simultaneously on this module?
A: Yes, each channel is independently configurable, allowing mixed signal types on the same module.

Q: Does the module supply power to connected sensors?
A: No, an external 24 VDC power supply is required for field devices.

Q: Which terminal base should be used?
A: The standard terminal base is IC220TBK061. Always verify compatibility based on your wiring configuration.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
