Description

Product Description

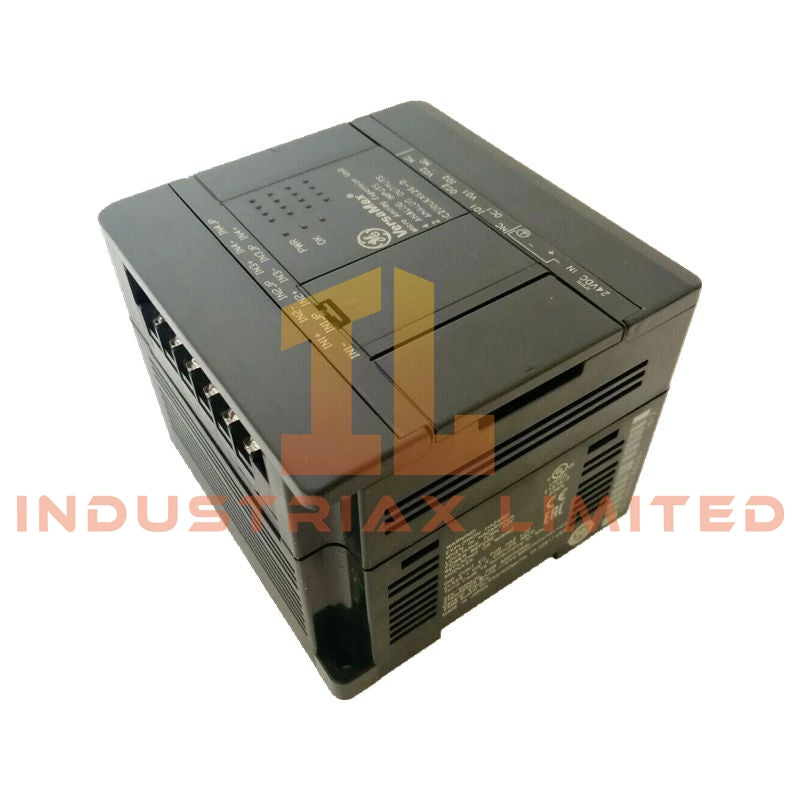

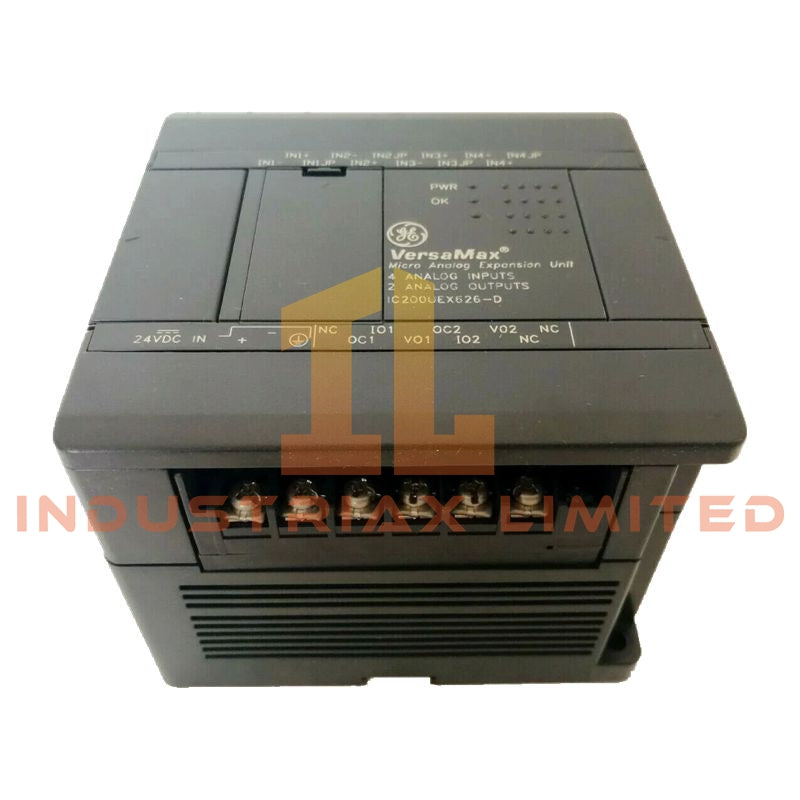

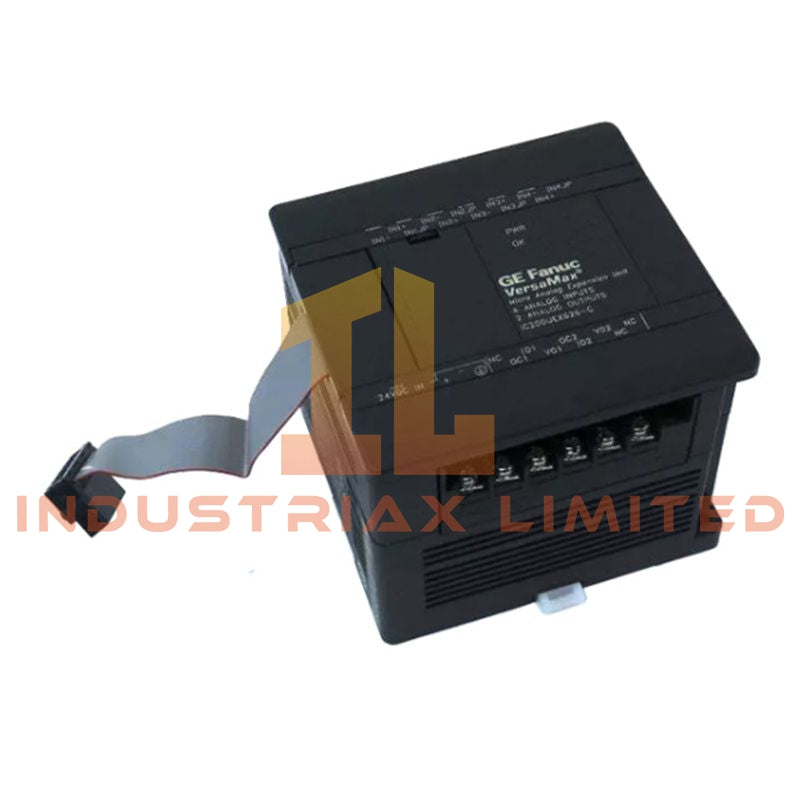

The IC200UEX626 is a compact analog expansion unit developed for the VersaMax Micro PLC platform, enabling additional analog signal handling in space-limited or distributed control systems. It integrates four analog input channels and two analog output channels within a single module, allowing accurate acquisition and control of process variables such as voltage or current signals.

Designed for flexible deployment, this module can be installed remotely up to 2 meters from the base controller, making it suitable for panel layouts where direct mounting is not practical. Communication is handled via an RS-485 interface, ensuring reliable data exchange between the expansion module and the Micro PLC.

With low power consumption and a rugged mechanical design, the IC200UEX626 is well-suited for continuous operation in demanding industrial environments.

Key Features

• Combined analog input and output expansion in a single module

• Supports remote installation up to 2 meters from controller

• RS-485 communication for stable data transfer

• DIN-rail mounting for standard control cabinets

• Compact footprint for space-constrained applications

• Designed for VersaMax Micro and compatible Nano systems

Technical Specifications

I/O Configuration

• Total Channels: 6

• Analog Inputs: 4 channels

• Analog Outputs: 2 channels

Electrical Parameters

• Supply Voltage: 24 VDC

• Operating Range: 19.2 to 30 VDC

• Power Consumption: approx. 3 W

• Sensor Supply Current: up to 200 mA (field devices)

Communication Interface

• Interface Type: RS-485 serial communication

• Function: Expansion module data exchange with Micro PLC

Installation & Mounting

• Mounting Method: DIN rail

• Max दूरी from Controller: 2 meters

• Configuration: Modular expansion architecture

Environmental Conditions

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –40 °C to +85 °C (typical for this class)

• Humidity: 5% to 95% non-condensing

Mechanical Data

• Dimensions: 143.3 × 78.8 × 61.3 mm

• Weight: 0.22 kg

Applications

The IC200UEX626 module is typically applied in:

• Process signal monitoring (temperature, pressure, flow)

• Analog control loops in small PLC systems

• Distributed I/O layouts in compact control panels

• Utility systems and building automation

• OEM machinery requiring scalable analog expansion

FAQ

Q: What type of signals can the analog inputs handle?
A: The IC200UEX626 typically supports standard industrial analog signals such as 0–10 V or 4–20 mA, depending on configuration and system setup.

Q: Can this module operate independently of the PLC?
A: No. It functions strictly as an expansion module and must be connected to a VersaMax Micro controller.

Q: How far can the module be installed from the PLC?
A: Installation distance is limited to 2 meters to maintain communication integrity.

Q: Is additional communication hardware required?
A: No additional modules are required, as RS-485 communication is integrated.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
