Description

General Overview

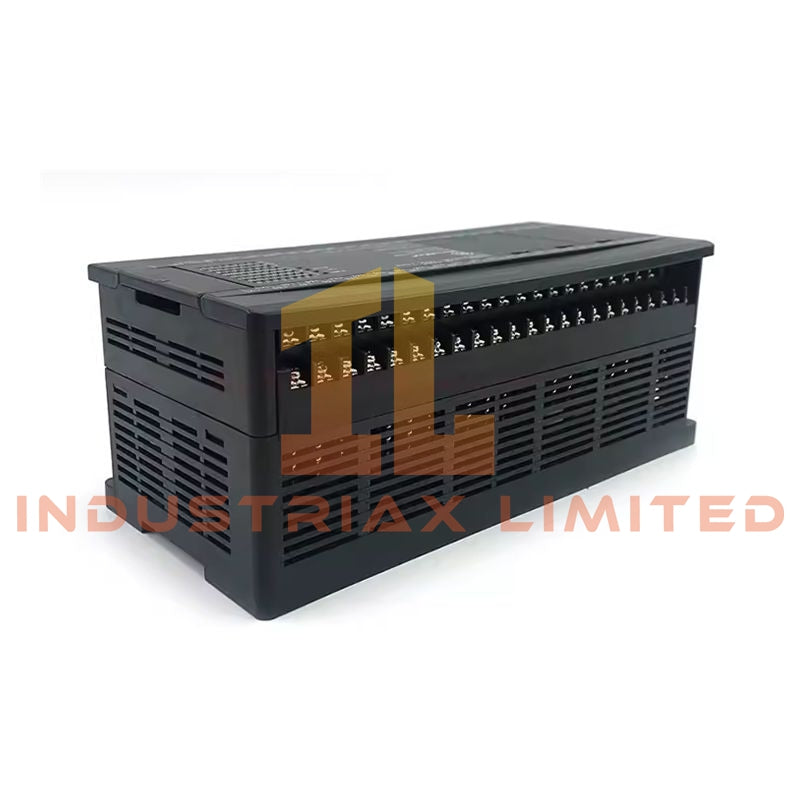

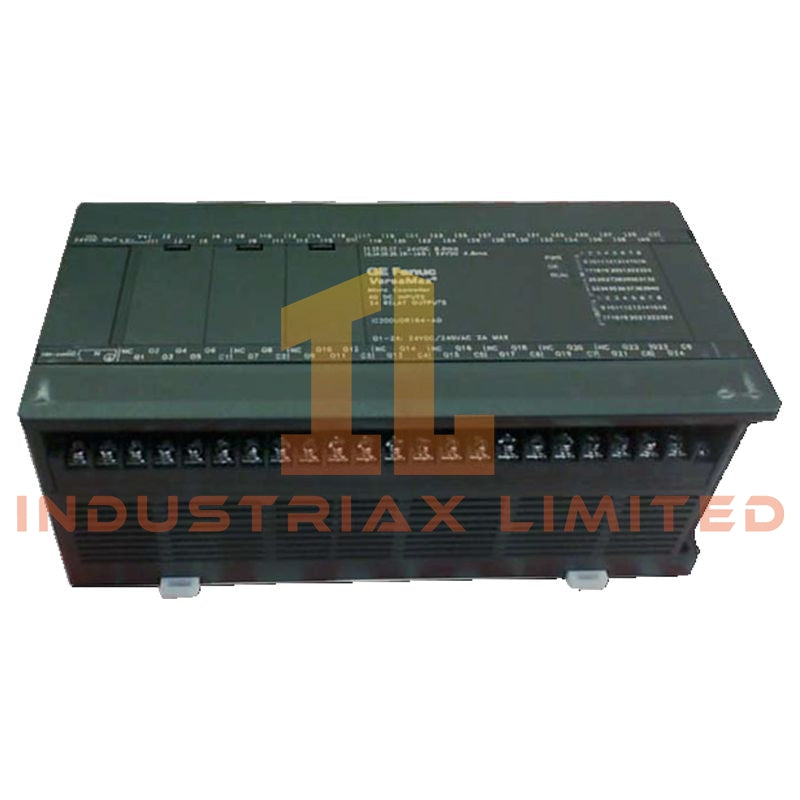

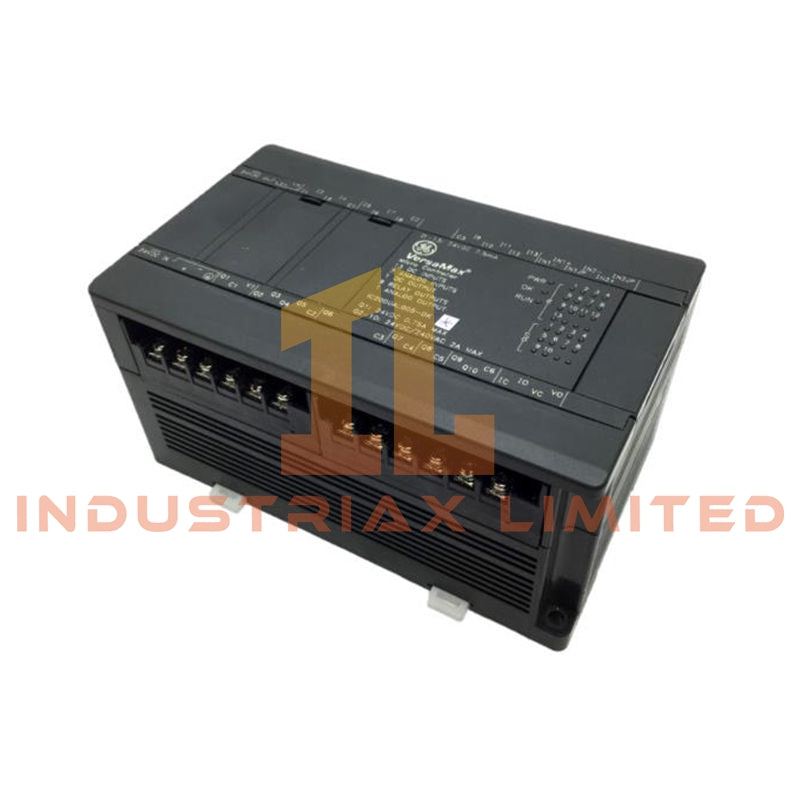

The IC200UDR164 is a compact programmable controller within the GE VersaMax Micro family, engineered for space-efficient automation systems requiring mixed discrete control and flexible communication. It combines digital input handling, relay output switching, and integrated AC power conversion in a single hardware platform, reducing cabinet complexity and wiring overhead.

Designed for OEM machinery, process skids, packaging lines, and utility control panels, this controller supports scalable expansion while maintaining deterministic scan performance.

I/O Architecture & Control Capacity

The controller integrates a total of 64 onboard control points:

• 40 × 24 VDC digital inputs (positive/negative logic compatible)

• 24 × relay outputs (SPST, normally open contacts)

Relay outputs support direct switching of AC or DC loads, including solenoids, indicators, and motor starter interfaces. Input channels are optimized for fast signal acquisition with typical response in millisecond range.

Expansion capability:

• Supports up to 4 VersaMax expansion modules

• Maximum system capacity up to 176 physical I/O points

Power System & Electrical Design

• Integrated power input: 100–240 VAC auto-ranging supply

• Frequency range: 50–60 Hz

• Internal low-voltage regulation for backplane and logic circuits

• Typical input consumption: optimized for low thermal load in cabinet installations

Relay output ratings:

• Up to 2 A per channel

• Suitable for resistive and inductive industrial loads

Processing Performance & Memory

• User logic memory: 24K words

• Register memory: 32K words

• High-speed counter capability: up to 8 channels configurable

• Optimized scan cycle for real-time discrete control applications

• Supports memory expansion modules for program backup and transfer

Communication Interfaces

Standard and optional communication architecture:

• Port 1: RS-232 (RJ-45 interface)

• Optional Port 2: RS-485 / Ethernet 10/100 / USB (configuration dependent)

Supported protocols:

• Modbus RTU (Master/Slave)

• SNP / SNP-X

• Modbus TCP (optional Ethernet configuration)

• SRTP communication (Ethernet-enabled variants)

Designed for integration into distributed control networks and hybrid serial/Ethernet environments.

Environmental & Mechanical Ratings

• Operating temperature: –40 °C to +70 °C

• Storage temperature: –40 °C to +85 °C

• Relative humidity: 5%–95% non-condensing

• Mounting: DIN rail or panel installation

• Protection class: IP20 (cabinet-mounted use only)

• Shock resistance: industrial-grade vibration tolerance for panel environments

Physical Specifications

• Weight: 0.91 kg

• Compact modular enclosure optimized for control cabinet density

• Tool-free DIN rail mounting system

Functional Highlights

• Integrated AC power supply eliminates external PSU requirement

• High-density 64-point control in a compact footprint

• Relay outputs suitable for direct field load switching

• Expandable architecture for system scaling

• Dual communication flexibility for legacy and modern networks

Application Areas

• OEM machine automation systems

• Packaging and material handling equipment

• Water and utility control panels

• Distributed I/O control nodes

• Compact standalone industrial controllers

FAQ

Q1: Can the IC200UDR164 operate without external power supply?
Yes. It includes an integrated 100–240 VAC power supply module.

Q2: How many expansion modules are supported?
Up to four VersaMax expansion units can be connected.

Q3: Are outputs suitable for motor or solenoid control?
Yes, relay outputs support inductive and resistive loads up to 2 A.

Q4: Does it support Ethernet communication?
Yes, Ethernet is available via optional communication modules depending on configuration.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
