Description

Overview

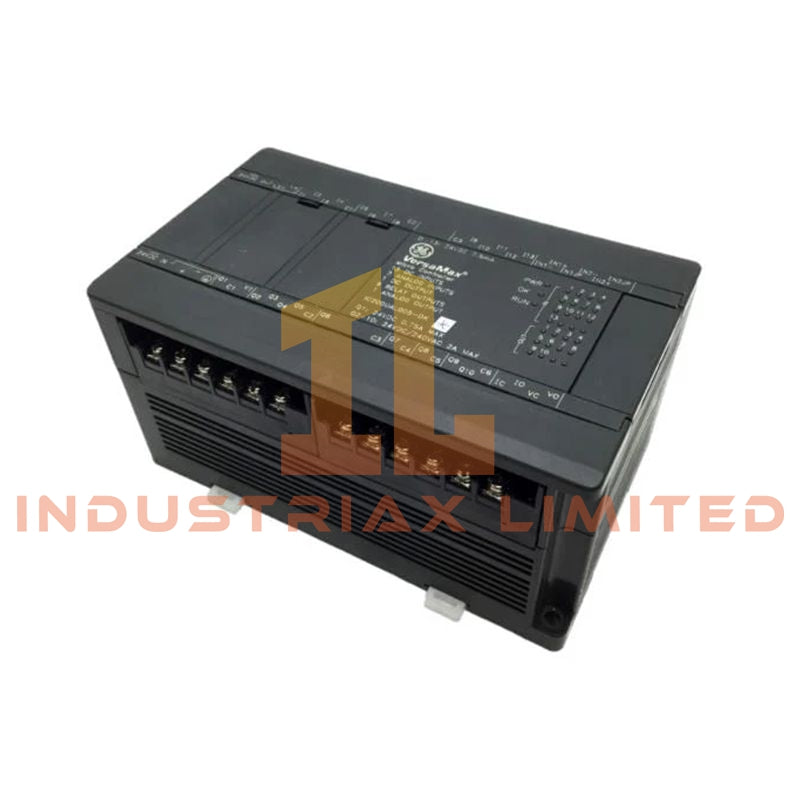

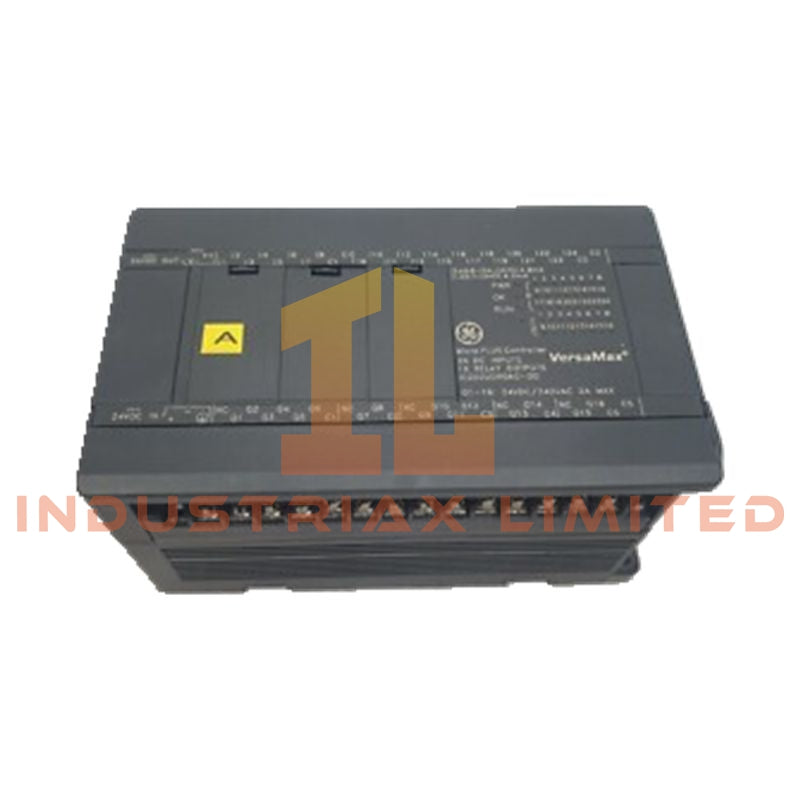

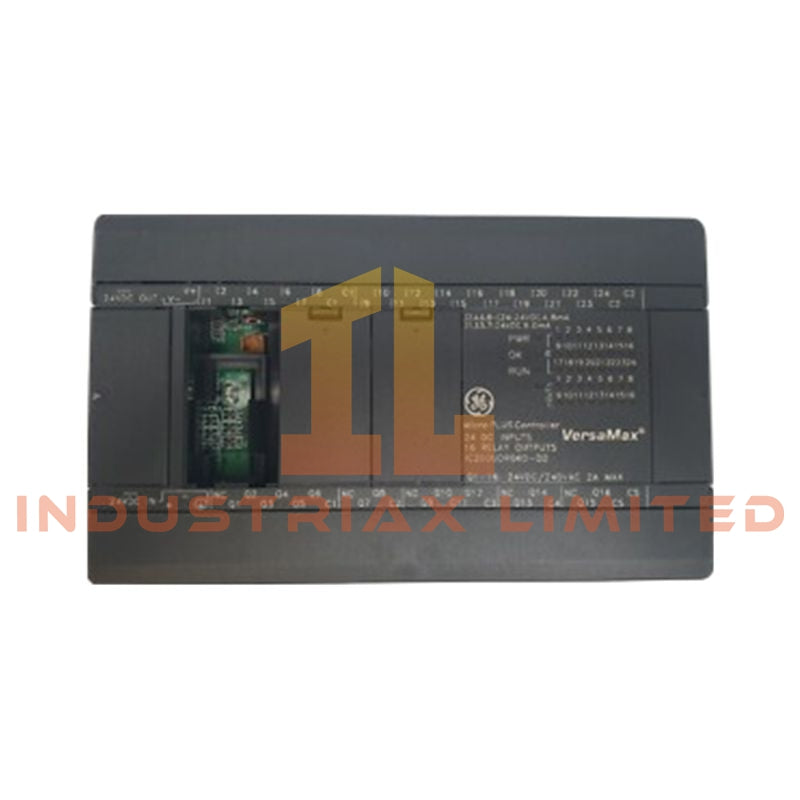

The IC200UDR040 from GE Fanuc is a compact 40-point programmable logic controller designed for discrete machine control applications requiring a mix of high-density digital inputs and electromechanical relay outputs.

This unit integrates input processing, relay switching, high-speed counting capability, and onboard power distribution into a single controller body, making it suitable for standalone machine-level automation without external expansion hardware.

System Configuration

• Total I/O capacity: 40 points

• Digital inputs: 24 × 24 VDC configurable logic inputs

• Digital outputs: 16 × relay (Form A / SPST, normally open)

The controller supports mixed logic input configurations (sink/source wiring), enabling flexible field device integration.

A subset of inputs is dedicated to high-speed event capture for counting applications.

Power Supply Characteristics

• Supply voltage: 24 VDC nominal

• Operating range: 19.2–30 VDC

• Power consumption: approx. 5 W

• Input current draw: ~0.2 A typical

• Inrush current: up to 1 A at 30 VDC

• Hold-up time: ~10 ms at low voltage threshold

Internal auxiliary power:

• +24 VDC sensor supply output: up to 435 mA

• Auxiliary +5 V pin (serial interface): up to 100 mA

Digital Input Specifications (24 Channels)

• Input voltage range: 0–30 VDC

• Nominal input: 24 VDC

• Logic type: selectable positive or negative field wiring

• Input current:

• High-sensitivity channels: ~8 mA typical

• Standard channels: ~4.8 mA typical

High-speed counter capability:

• Up to 4 × Type A counters

• Or 1 × Type A + 1 × Type B configuration

• Resolution: 16-bit or 32-bit counter modes

• Typical applications: encoder pulse tracking, fast switching sensors

Input devices supported:

• Proximity switches

• Limit switches

• Pushbuttons

• Pulse generators

Relay Output Specifications (16 Channels)

• Output type: electromechanical relay (Form A, SPST, normally open)

• Load rating: 2 A per channel

• Output power type: external AC or DC field supply required

• Switching characteristic: on/off only (no PWM or high-speed switching capability)

Typical loads:

• Solenoid valves

• Motor contactor coils

• Signal lamps

• General-purpose resistive or inductive loads

Relay isolation provides strong separation between field power and control logic circuits.

Processing and Control Features

• Embedded high-speed counting engine with multi-mode configuration

• 16-bit and 32-bit register support for extended count ranges

• Internal +24 VDC distribution for limited field device powering

• Configurable logic handling for flexible input interpretation

Memory and System Operation

• Flash memory: firmware and application storage

• Retentive RAM: capacitor-backed runtime data retention

• System architecture supports fast boot recovery and stable program retention under power interruption conditions

Mechanical Specifications

• Weight: 1.43 lb

• Compact 40-point integrated controller housing

• DIN rail or panel mounting via terminal base system

• Hinged terminal cover for wiring protection and maintenance access

Environmental Ratings

• Operating temperature: 0°C to 60°C

• Designed for enclosed industrial control enclosures

• Electrical isolation between field wiring and internal logic circuits

Typical Applications

• Packaging machinery control systems

• Conveyor and material handling systems

• Machine automation with relay-based load switching

• HVAC and pump control panels

• OEM equipment requiring mixed I/O control

FAQ

Can relay outputs support PWM or fast switching?
No. The outputs are mechanical relays and are intended for low-frequency switching only.

Does this PLC support high-speed counting?
Yes. It supports up to four high-speed counter configurations with 16-bit or 32-bit resolution.

Is external power required for outputs?
Yes. Relay outputs require an external AC or DC load supply.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
