Description

Product Description

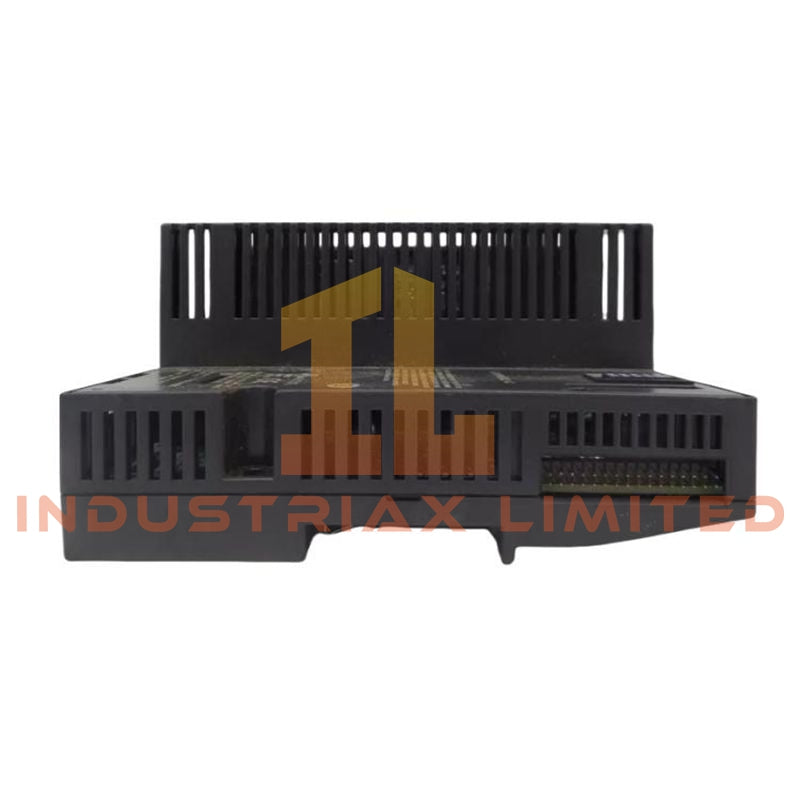

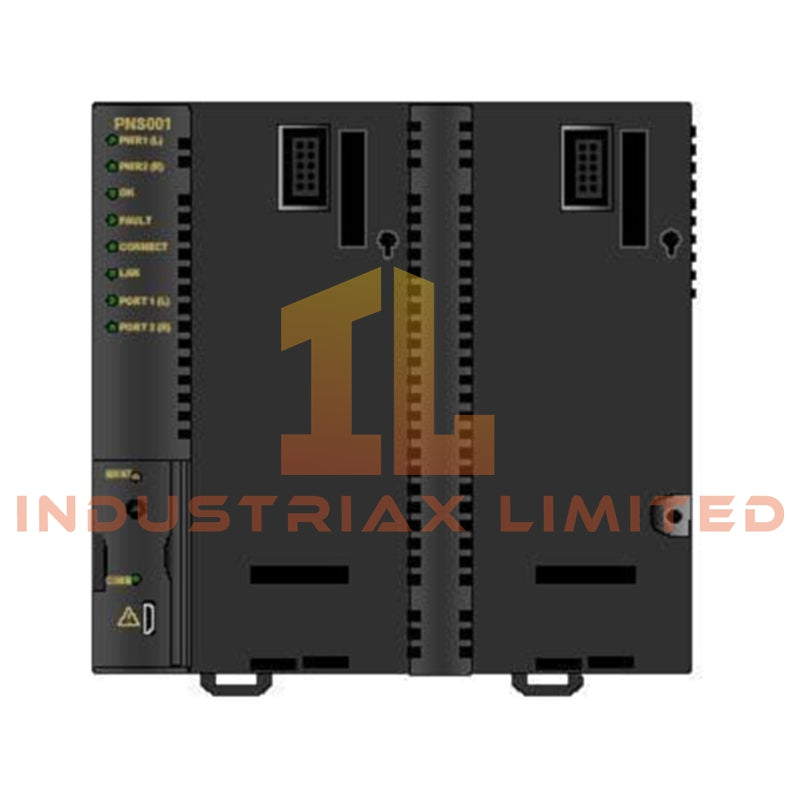

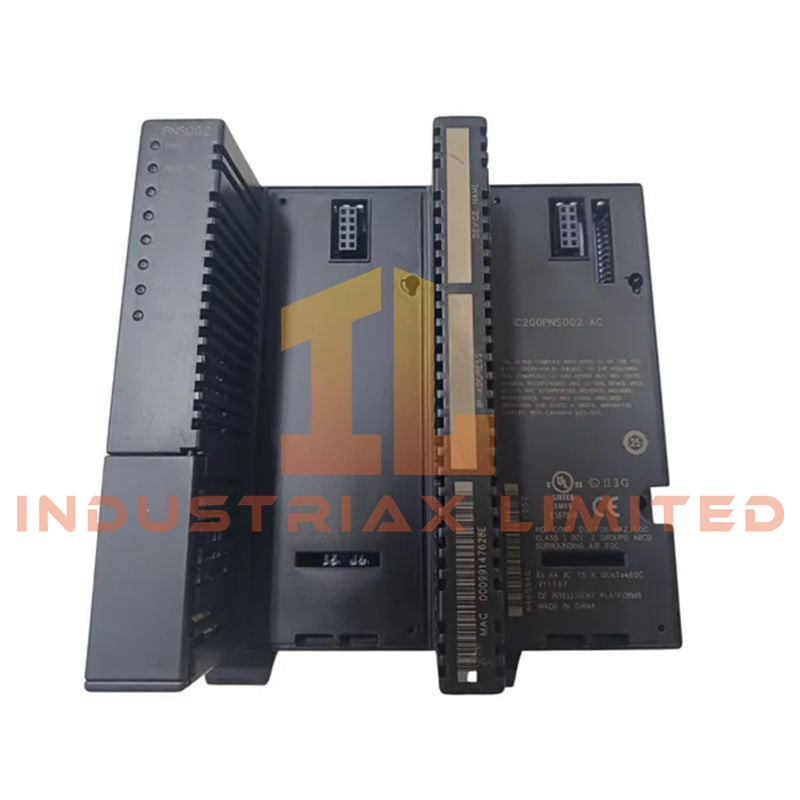

The IC200PNS002 PROFINET Scanner Module from GE’s VersaMax platform enables seamless integration of distributed I/O stations into PROFINET networks. Acting as a PROFINET IO-Device, the module continuously exchanges real-time data with an IO-Controller while managing local I/O modules and maintaining deterministic communication performance.

Designed for fiber-optic industrial networks, this unit supports high-speed data transmission, ring redundancy, and advanced diagnostics. It is particularly suited for applications requiring reliable communication in electrically noisy or long-distance environments.

Key Features

• Functions as a PROFINET IO-Device (Conformance Class A)

• Integrated fiber-optic interface for EMI-resistant communication

• Supports Media Redundancy Protocol (MRP) for ring topology resilience

• Configurable I/O update intervals for deterministic control

• Built-in diagnostics, alarms, and fault handling

• Redundant power capability for improved system uptime

• Automatic scanning and management of local VersaMax I/O modules

Technical Specifications

General

• Product Type: PROFINET Scanner Module

• Series: VersaMax

• Model: IC200PNS002

• Manufacturer: GE

• Country of Origin: United States

Network & Communication

• PROFINET Standard: Version 2.2, Class A IO-Device

• Physical Ports:

• 2 × 100 Mbps SC Duplex Multi-Mode Fiber (MMF)

• Supported Network Topologies: Line, Star, Ring (MRP Client)

• IP Addressing: CIDR-compatible (subnetting supported)

• MAC Address Allocation: 3 (dual external + internal interface)

• Update Cycle Time: Adjustable from 1 ms to 512 ms

Performance

• Full node scan of installed I/O modules

• Cyclic input data transmission to IO-Controller

• Output data reception and execution from controller

• Communication watchdog and fail-safe I/O fallback behavior

• Integrated alarm and diagnostic messaging

Electrical

• Supply Voltage: 5 VDC via backplane

• Current Consumption: Approx. 1.10 A

• Power Redundancy: Supported (hot-swap for inactive supply)

Physical

• Weight: 0.48 kg

• Service Port: Micro-USB (firmware updates only)

Environmental

• Operating Temperature:

• Standard: 0°C to +60°C

• Extended (variant dependent): −40°C to +70°C

• Hazardous Area Certification:

• Class I, Division 2

• ATEX II 3G (for IC200PNS002-AA)

I/O Capacity

• Maximum Modules per Station: 8

• Process Data Size:

• Input: up to 1440 bytes

• Output: up to 1440 bytes

Application Areas

This module is widely used in distributed automation systems where fiber-optic networking and deterministic communication are required, including:

• Discrete and process manufacturing lines

• Power generation and distribution systems

• Water and wastewater treatment plants

• Transportation and infrastructure control systems

FAQ

Q: What is the primary role of this module in a PROFINET network?
A: It operates as an IO-Device, exchanging cyclic I/O data with a PROFINET IO-Controller while managing local VersaMax I/O modules.

Q: Does the module support network redundancy?
A: Yes, it supports MRP (Media Redundancy Protocol) in client mode, enabling ring topology redundancy.

Q: Can it be used in harsh or hazardous environments?
A: The IC200PNS002-AA variant is certified for Class I Division 2 and ATEX Zone 2 environments, making it suitable for hazardous locations.

Q: Is copper Ethernet supported?
A: No, this model is equipped with fiber-optic SC ports only, designed for high-noise or long-distance installations.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
