Description

Overview

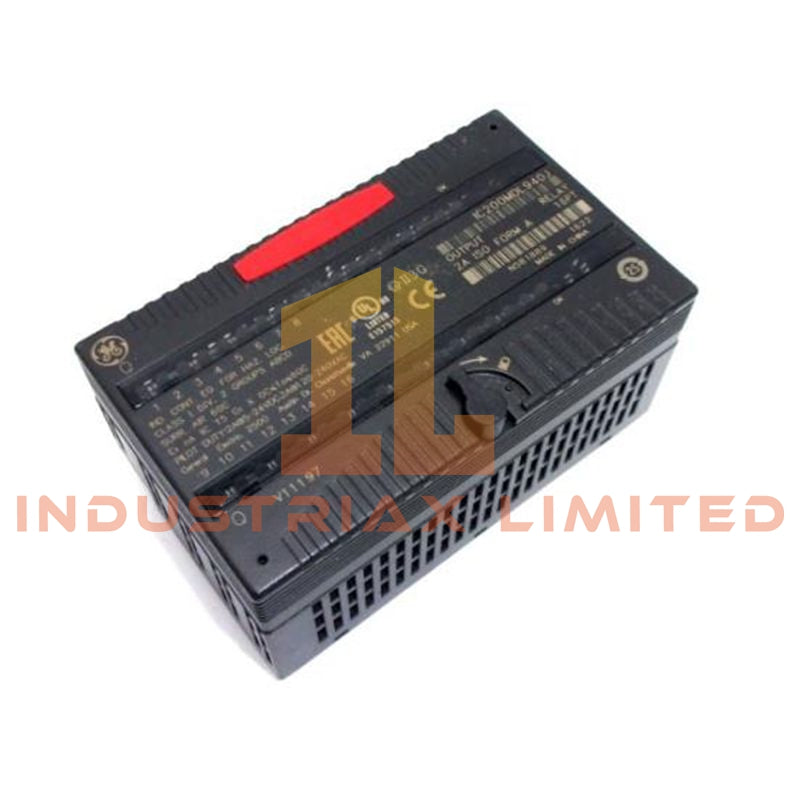

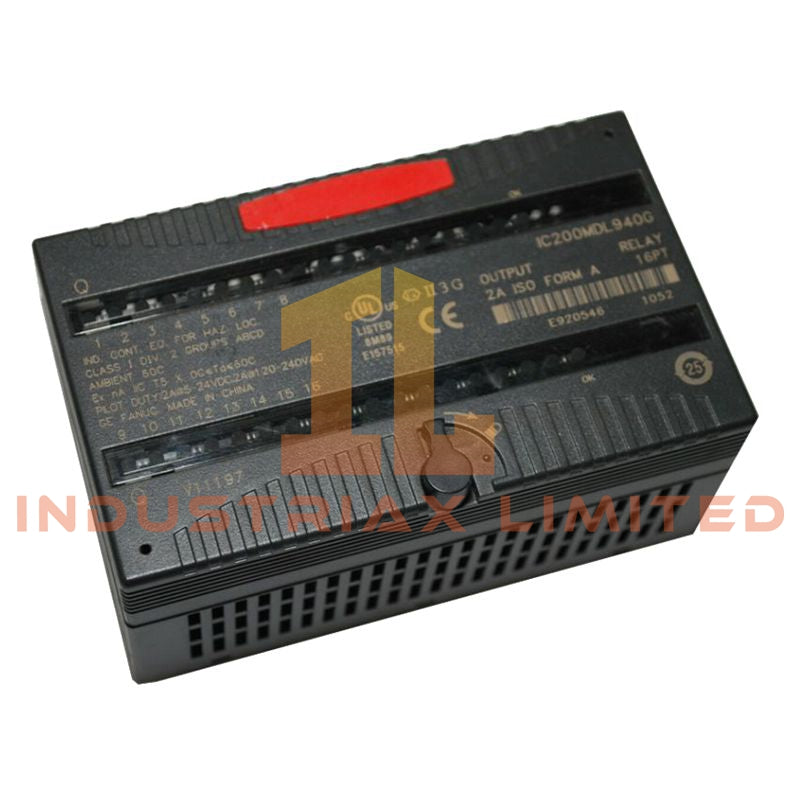

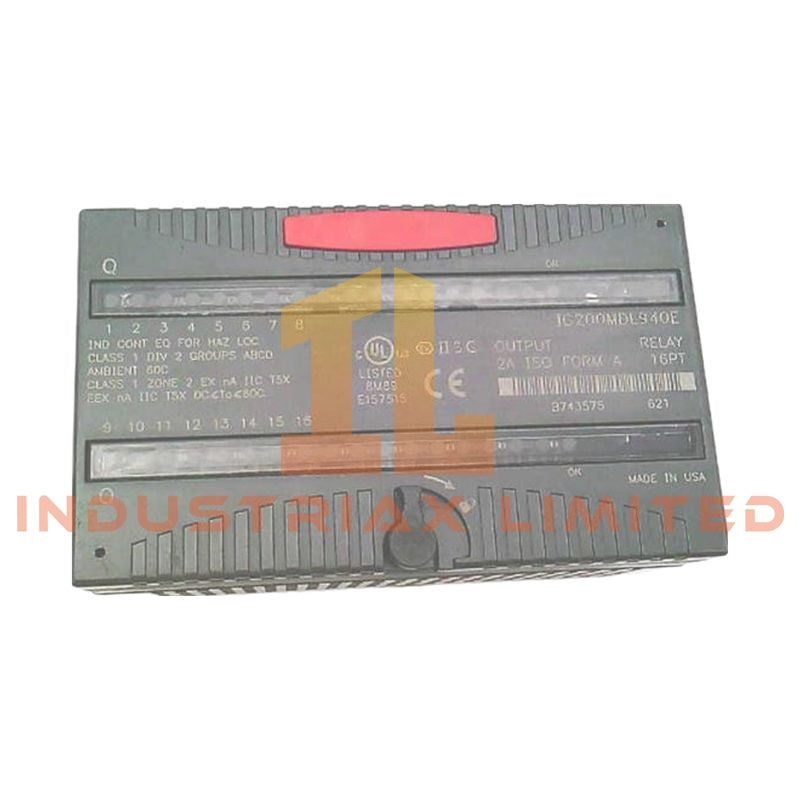

The IC200MDL940 is a VersaMax discrete output module engineered by GE Fanuc Emerson, designed for electromechanical switching of field devices in compact PLC systems. It provides sixteen independently isolated relay outputs suitable for both AC and DC load control.

This module is commonly implemented in applications requiring robust on/off control of external devices such as solenoids, indicator lamps, motor starters, and contactors.

Output Architecture

Each channel operates as an individual Form A normally open relay contact, allowing flexible load switching without shared channel dependencies.

• 16 independent relay output channels

• Form A (normally open) contact configuration

• Individual channel isolation

• Group-to-group electrical separation

• Silver-alloy contact material for improved wear resistance

Electrical Output Ratings

• Output voltage range:

• 0 to 125 VDC

• 0 to 265 VAC (47–63 Hz)

• Nominal supported voltages:

• 5 VDC / 24 VDC / 125 VDC

• 120 VAC / 240 VAC

• Maximum resistive load:

• 2 A per point (AC or low-voltage DC)

• 0.2 A for higher DC voltage range (31–125 VDC)

• Minimum load requirement: 10 mA

• Output voltage drop: ≤ 0.3 V

• Switching rate: up to 20 operations per minute

Performance Characteristics

• Typical relay response time: 10 ms ON / 10 ms OFF

• Designed for moderate-speed discrete switching applications

• Optimized for long mechanical life under resistive loading conditions

Isolation and Protection

• Channel-to-channel isolation: 250 VAC continuous

• Group isolation: 250 VAC continuous

• Logic-to-frame isolation: 1500 VAC for 60 seconds

• Designed for reduced cross-channel interference in high-density racks

• External suppression (snubbers or fuses) recommended for inductive loads

Power Requirements

• Backplane consumption: up to 490 mA at 5 VDC

• Powered directly through VersaMax backplane architecture

• No external field power required for relay actuation

Mechanical Construction

• Compact single-slot VersaMax module form factor

• Dimensions: 110 mm × 66.8 mm × 50 mm

• Weight: 1.12 lbs

• Designed for DIN rail-mounted VersaMax rack systems

• Plug-in installation with secure backplane engagement

Environmental Specifications

• Operating temperature: 0°C to 60°C

• Suitable for enclosed control cabinet installations

• Designed for electrically noisy industrial environments when properly grounded

Applications

• Solenoid and valve actuation systems

• Motor starter and contactor control

• Alarm and indicator signaling systems

• General-purpose discrete output switching

• Machine-level electromechanical control circuits

FAQ

Q1: Can this module switch inductive loads directly?
Yes, but external suppression devices are recommended for relay protection and extended contact life.

Q2: Are all outputs electrically independent?
Yes, each channel is individually isolated with additional group isolation.

Q3: Is it suitable for AC and DC loads simultaneously?
Yes, each relay channel supports both AC and DC within rated limits.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
