Description
Overview

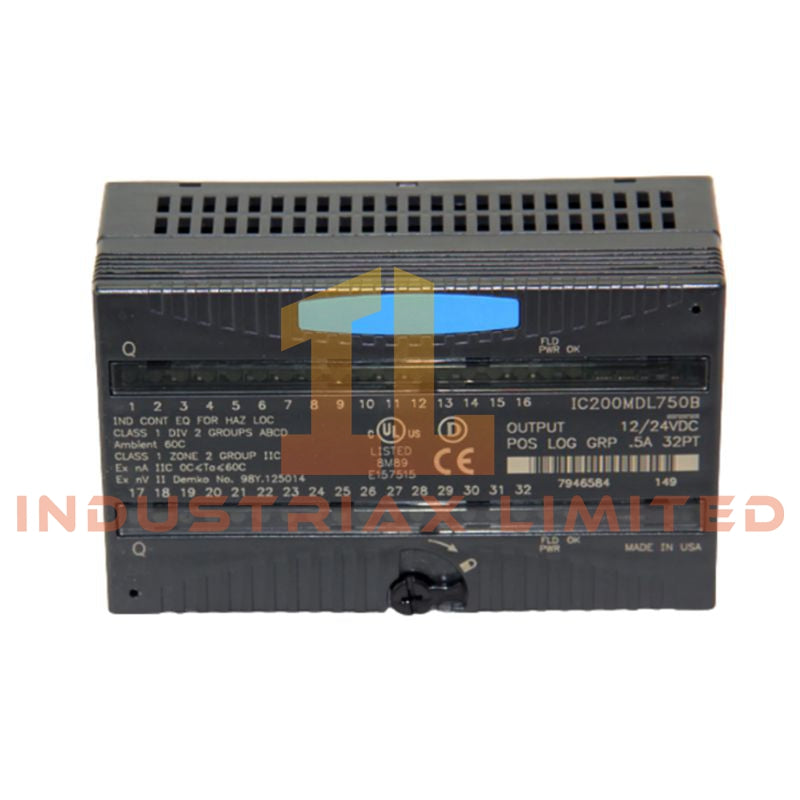

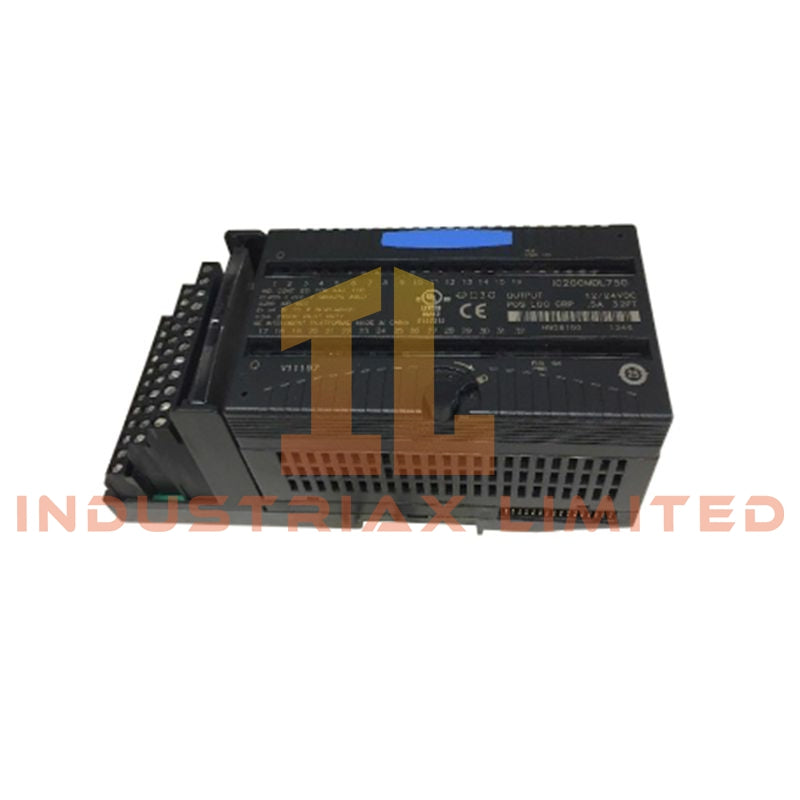

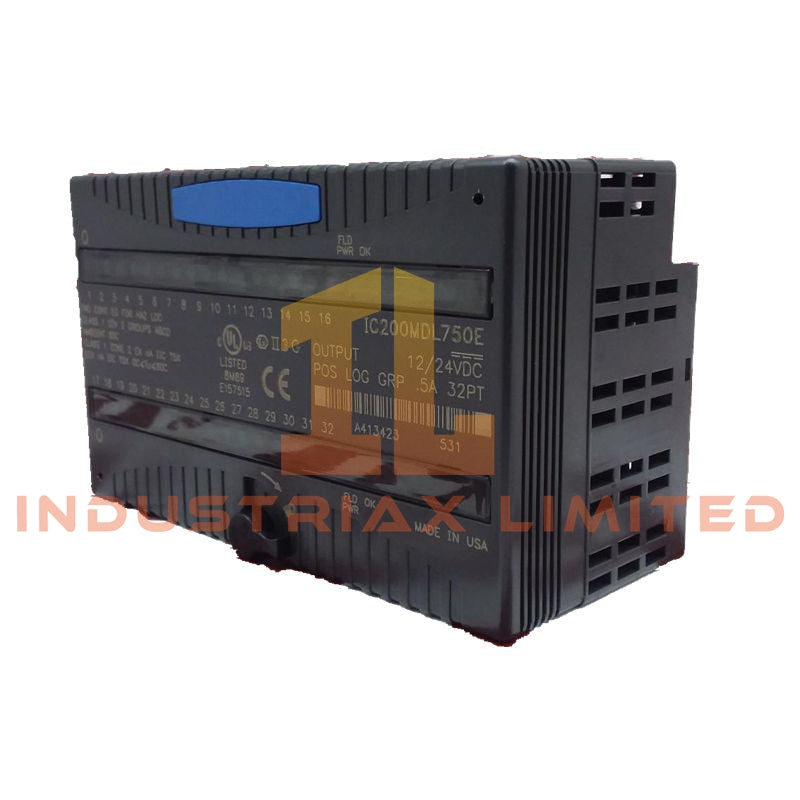

The IC200MDL750 is a high-density discrete output module designed for the GE Fanuc / Emerson VersaMax I/O system. It provides 32-channel sourcing (positive logic) DC outputs for distributed control applications requiring reliable switching of field devices such as solenoids, relays, indicators, and similar DC loads.
The module installs on VersaMax I/O carrier bases and communicates through the backplane while using an external field power supply for load energization.
Functional Architecture
The output structure is divided into two independent banks of 16 channels, allowing structured field wiring and load separation.
Key functional characteristics:
-
32 sourcing DC output channels
-
Positive logic high-side switching configuration
-
Two isolated 16-point output groups
-
Individual LED status indicators per channel
-
OK and Field Power diagnostic LEDs
-
Backplane-powered control logic with external field supply
Electrical Performance Specifications
-
Output Voltage Range: 10.2 to 30 VDC (12/24 VDC nominal systems)
-
Output Current: 0.5 A per channel (resistive load)
-
Inrush Current Capability: up to 2 A for 100 ms per point
-
Backplane Current Consumption: approximately 90 mA at 5 VDC
-
Switching Speed:
-
Turn ON: 0.2 ms
-
Turn OFF: 1.0 ms
-
Output Type: DC sourcing (positive logic only)
These parameters support fast-response discrete control in compact I/O architectures.
Isolation and Protection
-
Field-to-backplane isolation: 250 VAC continuous
-
Dielectric withstand: 1500 VAC for 1 minute
-
Group isolation between two 16-channel banks
-
No point-to-point isolation
Inductive loads should be externally suppressed using flyback diodes, RC snubbers, or equivalent protection methods to ensure long-term reliability.
Wiring and System Integration
-
Two field power groups with 16 outputs each
-
Shared DC+ and DC− terminals per group
-
External 12/24 VDC field power required
-
Designed for VersaMax DIN-rail carrier systems (IC200CHS series)
Environmental and Mechanical Data
-
Operating Temperature: 0 to 60°C
-
Mounting: DIN-rail via VersaMax I/O carrier base
-
Hazardous Area Rating: Class I, Division 2 (when installed per control drawings)
-
Weight: 0.29 lb
Diagnostics
-
32 individual channel LEDs for output status
-
OK LED indicating module health
-
FLD PWR LED indicating field power availability
These diagnostics support fast commissioning and fault identification in the field.
Application Scenarios
-
Solenoid valve control in process systems
-
Relay and contactor interposing
-
Industrial panel indicator control
-
Machine-level discrete output expansion
-
Distributed control system I/O architectures
FAQ
What type of loads can this module drive?
It supports DC resistive and inductive loads such as solenoids, relays, and indicator lamps.
Does it require external power?
Yes, a 12/24 VDC external field power supply is required for operation.
Is it suitable for hazardous environments?
It is rated for Class I, Division 2 installations when applied according to Emerson installation guidelines.
