Product Description

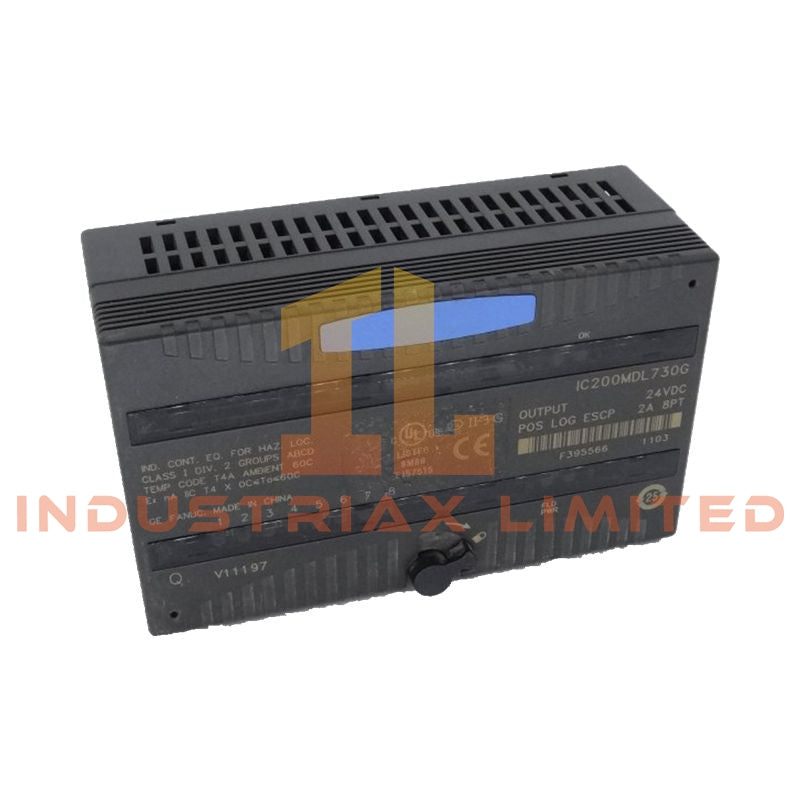

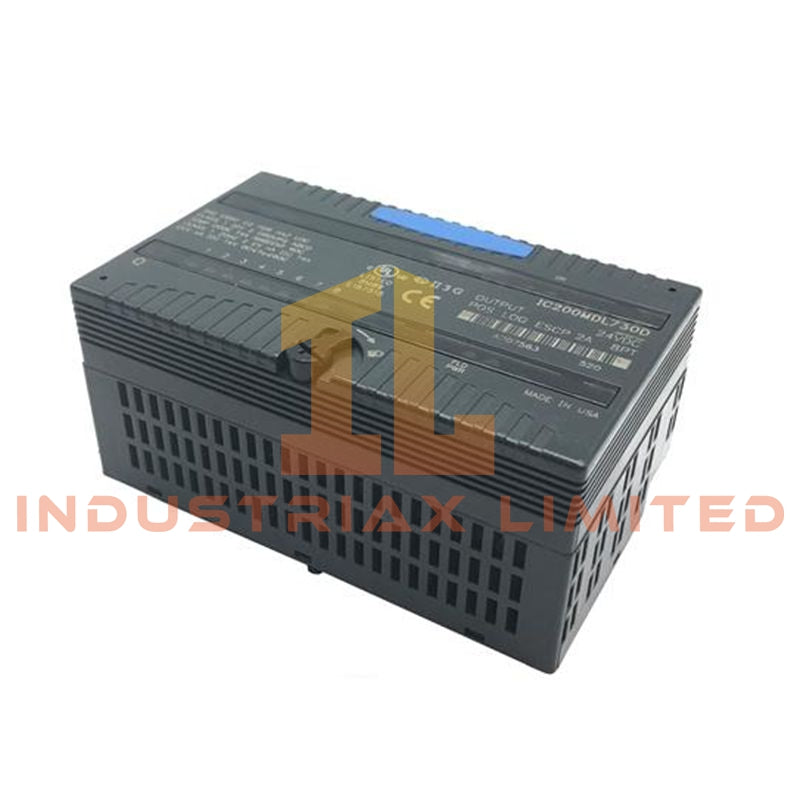

The IC200MDL730 from GE Fanuc (Emerson) is an 8-channel 24 VDC discrete output module, designed for reliable control of field devices in industrial automation systems. It supports positive‑logic (sourcing) outputs, allowing the module to supply current directly to loads such as relays, solenoids, indicator lamps, and small actuators.
Each output point is protected against short circuits and overcurrent conditions, ensuring both module and field wiring safety. Integrated LEDs for every channel, plus OK and Field Power (FLD PWR) indicators, provide fast diagnostics and operational status monitoring.

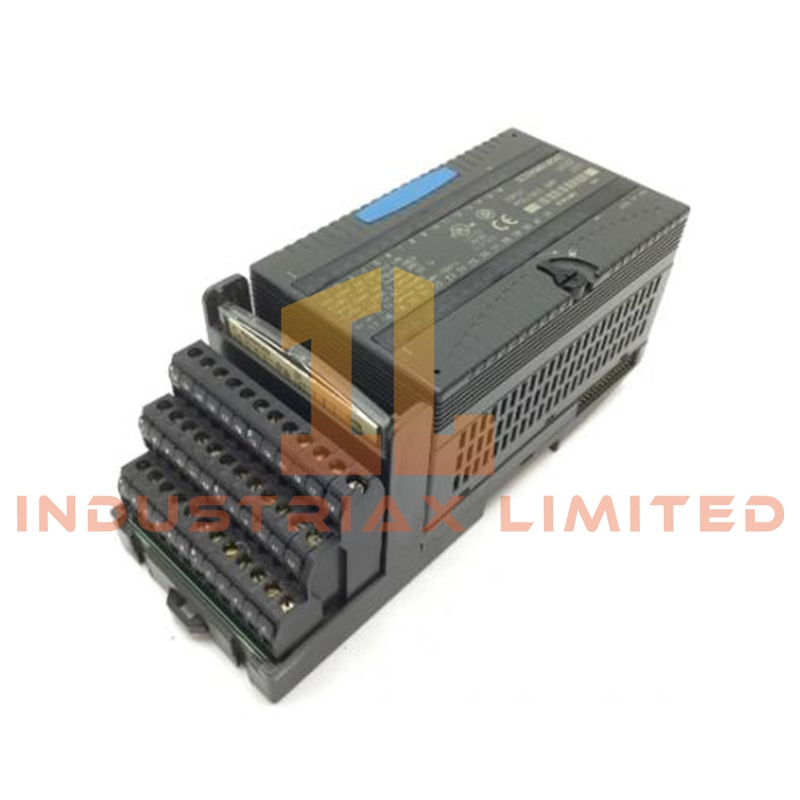

The module mounts on any VersaMax I/O carrier and supports both DIN‑rail and panel installation, offering flexible deployment in compact control cabinets.
Output Channel Configuration
-
Total outputs: 8 points, single group
-
Output type: Positive‑logic, sourcing
-
Load current capacity: 2.0 A per output
-
Nominal output voltage: 24 VDC (range 17.5–30 VDC)
-
Maximum switching frequency: 10 Hz
Protection & Reliability
-
Short-circuit protection on each output
-
Overcurrent protection
-
Fault indication via amber LED
-
Detected faults reported to VersaMax CPU
These features ensure safe operation and quick fault identification in demanding industrial environments.
Power & Electrical Requirements
The module operates entirely from the VersaMax backplane for logic power, while driving external loads from a dedicated 24 VDC field supply.
Indicators & Diagnostics
-
One LED per output channel for status monitoring
-
OK LED for module health
-
FLD PWR LED for field power availability
-
Amber fault LED for overcurrent or short circuit
These visual indicators simplify troubleshooting and maintenance.
Mechanical & Environmental Specifications
-
Dimensions: 110 × 66.8 × 50 mm
-
Weight: 0.38 kg
-
Mounting: VersaMax I/O carriers (DIN-rail or panel)
-
Operating temperature: 0°C to 60°C
-
Storage temperature: –40°C to +70°C
-
Relative humidity: 5%–95% non-condensing
Key Features
-
8 discrete sourcing outputs at 24 VDC
-
High load handling: 2 A per point
-
Built-in short-circuit and overcurrent protection
-
Individual point LEDs, plus OK and FLD PWR indicators
-
Fast response: ~0.5 ms
-
Compact VersaMax form factor
Applications
-
Control of relays, solenoids, and lamps
-
Small actuator and motor control
-
Machine automation requiring reliable digital outputs
-
Retrofit or expansion of existing VersaMax systems
FAQ
Q: Can this module drive inductive loads?
A: Yes, but external protection (flyback diodes or snubbers) is recommended for inductive devices.
Q: Does the module require external power for logic operation?
A: No. Logic power is supplied via the VersaMax backplane; external 24 VDC is only needed for the outputs.
Q: What happens if a short circuit occurs?
A: The affected output is protected by the built-in overcurrent circuit, and an amber fault LED is illuminated.
